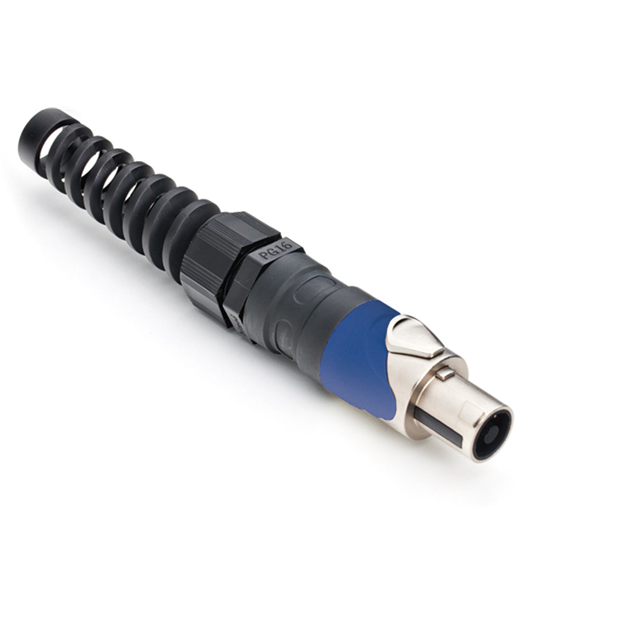

SP-2-FNL

Active

AMPHENOL AUDIO

2 POLE LOUDSPEAKER CABLE CONNECTORS, PG GLAND STRAIN RELIEF, HIGH POWER SCREW CONTACTS INCLUDED, METAL, NICKEL FINISH /BOX ROHS

Search across all available documentation for this part.

Active

AMPHENOL AUDIO

2 POLE LOUDSPEAKER CABLE CONNECTORS, PG GLAND STRAIN RELIEF, HIGH POWER SCREW CONTACTS INCLUDED, METAL, NICKEL FINISH /BOX ROHS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SP-2-FNL	SP-2 Series

Applications	Audio	Audio
Backshell Material, Plating	Nylon 6, Polyamide (PA6), Glass Filled	Nylon 6, Polyamide (PA6), Glass Filled
Cable Opening [diameter]	0.354 in, 0.551 in	0.354 - 0.551 in
Cable Opening [diameter]	9 mm, 14 mm	9 - 14 mm
Color	Silver	Silver
Connector Type	Plug, Non-Gendered	Plug, Non-Gendered
Contact Finish - Mating	Silver	Silver
Contact Material	Brass	Brass
Current Rating (Amps)	30 A	30 A
Fastening Type	Latch Lock	Latch Lock
Features	Strain Relief, Backshell	Backshell, Strain Relief
Ingress Protection	IP54 - Dust Protected, Water Resistant	IP54 - Dust Protected, Water Resistant
Insert Material	Glass Filled, Polyamide (PA66), Nylon 6/6	Glass Filled, Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 HB	UL94 HB
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	2	2
Operating Temperature [Max]	75 ░C	75 ░C
Operating Temperature [Min]	-25 °C	-25 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal, Plastic
Shell Finish	Nickel	Nickel
Shell Material	Zinc Die Cast	Zinc Die Cast, Polyamide (PA66), Nylon 6/6, Glass Filled
Shielding	Unshielded	Unshielded
Termination	Screw	Screw

CONN CIRC PLUG 2POS SILVER SCREW

Part	Contact Finish - Mating	Features	Shell Finish	Termination	Shell Material	Ingress Protection	Fastening Type	Orientation	Number of Positions	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Color	Primary Material	Shielding	Contact Material	Material Flammability Rating	Insert Material	Applications	Current Rating (Amps)	Cable Opening [diameter]	Cable Opening [diameter]	Backshell Material, Plating
AMPHENOL AUDIO SP-2-FN	Silver	Backshell	Nickel	Screw	Zinc Die Cast	IP54 - Dust Protected, Water Resistant	Latch Lock	Keyed	2	Plug, Non-Gendered	-25 °C	75 ░C	Free Hanging (In-Line)	Silver	Metal
AMPHENOL AUDIO SP-2-FNL	Silver	Backshell, Strain Relief	Nickel	Screw	Zinc Die Cast	IP54 - Dust Protected, Water Resistant	Latch Lock	Keyed	2	Plug, Non-Gendered	-25 °C	75 ░C	Free Hanging (In-Line)	Silver	Metal	Unshielded	Brass	UL94 HB	Glass Filled, Nylon 6/6, Polyamide (PA66)	Audio	30 A	0.354 in, 0.551 in	9 mm, 14 mm	Glass Filled, Nylon 6, Polyamide (PA6)
AMPHENOL AUDIO SP-2-F	Silver	Backshell		Screw	Polyamide (PA66), Nylon 6/6, Glass Filled	IP54 - Dust Protected, Water Resistant	Latch Lock	Keyed	2	Plug, Non-Gendered	-25 °C	75 ░C	Free Hanging (In-Line)		Plastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 12.40
Newark	Each	100	$ 12.75
		250	$ 11.64

General part information

2 Position Circular Connector Plug, Non-Gendered Screw
