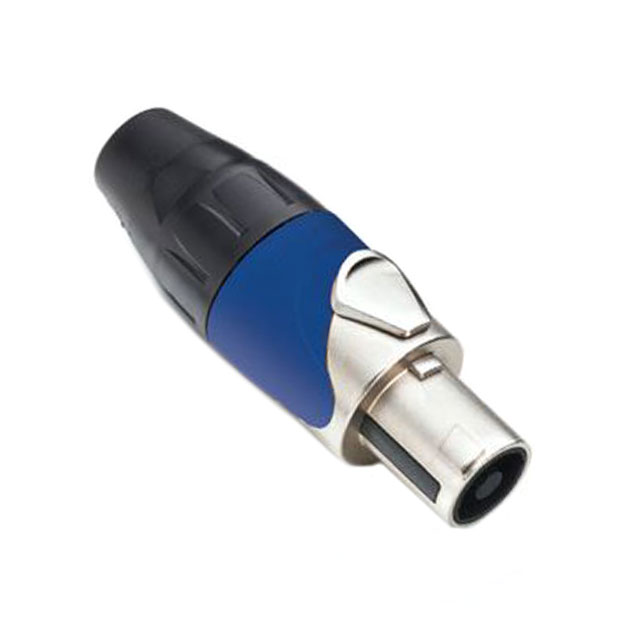

SP-2-FN

Active

AMPHENOL AUDIO

CONN CIRC PLUG 2POS SILVER SCREW

Search across all available documentation for this part.

Active

AMPHENOL AUDIO

CONN CIRC PLUG 2POS SILVER SCREW

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SP-2-FN	SP-2 Series

Applications	-	Audio
Backshell Material, Plating	-	Nylon 6, Polyamide (PA6), Glass Filled
Cable Opening	-	0.354 - 0.551 in
Cable Opening	-	9 - 14 mm
Color	Silver	Silver
Connector Type	Plug, Non-Gendered	Plug, Non-Gendered
Contact Finish - Mating	Silver	Silver
Contact Material	-	Brass
Current Rating (Amps)	-	30 A
Fastening Type	Latch Lock	Latch Lock
Features	Backshell	Backshell, Strain Relief
Ingress Protection	IP54 - Dust Protected, Water Resistant	IP54 - Dust Protected, Water Resistant
Insert Material	-	Glass Filled, Polyamide (PA66), Nylon 6/6
Material Flammability Rating	-	UL94 HB
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	2	2
Operating Temperature [Max]	75 ░C	75 ░C
Operating Temperature [Min]	-25 °C	-25 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal, Plastic
Shell Finish	Nickel	Nickel
Shell Material	Zinc Die Cast	Zinc Die Cast, Polyamide (PA66), Nylon 6/6, Glass Filled
Shielding	-	Unshielded
Termination	Screw	Screw

CONN CIRC PLUG 2POS SILVER SCREW

Part	Contact Finish - Mating	Features	Shell Finish	Termination	Shell Material	Ingress Protection	Fastening Type	Orientation	Number of Positions	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Color	Primary Material	Shielding	Contact Material	Material Flammability Rating	Insert Material	Applications	Current Rating (Amps)	Cable Opening [diameter]	Cable Opening [diameter]	Backshell Material, Plating
AMPHENOL AUDIO SP-2-FN	Silver	Backshell	Nickel	Screw	Zinc Die Cast	IP54 - Dust Protected, Water Resistant	Latch Lock	Keyed	2	Plug, Non-Gendered	-25 °C	75 ░C	Free Hanging (In-Line)	Silver	Metal
AMPHENOL AUDIO SP-2-FNL	Silver	Backshell, Strain Relief	Nickel	Screw	Zinc Die Cast	IP54 - Dust Protected, Water Resistant	Latch Lock	Keyed	2	Plug, Non-Gendered	-25 °C	75 ░C	Free Hanging (In-Line)	Silver	Metal	Unshielded	Brass	UL94 HB	Glass Filled, Nylon 6/6, Polyamide (PA66)	Audio	30 A	0.354 in, 0.551 in	9 mm, 14 mm	Glass Filled, Nylon 6, Polyamide (PA6)
AMPHENOL AUDIO SP-2-F	Silver	Backshell		Screw	Polyamide (PA66), Nylon 6/6, Glass Filled	IP54 - Dust Protected, Water Resistant	Latch Lock	Keyed	2	Plug, Non-Gendered	-25 °C	75 ░C	Free Hanging (In-Line)		Plastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Plug, Non-Gendered Screw
