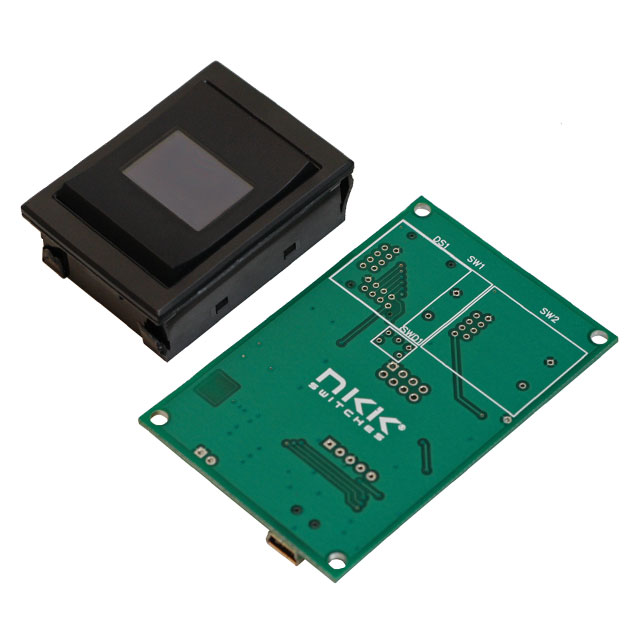

IS-ENG-KIT-8-R

Active

NKK Switches

DEVELOPMENT KIT, OLED PROGRAMMABLE ROCKER SWITCHES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IS-ENG-KIT-8-R

Active

NKK Switches

DEVELOPMENT KIT, OLED PROGRAMMABLE ROCKER SWITCHES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IS-ENG-KIT-8-R

Embedded	True
Function	Switches with Programmable Display
Supplied Contents	Board(s)
Type	Electromechanical
Utilized IC / Part	IS18WWC1W

IS-ENG Series

Part	Contents	Function	Supplied Contents	Type	Utilized IC / Part
NKK Switches IS-ENG-KIT-5-DC	Board(s)	Switches with Programmable Display	Board(s)	Electromechanical
NKK Switches IS-ENG-KIT-6-SH		Switches with Programmable Display	Board(s)	Electromechanical	IS15EBFP4RGB IS15EBFP4RGB-09YN
NKK Switches IS-ENG-KIT-7-FF	Board(s)	Switches with Programmable Display	Board(s)	Electromechanical	ISF15ACP4
NKK Switches IS-ENG-KIT-6-DH	Board(s)	Switches with Programmable Display	Board(s)	Electromechanical	IS01EBFRGB IS15EBFP4RGB-09YN
NKK Switches IS-ENG-KIT-6-CH		Switches with Programmable Display	Board(s)	Electromechanical	IS15EBFP4RGB-09YN IS15ESBFP4RGB
NKK Switches IS-ENG-KIT-8-R		Switches with Programmable Display	Board(s)	Electromechanical	IS18WWC1W
NKK Switches IS-ENG-KIT-5-SC	Board(s)	Switches with Programmable Display	Board(s)	Electromechanical	IS15BBFP4RGB IS15BSBFP4RGB
NKK Switches IS-ENG-KIT-5-BC	Board(s)	Switches with Programmable Display	Board(s)	Electromechanical	IS15BAFP4CF IS15BSAFP4CF

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 119.00
Newark	Each	1	$ 219.92
		5	$ 187.55
		10	$ 179.93
		25	$ 171.36
		50	$ 157.08
		100	$ 135.19

Description

General part information

IS-ENG Series

SmartSwitch® engineering development kit serve as a starting point for engineers to test and design integration of the SmartSwitch into a variety of applications. The S02L1 controller is used for OLED SmartSwitches. The kit includes schematics, firmware, software source codes, on-board memory and a USB connection. The schematic and source codes are provided in C language.
