IS-ENG-KIT-6-SH
ActiveDEVELOPMENT KIT, LCD PROGRAMMABLE RGB STANDARD/HYBRID SWITCHES
Deep-Dive with AI
Search across all available documentation for this part.
IS-ENG-KIT-6-SH
ActiveDEVELOPMENT KIT, LCD PROGRAMMABLE RGB STANDARD/HYBRID SWITCHES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IS-ENG-KIT-6-SH |
|---|---|
| Embedded | True |
| Function | Switches with Programmable Display |
| Supplied Contents | Board(s) |
| Type | Electromechanical |
| Utilized IC / Part | IS15EBFP4RGB-09YN, IS15EBFP4RGB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
IS-ENG Series

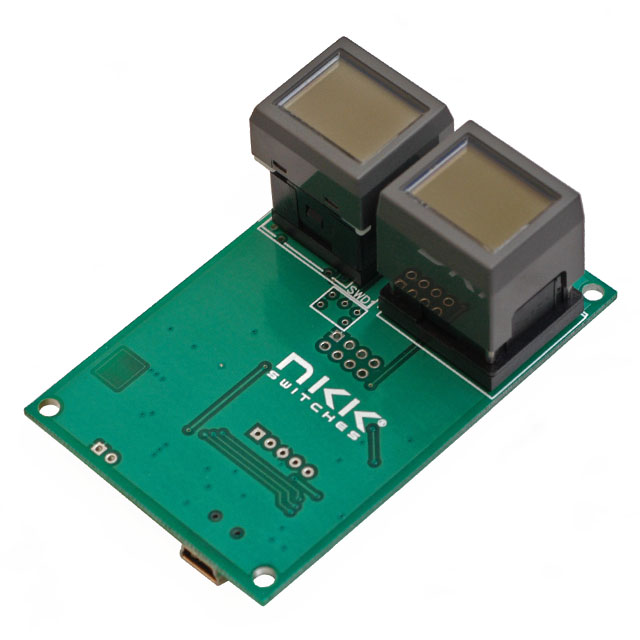

The IS-ENG-KIT-6-SH from NKK Switches is a SmartSwitch® engineering development kit. It controls two LCD 64x32 SmartSwitches/SmartDisplays. This simplified engineering development kit will serve as a starting point for engineers to test and design integration of the SmartSwitch into a variety of applications. The S02G1 controller is used for LCD 64x32 engineering kits. The kit includes schematics, firmware, software source codes, on-board memory and a USB connection. The schematic and source codes are provided in C language.
