TMM-104-02-SM-S
ActiveSamtec Inc.
2MM TERMINAL STRIP
Deep-Dive with AI
Search across all available documentation for this part.
TMM-104-02-SM-S
ActiveSamtec Inc.
2MM TERMINAL STRIP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TMM-104-02-SM-S |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Length - Post | 0.118 in |
| Contact Length - Post | 3 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3.2 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 1.5 mm |
| Insulation Height | 0.059 " |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Through Hole |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Overall Contact Length | 8.2 mm |
| Overall Contact Length | 0.323 in |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Shrouding | Unshrouded |
| Style | Board to Board, Cable |
| Termination | Solder |
TMM-104 Series
...
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Height | Insulation Height | Pitch - Mating [x] | Pitch - Mating [x] | Contact Finish - Mating | Contact Material | Contact Finish - Post | Insulation Material | Contact Type | Overall Contact Length | Overall Contact Length | Contact Length - Post | Contact Length - Post | Fastening Type | Number of Rows | Number of Positions | Style | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shrouding | Current Rating (Amps) | Contact Shape | Termination | Number of Positions Loaded | Mounting Type | Connector Type | Insulation Color | Contact Length - Mating | Contact Length - Mating | Material Flammability Rating | Row Spacing - Mating | Row Spacing - Mating | Features | Contact Length - Mating [x] | Contact Length - Mating [x] | Contact Finish Thickness - Post | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | -55 °C | 125 °C | 1.5 mm | 0.059 " | 0.079 in | 2 mm | Gold | Phosphor Bronze | Tin | Liquid Crystal Polymer (LCP) | Male Pin | 8.2 mm | 0.323 in | 0.118 in | 3 mm | Push-Pull | 1 | 4 | Board to Board Cable | 30 Áin | 0.76 Ám | Unshrouded | 3.2 A | Square | Solder | All | Through Hole | Header | Black | ||||||||||
Samtec Inc. | -55 °C | 125 °C | 1.5 mm | 0.059 " | 0.079 in | 2 mm | Gold | Phosphor Bronze | Tin | Liquid Crystal Polymer (LCP) | Male Pin | Push-Pull | 1 | 4 | Board to Board Cable | 30 Áin | 0.76 Ám | Unshrouded | 3.2 A | Square | Solder | All | Surface Mount | Header | Black | 3.2 mm | 0.126 " | UL94 V-0 | |||||||||||
Samtec Inc. | -55 °C | 125 °C | 1.5 mm | 0.059 " | 0.079 in | 2 mm | Gold | Phosphor Bronze | Tin | Liquid Crystal Polymer (LCP) | Male Pin | 8.2 mm | 0.323 in | 0.118 in | 3 mm | Push-Pull | 2 | 8 | Board to Board Cable | 10 çin | 0.25 çm | Unshrouded | 3.2 A | Square | Solder | All | Through Hole | Header | Black | 0.079 in | 2 mm | ||||||||
Samtec Inc. | -55 °C | 125 °C | 1.5 mm | 0.059 " | 0.079 in | 2 mm | Gold | Phosphor Bronze | Tin | Liquid Crystal Polymer (LCP) | Male Pin | Push-Pull | 2 | 8 | Board to Board Cable | 3 µin | 0.076 µm | Unshrouded | 3.2 A | Square | Solder | All | Surface Mount | Header | Black | 3.2 mm | 0.126 " | UL94 V-0 | 0.079 in | 2 mm | |||||||||
Samtec Inc. | -55 °C | 125 °C | 1.5 mm | 0.059 " | 0.079 in | 2 mm | Gold | Phosphor Bronze | Tin | Liquid Crystal Polymer (LCP) | Male Pin | Push-Pull | 2 | 8 | Board to Board Cable | 30 Áin | 0.76 Ám | Unshrouded | 3.2 A | Square | Solder | All | Surface Mount | Header | Black | UL94 V-0 | 0.079 in | 2 mm | Pick and Place | 1.9 mm | 0.075 in | ||||||||
Samtec Inc. | -55 °C | 125 °C | 1.5 mm | 0.059 " | 0.079 in | 2 mm | Gold | Phosphor Bronze | Gold | Liquid Crystal Polymer (LCP) | Male Pin | Push-Pull | 2 | 8 | Board to Board Cable | 20 µin | 0.51 µm | Unshrouded | 3.2 A | Square | Solder | All | Surface Mount | Header | Black | UL94 V-0 | 0.079 in | 2 mm | 1.9 mm | 0.075 in | 3 µin | 0.076 µm | |||||||
Samtec Inc. | -55 °C | 125 °C | 1.5 mm | 0.059 " | 0.079 in | 2 mm | Gold | Phosphor Bronze | Gold | Liquid Crystal Polymer (LCP) | Male Pin | Push-Pull | 2 | 8 | Board to Board Cable | 20 µin | 0.51 µm | Unshrouded | 3.2 A | Square | Solder | All | Surface Mount | Header | Black | 1.65 mm | 0.065 in | UL94 V-0 | 0.079 in | 2 mm | Pick and Place | 3 µin | 0.076 µm | ||||||
Samtec Inc. | -55 °C | 125 °C | 1.5 mm | 0.059 " | 0.079 in | 2 mm | Gold | Phosphor Bronze | Gold | Liquid Crystal Polymer (LCP) | Male Pin | Push-Pull | 1 | 4 | Board to Board Cable | 20 µin | 0.51 µm | Unshrouded | 3.2 A | Square | Solder | All | Surface Mount | Header | Black | 3.2 mm | 0.126 " | UL94 V-0 | Pick and Place | 3 µin | 0.076 µm | ||||||||
Samtec Inc. | -55 °C | 105 ░C | 1.5 mm | 0.059 " | 0.079 in | 2 mm | Phosphor Bronze | Tin | Liquid Crystal Polymer (LCP) | Male Pin | Push-Pull | 1 | 4 | Board to Board Cable | Unshrouded | 3.2 A | Square | Solder | All | Surface Mount | Header | Black | UL94 V-0 | 1.9 mm | 0.075 in | ||||||||||||||
Samtec Inc. | -55 °C | 125 °C | 1.5 mm | 0.059 " | 0.079 in | 2 mm | Gold | Phosphor Bronze | Gold | Liquid Crystal Polymer (LCP) | Male Pin | Push-Pull | 2 | 8 | Board to Board Cable | 20 µin | 0.51 µm | Unshrouded | 3.2 A | Square | Solder | All | Surface Mount | Header | Black | 1.65 mm | 0.065 in | UL94 V-0 | 0.079 in | 2 mm | 3 µin | 0.076 µm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.96 | |
Description
General part information
TMM-104 Series

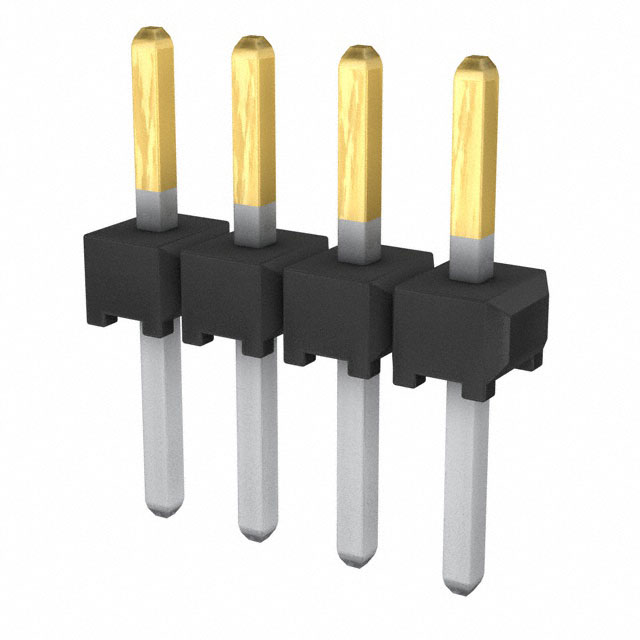

Connector Header Through Hole 4 position 0.079" (2.00mm)
