TMM-104-01-G-S-SM-P-TR

Active

Samtec Inc.

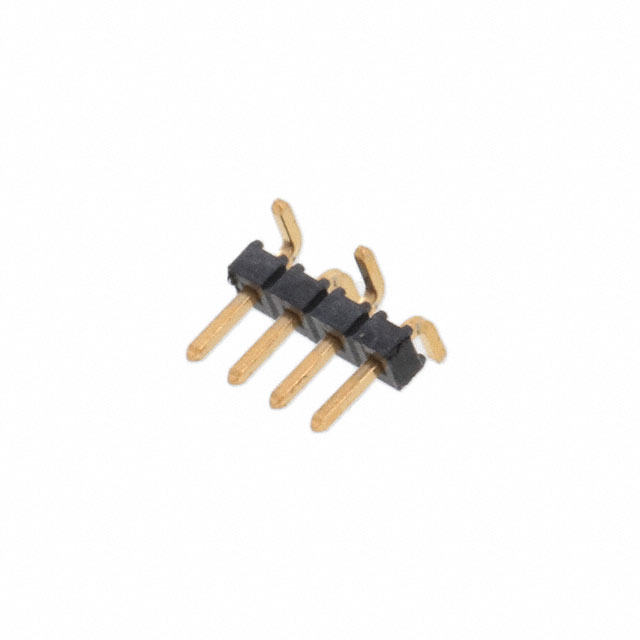

CONN HEADER SMD 4POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTMM Series Other Related Documents 03 Low Profile Tiger Eye™ Header Strips, 2.00 mm Pitch +3

TMM-104-01-G-S-SM-P-TR

Active

Samtec Inc.

CONN HEADER SMD 4POS 2MM

Deep-Dive with AI

DocumentsTMM Series Other Related Documents 03 Low Profile Tiger Eye™ Header Strips, 2.00 mm Pitch +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TMM-104-01-G-S-SM-P-TR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Mating	3.2 mm
Contact Length - Mating	0.126 "
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.2 A
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	1.5 mm
Insulation Height	0.059 "
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

TMM-104 Series

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Mating	Contact Material	Contact Finish - Post	Insulation Material	Contact Type	Overall Contact Length	Overall Contact Length	Contact Length - Post	Contact Length - Post	Fastening Type	Number of Rows	Number of Positions	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Current Rating (Amps)	Contact Shape	Termination	Number of Positions Loaded	Mounting Type	Connector Type	Insulation Color	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Features	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. TMM-104-02-SM-S	-55 °C	125 °C	1.5 mm	0.059 "	0.079 in	2 mm	Gold	Phosphor Bronze	Tin	Liquid Crystal Polymer (LCP)	Male Pin	8.2 mm	0.323 in	0.118 in	3 mm	Push-Pull	1	4	Board to Board Cable	30 Áin	0.76 Ám	Unshrouded	3.2 A	Square	Solder	All	Through Hole	Header	Black
Samtec Inc. TMM-104-01-S-S-SM	-55 °C	125 °C	1.5 mm	0.059 "	0.079 in	2 mm	Gold	Phosphor Bronze	Tin	Liquid Crystal Polymer (LCP)	Male Pin					Push-Pull	1	4	Board to Board Cable	30 Áin	0.76 Ám	Unshrouded	3.2 A	Square	Solder	All	Surface Mount	Header	Black	3.2 mm	0.126 "	UL94 V-0
Samtec Inc. TMM-104-02-L-D	-55 °C	125 °C	1.5 mm	0.059 "	0.079 in	2 mm	Gold	Phosphor Bronze	Tin	Liquid Crystal Polymer (LCP)	Male Pin	8.2 mm	0.323 in	0.118 in	3 mm	Push-Pull	2	8	Board to Board Cable	10 çin	0.25 çm	Unshrouded	3.2 A	Square	Solder	All	Through Hole	Header	Black				0.079 in	2 mm
Samtec Inc. TMM-104-01-FM-D-SM	-55 °C	125 °C	1.5 mm	0.059 "	0.079 in	2 mm	Gold	Phosphor Bronze	Tin	Liquid Crystal Polymer (LCP)	Male Pin					Push-Pull	2	8	Board to Board Cable	3 µin	0.076 µm	Unshrouded	3.2 A	Square	Solder	All	Surface Mount	Header	Black	3.2 mm	0.126 "	UL94 V-0	0.079 in	2 mm
Samtec Inc. TMM-104-04-S-D-SM-P	-55 °C	125 °C	1.5 mm	0.059 "	0.079 in	2 mm	Gold	Phosphor Bronze	Tin	Liquid Crystal Polymer (LCP)	Male Pin					Push-Pull	2	8	Board to Board Cable	30 Áin	0.76 Ám	Unshrouded	3.2 A	Square	Solder	All	Surface Mount	Header	Black			UL94 V-0	0.079 in	2 mm	Pick and Place	1.9 mm	0.075 in
Samtec Inc. TMM-104-04-G-D-SM	-55 °C	125 °C	1.5 mm	0.059 "	0.079 in	2 mm	Gold	Phosphor Bronze	Gold	Liquid Crystal Polymer (LCP)	Male Pin					Push-Pull	2	8	Board to Board Cable	20 µin	0.51 µm	Unshrouded	3.2 A	Square	Solder	All	Surface Mount	Header	Black			UL94 V-0	0.079 in	2 mm		1.9 mm	0.075 in	3 µin	0.076 µm
Samtec Inc. TMM-104-05-G-D-SM-P	-55 °C	125 °C	1.5 mm	0.059 "	0.079 in	2 mm	Gold	Phosphor Bronze	Gold	Liquid Crystal Polymer (LCP)	Male Pin					Push-Pull	2	8	Board to Board Cable	20 µin	0.51 µm	Unshrouded	3.2 A	Square	Solder	All	Surface Mount	Header	Black	1.65 mm	0.065 in	UL94 V-0	0.079 in	2 mm	Pick and Place			3 µin	0.076 µm
Samtec Inc. TMM-104-01-G-S-SM-P-TR	-55 °C	125 °C	1.5 mm	0.059 "	0.079 in	2 mm	Gold	Phosphor Bronze	Gold	Liquid Crystal Polymer (LCP)	Male Pin					Push-Pull	1	4	Board to Board Cable	20 µin	0.51 µm	Unshrouded	3.2 A	Square	Solder	All	Surface Mount	Header	Black	3.2 mm	0.126 "	UL94 V-0			Pick and Place			3 µin	0.076 µm
Samtec Inc. TMM-104-04-T-S-SM	-55 °C	105 ░C	1.5 mm	0.059 "	0.079 in	2 mm		Phosphor Bronze	Tin	Liquid Crystal Polymer (LCP)	Male Pin					Push-Pull	1	4	Board to Board Cable			Unshrouded	3.2 A	Square	Solder	All	Surface Mount	Header	Black			UL94 V-0				1.9 mm	0.075 in
Samtec Inc. TMM-104-05-G-D-SM	-55 °C	125 °C	1.5 mm	0.059 "	0.079 in	2 mm	Gold	Phosphor Bronze	Gold	Liquid Crystal Polymer (LCP)	Male Pin					Push-Pull	2	8	Board to Board Cable	20 µin	0.51 µm	Unshrouded	3.2 A	Square	Solder	All	Surface Mount	Header	Black	1.65 mm	0.065 in	UL94 V-0	0.079 in	2 mm				3 µin	0.076 µm
