MSAS-03PMMR-EE0001
ActiveAmphenol LTW

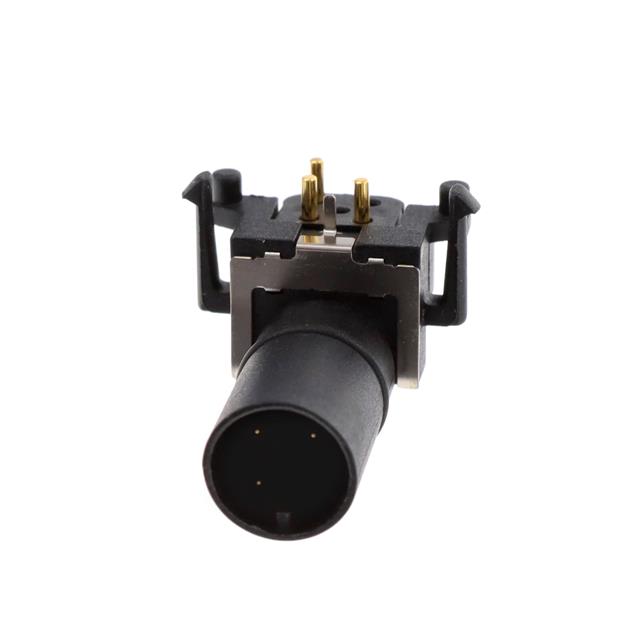

SENSOR CONNECTOR, M SERIES, M12, MALE, 3 POSITIONS, PCB PIN, RIGHT ANGLE PCB MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
MSAS-03PMMR-EE0001
ActiveAmphenol LTW
SENSOR CONNECTOR, M SERIES, M12, MALE, 3 POSITIONS, PCB PIN, RIGHT ANGLE PCB MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MSAS-03PMMR-EE0001 |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 4 A |
| Features | Board Guide, Board Lock |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | M12-3 |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 7.33 | |
| 10 | $ 6.63 | |||
| 25 | $ 6.26 | |||
| 45 | $ 6.11 | |||
| 90 | $ 5.80 | |||
| 270 | $ 5.19 | |||
| 450 | $ 4.89 | |||
| 945 | $ 4.28 | |||
| 2430 | $ 4.06 | |||
Description
General part information
MSAS-03PMMR Series
3 Position Circular Connector Receptacle, Male Pins Solder
