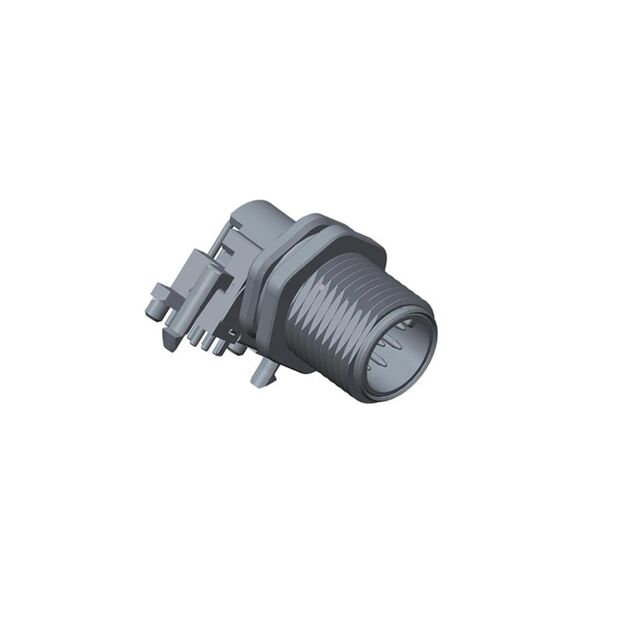

MSAS-03PMMR-SF7003 - MSAS-03PMMR-SF7003

MSAS-03PMMR-SF7003

Active
Amphenol LTW

M SERIES, M12, 4A, 03 PINS, RECEPTACLE, HEXAGONAL ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

MSAS-03PMMR-SF7003 - MSAS-03PMMR-SF7003

MSAS-03PMMR-SF7003

Active
Amphenol LTW

M SERIES, M12, 4A, 03 PINS, RECEPTACLE, HEXAGONAL ROHS COMPLIANT: YES

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

SpecificationMSAS-03PMMR-SF7003
ColorSilver
Connector TypeReceptacle, Male Pins
Contact Finish - MatingGold
Contact MaterialCopper Alloy
Current Rating (Amps)4 A
FeaturesBoard Guide, Board Lock
Ingress ProtectionIP67 - Dust Tight, Waterproof
Insert MaterialPolybutylene Terephthalate (PBT), Polycarbonate (PC)
Mounting FeatureBulkhead - Front Side Nut
Mounting TypeThrough Hole, Right Angle, Panel Mount
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-40 °C
OrientationA
Primary MaterialMetal
Shell FinishNickel
Shell MaterialZinc Alloy
Shell Size - InsertM12-3
ShieldingShielded
TerminationSolder
Voltage Rating250 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 9.23
10$ 7.08
25$ 6.39
40$ 6.07
80$ 5.64
230$ 5.05
440$ 4.73
945$ 4.39
2400$ 4.09
NewarkEach 10$ 6.55
25$ 5.96
50$ 5.59
100$ 5.37
250$ 4.90

Description

General part information

MSAS-03PMMR Series

3 Position Circular Connector Receptacle, Male Pins Solder

Documents

Technical documentation and resources

No documents available
