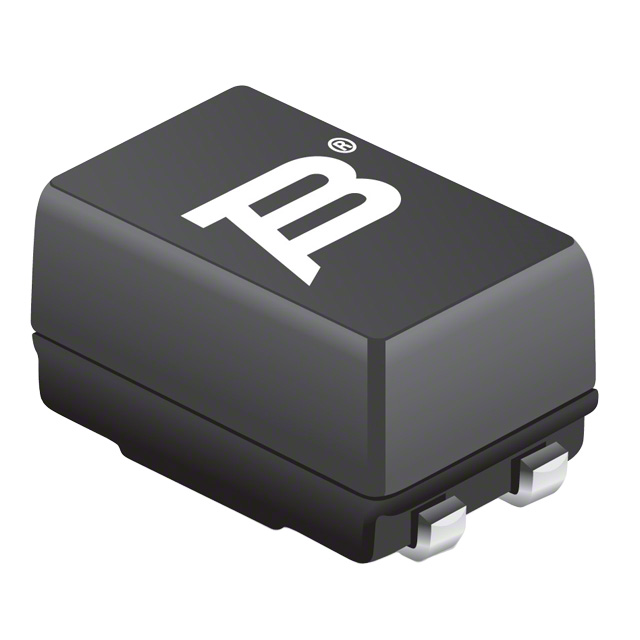

SRF0905-400Y

Active

Bourns Inc.

FILTER, LINE, 40 µH, SRF0905 SERIES, 800 OHM, 900 MA, 9.2MM X 6MM X 5MM

Search across all available documentation for this part.

Active

Bourns Inc.

FILTER, LINE, 40 µH, SRF0905 SERIES, 800 OHM, 900 MA, 9.2MM X 6MM X 5MM

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Max) [Max]	Mounting Type	Impedance @ Frequency	Inductance @ Frequency	DC Resistance (DCR) (Max) [Max]	Number of Lines
Bourns Inc. SRF0905-471Y	4 Lead	Horizontal	9.2 mm	6 mm	0.236 in	0.362 in	80 V	-40 °C	105 ░C	1.1 A	Surface Mount	1 kOhms	470 µH	140 mOhm	2
Bourns Inc. SRF0905-400Y	4 Lead	Horizontal	9.2 mm	6 mm	0.236 in	0.362 in	80 V	-40 °C	105 ░C	900 mA	Surface Mount	800 Ohms	1 kHz 40 µH	250 mOhm	2
Bourns Inc. SRF0905-102Y	4 Lead	Horizontal	9.2 mm	6 mm	0.236 in	0.362 in	80 V	-40 °C	105 ░C	800 mA	Surface Mount	1.5 kOhms	1 mH	310 mOhm	2
Bourns Inc. SRF0905-500Y	4 Lead	Horizontal	9.2 mm	6 mm	0.236 in	0.362 in	80 V	-40 °C	105 ░C	800 mA	Surface Mount	1.5 kOhms	50 µH	320 mOhm	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 µH @ 1 kHz 2 Line Common Mode Choke Surface Mount 800 Ohms @ 20 MHz 900mA DCR 250mOhm
