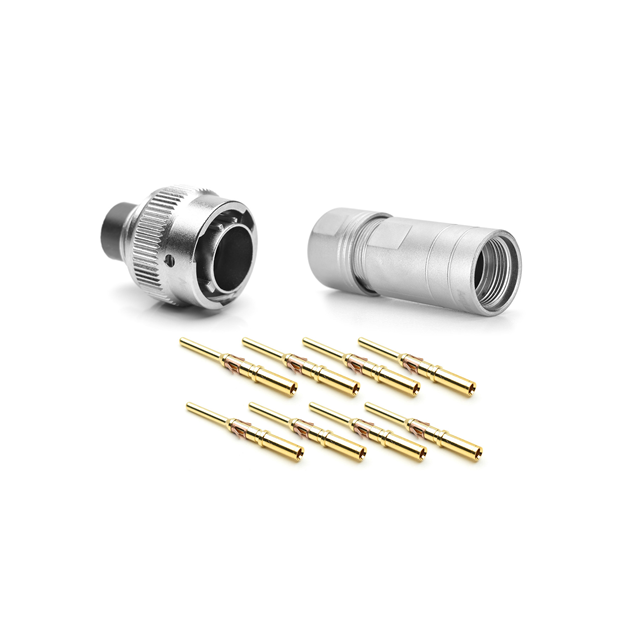

RT06128PNH03SS-K
ActiveAmphenol Sine Systems Corp
CONN PLUG MALE 8POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
RT06128PNH03SS-K
ActiveAmphenol Sine Systems Corp
CONN PLUG MALE 8POS GOLD CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RT06128PNH03SS-K |
|---|---|
| Applications | Automation, Aerospace, Telecom, Industrial, Transportation |
| Backshell Material, Plating | Nickel, Zinc Die Cast |
| Cable Opening [Max] [diameter] | 0.394 in |
| Cable Opening [Max] [diameter] | 10 mm |
| Cable Opening [Min] [diameter] | 0.256 in |
| Cable Opening [Min] [diameter] | 6.5 mm |
| Color | Silver |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Material | Brass |
| Current Rating (Amps) | 13 A |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut, Backshell |
| Ingress Protection | IP69K, IP67 |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 8 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert | 12-8 |
| Shielding | Shielded |
| Termination | Crimp |
| Voltage Rating | 250 VAC |
RT06128 Series
| Part | Color | Material Flammability Rating | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Voltage Rating | Contact Material | Orientation | Contact Finish Thickness - Mating | Current Rating (Amps) | Number of Positions | Applications | Shielding | Features | Contact Finish - Mating | Primary Material | Insert Material | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Termination | Shell Finish | Backshell Material, Plating | Shell Material | Shell Size - Insert | Connector Type | Mounting Type | Contact Type | Contact Shape | Type | Housing Color | Note | Contact Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Sine Systems Corp | Silver | UL94 V-0 | 0.256 in | 6.5 mm | 0.394 in | 10 mm | 250 VAC | Brass | N | Flash | 13 A | 8 | Aerospace Automation Industrial Telecom Transportation | Shielded | Backshell Coupling Nut | Gold | Metal | Polyamide (PA66) Nylon 6/6 | IP67 IP69K | -40 °C | 105 ░C | Bayonet Lock | Crimp | Nickel | Nickel Zinc Die Cast | Zinc Die Cast | 12-8 | Female Sockets Plug | Free Hanging (In-Line) | ||||||
Amphenol Sine Systems Corp | UL94 V-0 | N | 8 | Shielded | Coupling Nut | Metal | Thermoplastic | IP67 - Dust Tight Waterproof | -40 °C | 125 °C | Bayonet Lock | Nickel | Zinc Alloy | 12-8 | Plug Housing | Free Hanging (In-Line) | Crimp | Circular | For Female Sockets | Silver | Contacts Not Included | 16 | |||||||||||||
Amphenol Sine Systems Corp | Silver | 250 VAC | N | Flash | 13 A | 8 | Gold | Metal | IP67 - Dust Tight Waterproof | -40 °C | 105 ░C | Bayonet Lock | Crimp | Nickel | Zinc Die Cast | 12-8 | Male Pins Plug | Free Hanging (In-Line) | |||||||||||||||||
Amphenol Sine Systems Corp | UL94 V-0 | N | 8 | Shielded | Backshell Coupling Nut | Thermoplastic | IP67 - Dust Tight Waterproof | -40 °C | 125 °C | Bayonet Lock | Nickel | Zinc Alloy | 12-8 | Plug Housing | Free Hanging (In-Line) | Crimp | Circular | For Male Pins | Silver | Contacts Not Included | 16 | ||||||||||||||
Amphenol Sine Systems Corp | UL94 V-0 | N | 8 | Shielded | Coupling Nut | Metal | Thermoplastic | IP67 - Dust Tight Waterproof | -40 °C | 125 °C | Bayonet Lock | Nickel | Zinc Alloy | 12-8 | Plug Housing | Free Hanging (In-Line) | Crimp | Circular | For Male Pins | Silver | Contacts Not Included | 16 | |||||||||||||
Amphenol Sine Systems Corp | UL94 V-0 | N | 8 | Shielded | Coupling Nut | Thermoplastic | IP67 - Dust Tight Waterproof | -40 °C | 105 ░C | Bayonet Lock | Nickel | Zinc Alloy | 12-8 | Plug Housing | Free Hanging (In-Line) | Crimp | Circular | For Female Sockets | Silver | Contacts Not Included | 16 | ||||||||||||||
Amphenol Sine Systems Corp | Silver | UL94 V-0 | 0.256 in | 6.5 mm | 0.394 in | 10 mm | 250 VAC | Brass | N | Flash | 13 A | 8 | Aerospace Automation Industrial Telecom Transportation | Shielded | Backshell Coupling Nut | Gold | Metal | Polyamide (PA66) Nylon 6/6 | IP67 IP69K | -40 °C | 105 ░C | Bayonet Lock | Crimp | Nickel | Nickel Zinc Die Cast | Zinc Die Cast | 12-8 | Male Pins Plug | Free Hanging (In-Line) | ||||||
Amphenol Sine Systems Corp | UL94 V-0 | N | 8 | Shielded | Backshell Coupling Nut | Thermoplastic | IP67 - Dust Tight Waterproof | -40 °C | 125 °C | Bayonet Lock | Nickel | Zinc Alloy | 12-8 | Plug Housing | Free Hanging (In-Line) | Crimp | Circular | For Female Sockets | Silver | Contacts Not Included | 16 | ||||||||||||||
Amphenol Sine Systems Corp | UL94 V-0 | N | 8 | Shielded | Coupling Nut | Thermoplastic | IP67 - Dust Tight Waterproof | -40 °C | 105 ░C | Bayonet Lock | Nickel | Zinc Alloy | 12-8 | Plug Housing | Free Hanging (In-Line) | Crimp | Circular | For Male Pins | Silver | Contacts Not Included | 16 | ||||||||||||||
Amphenol Sine Systems Corp | UL94 V-0 | N | 28 | Shielded | Coupling Nut | Metal | Thermoplastic | IP67 - Dust Tight Waterproof | -40 °C | 105 ░C | Bayonet Lock | Nickel | Zinc Alloy | 12-8 | Plug Housing | Free Hanging (In-Line) | Crimp | Circular | For Male Pins | Silver | Contacts Not Included | 16 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 42.68 | |
| 10 | $ 37.37 | |||
| 25 | $ 35.76 | |||
| 50 | $ 34.60 | |||
| 100 | $ 33.45 | |||
| 250 | $ 31.60 | |||
Description
General part information
RT06128 Series
8 Position Circular Connector Plug, Male Pins Crimp
