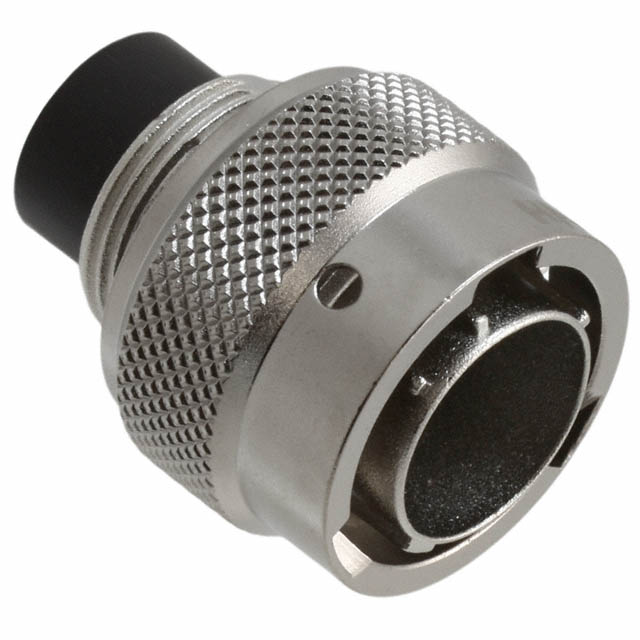

RT06128PNH

Active

Amphenol Sine Systems Corp

CONN PLUG HSNG MALE 8POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

Documentsecomate RM, RSSM, RM Flyer Datasheet +1

RT06128PNH

Active

Amphenol Sine Systems Corp

CONN PLUG HSNG MALE 8POS INLINE

Deep-Dive with AI

Documentsecomate RM, RSSM, RM Flyer Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RT06128PNH

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	8
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	12-8
Shielding	Shielded
Type	For Male Pins

RT06128 Series

Part	Color	Material Flammability Rating	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Voltage Rating	Contact Material	Orientation	Contact Finish Thickness - Mating	Current Rating (Amps)	Number of Positions	Applications	Shielding	Features	Contact Finish - Mating	Primary Material	Insert Material	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Termination	Shell Finish	Backshell Material, Plating	Shell Material	Shell Size - Insert	Connector Type	Mounting Type	Contact Type	Contact Shape	Type	Housing Color	Note	Contact Size
Amphenol Sine Systems Corp RT06128SNH03SS-K	Silver	UL94 V-0	0.256 in	6.5 mm	0.394 in	10 mm	250 VAC	Brass	N	Flash	13 A	8	Aerospace Automation Industrial Telecom Transportation	Shielded	Backshell Coupling Nut	Gold	Metal	Polyamide (PA66) Nylon 6/6	IP67 IP69K	-40 °C	105 ░C	Bayonet Lock	Crimp	Nickel	Nickel Zinc Die Cast	Zinc Die Cast	12-8	Female Sockets Plug	Free Hanging (In-Line)
Amphenol Sine Systems Corp RT06128SNHEC03		UL94 V-0							N			8		Shielded	Coupling Nut		Metal	Thermoplastic	IP67 - Dust Tight Waterproof	-40 °C	125 °C	Bayonet Lock		Nickel		Zinc Alloy	12-8	Plug Housing	Free Hanging (In-Line)	Crimp	Circular	For Female Sockets	Silver	Contacts Not Included	16
Amphenol Sine Systems Corp RT06128PNH-K	Silver						250 VAC		N	Flash	13 A	8				Gold	Metal		IP67 - Dust Tight Waterproof	-40 °C	105 ░C	Bayonet Lock	Crimp	Nickel		Zinc Die Cast	12-8	Male Pins Plug	Free Hanging (In-Line)
Amphenol Sine Systems Corp RT06128PNHEC03R		UL94 V-0							N			8		Shielded	Backshell Coupling Nut			Thermoplastic	IP67 - Dust Tight Waterproof	-40 °C	125 °C	Bayonet Lock		Nickel		Zinc Alloy	12-8	Plug Housing	Free Hanging (In-Line)	Crimp	Circular	For Male Pins	Silver	Contacts Not Included	16
Amphenol Sine Systems Corp RT06128PNHEC03		UL94 V-0							N			8		Shielded	Coupling Nut		Metal	Thermoplastic	IP67 - Dust Tight Waterproof	-40 °C	125 °C	Bayonet Lock		Nickel		Zinc Alloy	12-8	Plug Housing	Free Hanging (In-Line)	Crimp	Circular	For Male Pins	Silver	Contacts Not Included	16
Amphenol Sine Systems Corp RT06128SNH		UL94 V-0							N			8		Shielded	Coupling Nut			Thermoplastic	IP67 - Dust Tight Waterproof	-40 °C	105 ░C	Bayonet Lock		Nickel		Zinc Alloy	12-8	Plug Housing	Free Hanging (In-Line)	Crimp	Circular	For Female Sockets	Silver	Contacts Not Included	16
Amphenol Sine Systems Corp RT06128PNH03SS-K	Silver	UL94 V-0	0.256 in	6.5 mm	0.394 in	10 mm	250 VAC	Brass	N	Flash	13 A	8	Aerospace Automation Industrial Telecom Transportation	Shielded	Backshell Coupling Nut	Gold	Metal	Polyamide (PA66) Nylon 6/6	IP67 IP69K	-40 °C	105 ░C	Bayonet Lock	Crimp	Nickel	Nickel Zinc Die Cast	Zinc Die Cast	12-8	Male Pins Plug	Free Hanging (In-Line)
Amphenol Sine Systems Corp RT06128SNHEC03R		UL94 V-0							N			8		Shielded	Backshell Coupling Nut			Thermoplastic	IP67 - Dust Tight Waterproof	-40 °C	125 °C	Bayonet Lock		Nickel		Zinc Alloy	12-8	Plug Housing	Free Hanging (In-Line)	Crimp	Circular	For Female Sockets	Silver	Contacts Not Included	16
Amphenol Sine Systems Corp RT06128PNH		UL94 V-0							N			8		Shielded	Coupling Nut			Thermoplastic	IP67 - Dust Tight Waterproof	-40 °C	105 ░C	Bayonet Lock		Nickel		Zinc Alloy	12-8	Plug Housing	Free Hanging (In-Line)	Crimp	Circular	For Male Pins	Silver	Contacts Not Included	16
Amphenol Sine Systems Corp RT06128PNHECR		UL94 V-0							N			28		Shielded	Coupling Nut		Metal	Thermoplastic	IP67 - Dust Tight Waterproof	-40 °C	105 ░C	Bayonet Lock		Nickel		Zinc Alloy	12-8	Plug Housing	Free Hanging (In-Line)	Crimp	Circular	For Male Pins	Silver	Contacts Not Included	16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.41
		10	$ 17.00
		25	$ 16.27
		50	$ 15.74
		200	$ 15.22
		400	$ 14.38
		600	$ 13.96

Description

General part information

RT06128 Series

8 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut

Documents

Technical documentation and resources

ecomate RM, RSSM, RM Flyer

Datasheet

ecomate-Family-Flyer-2019

Datasheet
