D01-9950442

Active

Harwin Inc.

CONN SOCKET SIP 4POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRound Pin lC Sockets Spec Sheet Datasheet

D01-9950442

Active

Harwin Inc.

CONN SOCKET SIP 4POS GOLD

Deep-Dive with AI

DocumentsRound Pin lC Sockets Spec Sheet Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

D01-995 Series

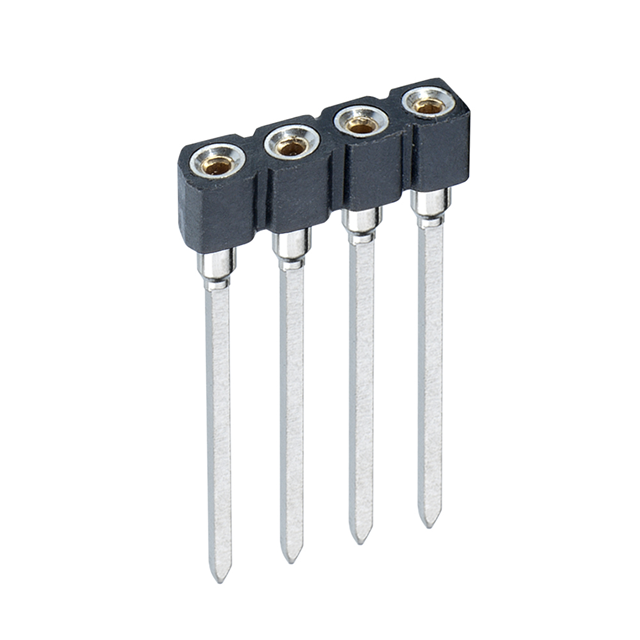

4 (1 x 4) Pos SIP Socket Gold Through Hole
