D01-995 Series

14 POS. FEMALE SIL VERTICAL WIRE WRAP IC STRIP ROHS COMPLIANT: YES

Part	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Mounting Type	Pitch - Post	Pitch - Post	Contact Finish - Post	Contact Resistance	Contact Material - Mating	Number of Positions or Pins (Grid)	Material Flammability Rating	Contact Material - Post [custom]	Housing Material	Current Rating (Amps)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Termination Post Length [x]	Termination Post Length [x]	Number of Positions or Pins (Grid) [custom]
Harwin Inc. D01-9951442	0.1 in	2.54 mm	Gold	Through Hole	2.54 mm	0.1 in	Tin	10 mOhm	Beryllium Copper	14	UL94 V-0	Brass	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	1 A	196.9 µin	5 µm	10 çin	0.25 çm	SIP	Wire Wrap	-55 °C	125 °C	0.51 in	12.95 mm
Harwin Inc. D01-9951242	0.1 in	2.54 mm	Gold	Through Hole	2.54 mm	0.1 in	Tin	10 mOhm	Beryllium Copper	12	UL94 V-0	Brass	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	1 A	196.9 µin	5 µm	10 çin	0.25 çm	SIP	Wire Wrap	-55 °C	125 °C	0.51 in	12.95 mm	1 x 12
Harwin Inc. D01-9950542	0.1 in	2.54 mm	Gold	Through Hole	2.54 mm	0.1 in	Tin	10 mOhm	Beryllium Copper	5	UL94 V-0	Brass	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	1 A	196.9 µin	5 µm	10 çin	0.25 çm	SIP	Wire Wrap	-55 °C	125 °C	0.51 in	12.95 mm
Harwin Inc. D01-9950842	0.1 in	2.54 mm	Gold	Through Hole	2.54 mm	0.1 in	Tin	10 mOhm	Beryllium Copper	8	UL94 V-0	Brass	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	1 A	196.9 µin	5 µm	10 çin	0.25 çm	SIP	Wire Wrap	-55 °C	125 °C	0.51 in	12.95 mm
Harwin Inc. D01-9950442	0.1 in	2.54 mm	Gold	Through Hole	2.54 mm	0.1 in	Tin	10 mOhm	Beryllium Copper	4	UL94 V-0	Brass	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	1 A	196.9 µin	5 µm	10 çin	0.25 çm	SIP	Wire Wrap	-55 °C	125 °C	0.51 in	12.95 mm	1 x 4
Harwin Inc. D01-9950642	0.1 in	2.54 mm	Gold	Through Hole	2.54 mm	0.1 in	Tin	10 mOhm	Beryllium Copper		UL94 V-0	Brass	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	1 A	196.9 µin	5 µm	10 çin	0.25 çm	SIP	Wire Wrap	-55 °C	125 °C	0.51 in	12.95 mm
Harwin Inc. D01-9951642	0.1 in	2.54 mm	Gold	Through Hole	2.54 mm	0.1 in	Tin	10 mOhm	Beryllium Copper	16	UL94 V-0	Brass	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	1 A	196.9 µin	5 µm	10 çin	0.25 çm	SIP	Wire Wrap	-55 °C	125 °C	0.51 in	12.95 mm
Harwin Inc. D01-9950942	0.1 in	2.54 mm	Gold	Through Hole	2.54 mm	0.1 in	Tin	10 mOhm	Beryllium Copper	9	UL94 V-0	Brass	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	1 A	196.9 µin	5 µm	10 çin	0.25 çm	SIP	Wire Wrap	-55 °C	125 °C	0.51 in	12.95 mm
Harwin Inc. D01-9951042	0.1 in	2.54 mm	Gold	Through Hole	2.54 mm	0.1 in	Tin	10 mOhm	Beryllium Copper	10	UL94 V-0	Brass	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	1 A	196.9 µin	5 µm	10 çin	0.25 çm	SIP	Wire Wrap	-55 °C	125 °C	0.51 in	12.95 mm
Harwin Inc. D01-9950742	0.1 in	2.54 mm	Gold	Through Hole	2.54 mm	0.1 in	Tin	10 mOhm	Beryllium Copper	7	UL94 V-0	Brass	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	1 A	196.9 µin	5 µm	10 çin	0.25 çm	SIP	Wire Wrap	-55 °C	125 °C	0.51 in	12.95 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

D01-995 Series

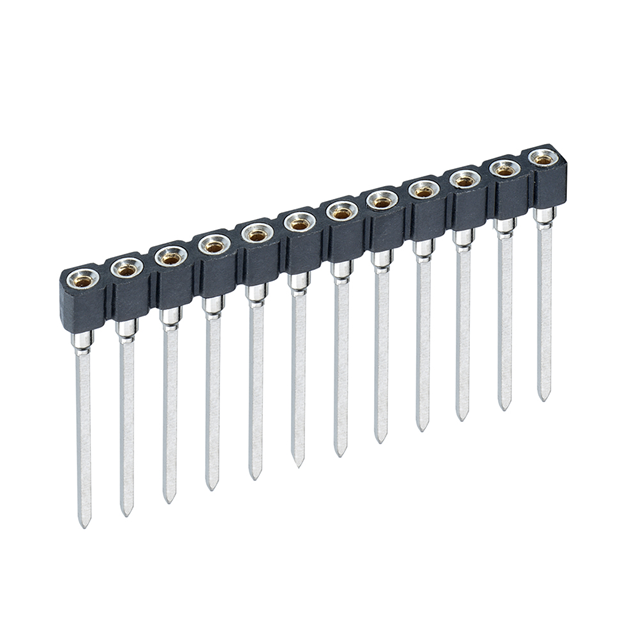

12 (1 x 12) Pos SIP Socket Gold Through Hole
