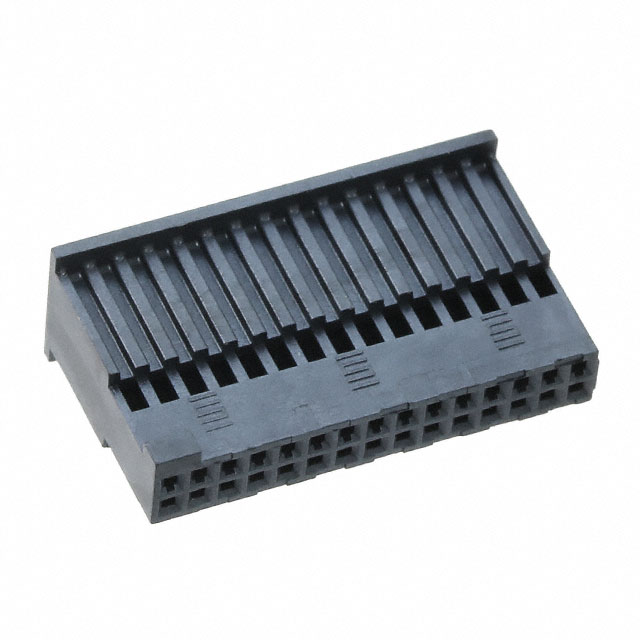

ISDF-15-D

Active

Samtec Inc.

HEADERS & WIRE HOUSINGS .050 TIGER EYE DISCRETE WIRE SOCKET HOUSING

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSFSD Series Other Related Documents 03 Datasheet +2

ISDF-15-D

Active

Samtec Inc.

HEADERS & WIRE HOUSINGS .050 TIGER EYE DISCRETE WIRE SOCKET HOUSING

Deep-Dive with AI

DocumentsSFSD Series Other Related Documents 03 Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ISDF-15-D

Color	Black
Connector Type	Insulator
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	30
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Row Spacing	1.27 mm
Row Spacing	0.05 in

ISDF-23 Series

Headers & Wire Housings .050" Tiger Eye Discrete Wire Socket Housing

Part	Color	Connector Type	Contact Type	Contact Termination	Insulation Material	Number of Positions	Pitch [x]	Pitch [x]	Fastening Type	Note	Row Spacing	Row Spacing	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Features
Samtec Inc. ISDF-15-D-M	Black	Insulator	Female Socket	Crimp	Liquid Crystal Polymer (LCP)	30	0.05 in	1.27 mm	Latch Lock	Contacts Not Included	1.27 mm	0.05 in	2	-55 °C	125 °C	Free Hanging (In-Line)	Retention Latches
Samtec Inc. ISDF-12-D-S	Black	Insulator	Female Socket	Crimp	Liquid Crystal Polymer (LCP)	24	0.05 in	1.27 mm	Latch Lock	Contacts Not Included	1.27 mm	0.05 in	2	-55 °C	125 °C	Free Hanging (In-Line)	Mating Flange
Samtec Inc. ISDF-15-D-L	Black	Insulator	Female Socket	Crimp	Liquid Crystal Polymer (LCP)	30	0.05 in	1.27 mm	Friction Lock	Contacts Not Included	1.27 mm	0.05 in	2	-55 °C	125 °C	Free Hanging (In-Line)
Samtec Inc. ISDF-12-D-R	Black	Insulator	Female Socket	Crimp	Liquid Crystal Polymer (LCP)	24	0.05 in	1.27 mm	Latch Lock	Contacts Not Included	1.27 mm	0.05 in	2	-55 °C	125 °C	Free Hanging (In-Line)
Samtec Inc. ISDF-03-S	Black	Insulator	Female Socket	Crimp	Liquid Crystal Polymer (LCP)		0.05 in	1.27 mm	Latch Lock	Contacts Not Included			1	-55 °C	125 °C	Free Hanging (In-Line)
Samtec Inc. ISDF-15-D	Black	Insulator	Female Socket	Crimp	Liquid Crystal Polymer (LCP)	30	0.05 in	1.27 mm	Latch Lock	Contacts Not Included	1.27 mm	0.05 in	2	-55 °C	125 °C	Free Hanging (In-Line)
Samtec Inc. ISDF-12-S-R	Black	Insulator	Female Socket	Crimp	Liquid Crystal Polymer (LCP)	12	0.05 in	1.27 mm	Latch Lock	Contacts Not Included			1	-55 °C	125 °C	Free Hanging (In-Line)
Samtec Inc. ISDF-03-D	Black	Insulator	Female Socket	Crimp	Liquid Crystal Polymer (LCP)	6	0.05 in	1.27 mm	Latch Lock	Contacts Not Included	1.27 mm	0.05 in	2	-55 °C	125 °C	Free Hanging (In-Line)
Samtec Inc. ISDF-03-D-DS	Black	Insulator	Female Socket	Crimp	Liquid Crystal Polymer (LCP)	6	0.05 in	1.27 mm	Latch Lock	Contacts Not Included	1.27 mm	0.05 in	2	-55 °C	125 °C	Free Hanging (In-Line)	Mating Flange
Samtec Inc. ISDF-03-D-M	Black	Insulator	Female Socket	Crimp	Liquid Crystal Polymer (LCP)	6	0.05 in	1.27 mm	Latch Lock	Contacts Not Included	1.27 mm	0.05 in	2	-55 °C	125 °C	Free Hanging (In-Line)	Retention Latches

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.97
		10	$ 1.50
		25	$ 1.35
		50	$ 1.25
		100	$ 1.16
		250	$ 1.05
		500	$ 0.97
		1000	$ 0.90
		2500	$ 0.82
Sager	N/A	1	$ 1.28
		50	$ 0.99
		100	$ 0.80
		500	$ 0.68
		1000	$ 0.59
		2000	$ 0.56
		5000	$ 0.49
		10000	$ 0.43
