ISDF-15-D-L

Active

Samtec Inc.

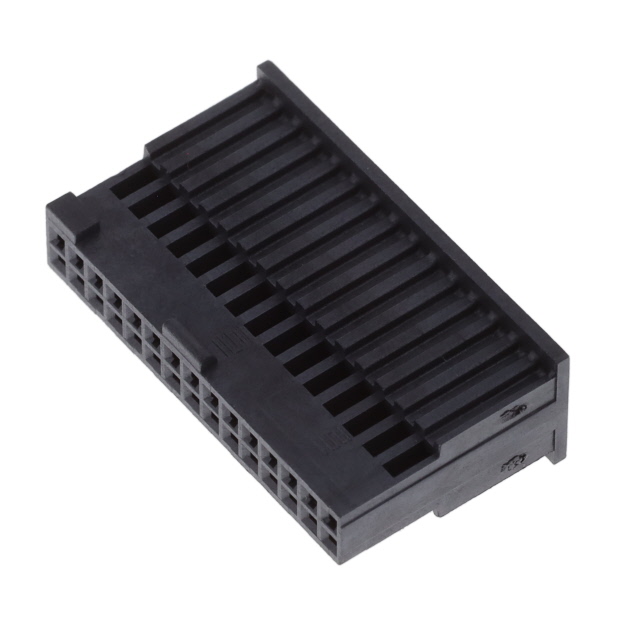

CONN HOUSING RCP 30 POS 1.27MM CRIMP ST CABLE MOUNT BLACK TUBE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsISDF Datasheet Datasheet +2

ISDF-15-D-L

Active

Samtec Inc.

CONN HOUSING RCP 30 POS 1.27MM CRIMP ST CABLE MOUNT BLACK TUBE

Deep-Dive with AI

DocumentsISDF Datasheet Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ISDF-15-D-L

Color	Black
Connector Type	Insulator
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Friction Lock
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	30
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Row Spacing	1.27 mm
Row Spacing	0.05 in

ISDF-23 Series

Headers & Wire Housings .050" Tiger Eye Discrete Wire Socket Housing

Part	Color	Connector Type	Contact Type	Contact Termination	Insulation Material	Number of Positions	Pitch [x]	Pitch [x]	Fastening Type	Note	Row Spacing	Row Spacing	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Features
Samtec Inc. ISDF-15-D-M	Black	Insulator	Female Socket	Crimp	Liquid Crystal Polymer (LCP)	30	0.05 in	1.27 mm	Latch Lock	Contacts Not Included	1.27 mm	0.05 in	2	-55 °C	125 °C	Free Hanging (In-Line)	Retention Latches
Samtec Inc. ISDF-12-D-S	Black	Insulator	Female Socket	Crimp	Liquid Crystal Polymer (LCP)	24	0.05 in	1.27 mm	Latch Lock	Contacts Not Included	1.27 mm	0.05 in	2	-55 °C	125 °C	Free Hanging (In-Line)	Mating Flange
Samtec Inc. ISDF-15-D-L	Black	Insulator	Female Socket	Crimp	Liquid Crystal Polymer (LCP)	30	0.05 in	1.27 mm	Friction Lock	Contacts Not Included	1.27 mm	0.05 in	2	-55 °C	125 °C	Free Hanging (In-Line)
Samtec Inc. ISDF-12-D-R	Black	Insulator	Female Socket	Crimp	Liquid Crystal Polymer (LCP)	24	0.05 in	1.27 mm	Latch Lock	Contacts Not Included	1.27 mm	0.05 in	2	-55 °C	125 °C	Free Hanging (In-Line)
Samtec Inc. ISDF-03-S	Black	Insulator	Female Socket	Crimp	Liquid Crystal Polymer (LCP)		0.05 in	1.27 mm	Latch Lock	Contacts Not Included			1	-55 °C	125 °C	Free Hanging (In-Line)
Samtec Inc. ISDF-15-D	Black	Insulator	Female Socket	Crimp	Liquid Crystal Polymer (LCP)	30	0.05 in	1.27 mm	Latch Lock	Contacts Not Included	1.27 mm	0.05 in	2	-55 °C	125 °C	Free Hanging (In-Line)
Samtec Inc. ISDF-12-S-R	Black	Insulator	Female Socket	Crimp	Liquid Crystal Polymer (LCP)	12	0.05 in	1.27 mm	Latch Lock	Contacts Not Included			1	-55 °C	125 °C	Free Hanging (In-Line)
Samtec Inc. ISDF-03-D	Black	Insulator	Female Socket	Crimp	Liquid Crystal Polymer (LCP)	6	0.05 in	1.27 mm	Latch Lock	Contacts Not Included	1.27 mm	0.05 in	2	-55 °C	125 °C	Free Hanging (In-Line)
Samtec Inc. ISDF-03-D-DS	Black	Insulator	Female Socket	Crimp	Liquid Crystal Polymer (LCP)	6	0.05 in	1.27 mm	Latch Lock	Contacts Not Included	1.27 mm	0.05 in	2	-55 °C	125 °C	Free Hanging (In-Line)	Mating Flange
Samtec Inc. ISDF-03-D-M	Black	Insulator	Female Socket	Crimp	Liquid Crystal Polymer (LCP)	6	0.05 in	1.27 mm	Latch Lock	Contacts Not Included	1.27 mm	0.05 in	2	-55 °C	125 °C	Free Hanging (In-Line)	Retention Latches
