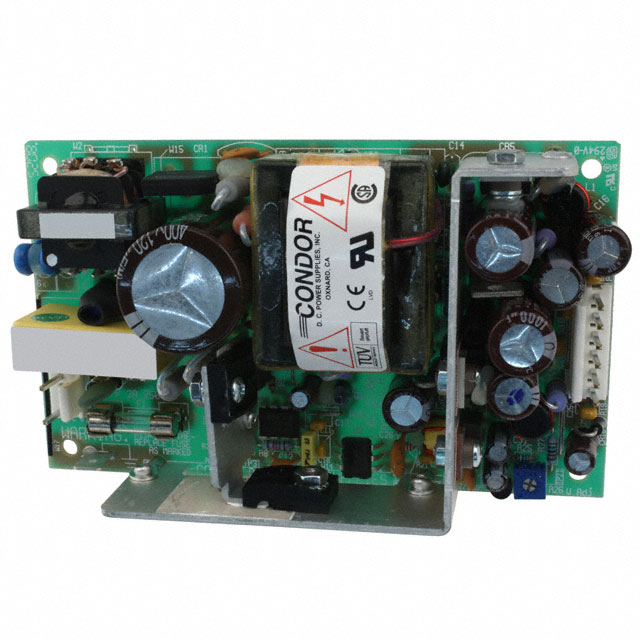

GPM40BG

Obsolete

SL POWER / Advanced Energy

AC/DC CONVERTER 5.1V +/-15V 40W

Search across all available documentation for this part.

Obsolete

SL POWER / Advanced Energy

AC/DC CONVERTER 5.1V +/-15V 40W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 3 Output 5.1V 15V -15V 85 ~ 264 VAC Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	GPM40BG	GPM40 Series

Applications	Medical	Medical
Approval Agency	cURus, CE, TUV	cURus, CE, TUV
Current - Output 1	4 A	4 A
Current - Output 2	2 A	2 A
Current - Output 3	400 mA	400 mA
Efficiency	70 %	70 %
Features	Remote Sense, Universal Input, Adjustable Output	Remote Sense, Universal Input, Adjustable Output
Minimum Load Required	True	True
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	3	3
Operating Temperature [Max]	50 °C	50 °C
Operating Temperature [Min]	0 °C	0 °C
Power (Watts)	50 W, 40 W	40 - 50 W
Size / Dimension [x]	127 mm	127 mm
Size / Dimension [x]	5 in	5 in
Size / Dimension [y]	3 "	3 "
Size / Dimension [y]	76.2 mm	76.2 mm
Size / Dimension [z]	1.28 in	1.28 in
Size / Dimension [z]	32.5 mm	32.5 mm
Type	Open Frame	Open Frame
Voltage - Output 1	5.1 V	5.1 V
Voltage - Output 2	15 V	12 - 15 V
Voltage - Output 3	-15 V	-15 - -12 V

AC/DC CONVERTER 5.1V +/-15V 40W

Part	Voltage - Output 2	Current - Output 2	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Minimum Load Required	Mounting Type	Current - Output 1	Power (Watts)	Applications	Features	Approval Agency	Type	Number of Outputs	Voltage - Output 3	Efficiency	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output 3
SL POWER / Advanced Energy GPM40BG	15 V	2 A	3 "	127 mm	5 in	1.28 in	76.2 mm	32.5 mm		Chassis Mount	4 A	40 W, 50 W	Medical	Adjustable Output, Remote Sense, Universal Input	CE, cURus, TUV	Open Frame	3	-15 V	70 %	5.1 V	0 °C	50 °C	400 mA
SL POWER / Advanced Energy GPM40AG	12 V	2 A	3 "	127 mm	5 in	1.28 in	76.2 mm	32.5 mm		Chassis Mount	4 A	40 W, 50 W	Medical	Adjustable Output, Remote Sense, Universal Input	CE, cURus, TUV	Open Frame	3	-12 V	70 %	5.1 V	0 °C	50 °C	400 mA
