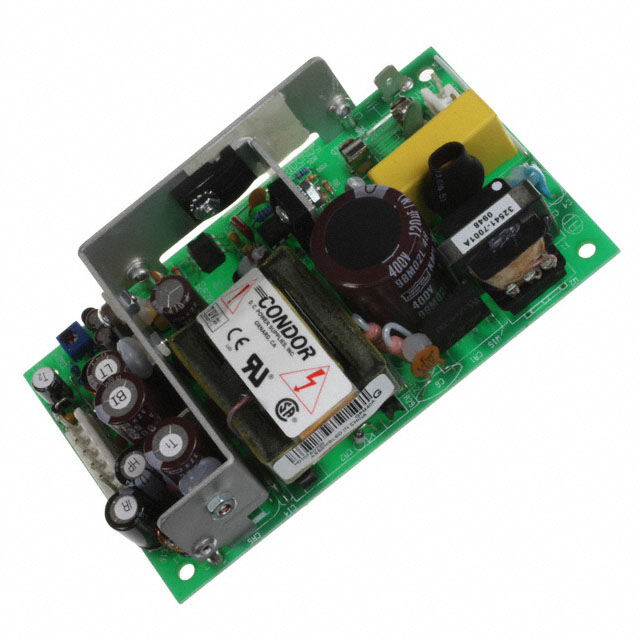

GPM40AG

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 5.1V +/-12V 40W

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 5.1V +/-12V 40W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	GPM40AG	GPM40 Series

Applications	Medical	Medical
Approval Agency	cURus, CE, TUV	cURus, CE, TUV
Current - Output 1	4 A	4 A
Current - Output 2	2 A	2 A
Current - Output 3	400 mA	400 mA
Efficiency	70 %	70 %
Features	Remote Sense, Universal Input, Adjustable Output	Remote Sense, Universal Input, Adjustable Output
Minimum Load Required	True	True
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	3	3
Operating Temperature [Max]	50 °C	50 °C
Operating Temperature [Min]	0 °C	0 °C
Power (Watts)	50 W, 40 W	40 - 50 W
Size / Dimension [x]	127 mm	127 mm
Size / Dimension [x]	5 in	5 in
Size / Dimension [y]	3 "	3 "
Size / Dimension [y]	76.2 mm	76.2 mm
Size / Dimension [z]	1.28 in	1.28 in
Size / Dimension [z]	32.5 mm	32.5 mm
Type	Open Frame	Open Frame
Voltage - Output 1	5.1 V	5.1 V
Voltage - Output 2	12 V	12 - 15 V
Voltage - Output 3	-12 V	-15 - -12 V

AC/DC CONVERTER 5.1V +/-15V 40W

Part	Voltage - Output 2	Current - Output 2	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Minimum Load Required	Mounting Type	Current - Output 1	Power (Watts)	Applications	Features	Approval Agency	Type	Number of Outputs	Voltage - Output 3	Efficiency	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output 3
SL POWER / Advanced Energy GPM40BG	15 V	2 A	3 "	127 mm	5 in	1.28 in	76.2 mm	32.5 mm		Chassis Mount	4 A	40 W, 50 W	Medical	Adjustable Output, Remote Sense, Universal Input	CE, cURus, TUV	Open Frame	3	-15 V	70 %	5.1 V	0 °C	50 °C	400 mA
SL POWER / Advanced Energy GPM40AG	12 V	2 A	3 "	127 mm	5 in	1.28 in	76.2 mm	32.5 mm		Chassis Mount	4 A	40 W, 50 W	Medical	Adjustable Output, Remote Sense, Universal Input	CE, cURus, TUV	Open Frame	3	-12 V	70 %	5.1 V	0 °C	50 °C	400 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 3 Output 5.1V 12V -12V 85 ~ 264 VAC Input
