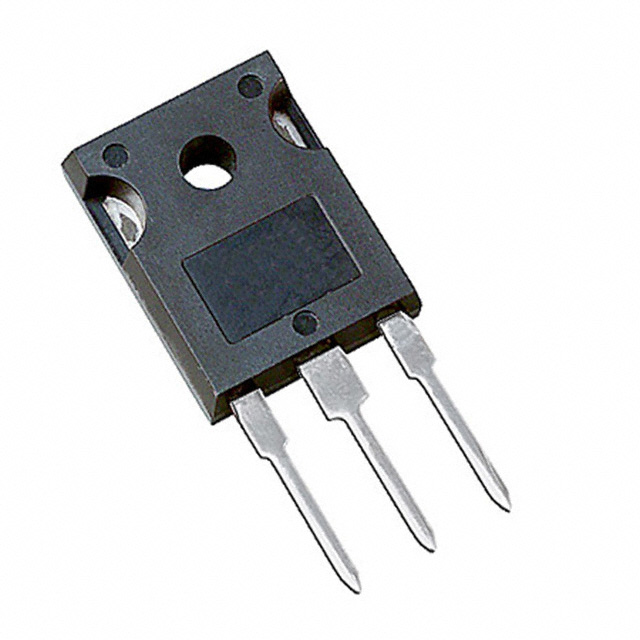

IRG8P40N120KDPBF

Obsolete

Infineon Technologies

IGBT 1200V 60A TO247AC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IRG8P40N120KDPBF

Obsolete

Infineon Technologies

IGBT 1200V 60A TO247AC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IRG8P40N120KDPBF

Current - Collector (Ic) (Max) [Max]	60 A
Current - Collector Pulsed (Icm)	75 A
Gate Charge	240 nC
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	TO-247-3
Power - Max [Max]	305 W
Reverse Recovery Time (trr)	80 ns
Supplier Device Package	TO-247AC
Switching Energy	1.8 mJ, 1.6 mJ
Td (on/off) @ 25°C	245 ns, 40 ns
Test Condition	15 V, 10 Ohm, 25 A, 600 V
Vce(on) (Max) @ Vge, Ic	2 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

IRG8P Series

Part	Current - Collector Pulsed (Icm)	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Switching Energy	Power - Max [Max]	Current - Collector (Ic) (Max) [Max]	Reverse Recovery Time (trr)	Vce(on) (Max) @ Vge, Ic	Gate Charge	Test Condition	Td (on/off) @ 25°C	Voltage - Collector Emitter Breakdown (Max) [Max]	Mounting Type	Supplier Device Package	Td (on/off) @ 25°C	Td (on/off) @ 25°C
Infineon Technologies IRG8P60N120KD-EPBF	120 A	TO-247-3	150 °C	-40 °C	2.3 mJ 2.8 mJ	420 W	100 A	210 ns	2 V	345 nC	5 Ohm 15 V 40 A 600 V	40 ns 240 ns	1200 V	Through Hole	TO-247AD
Infineon Technologies IRG8P15N120KDPBF	30 A	TO-247-3	150 °C	-40 °C	600 µJ 600 µJ		30 A	60 ns	2 V	98 nC	10 Ohm 10 A 15 V 600 V		1200 V	Through Hole	TO-247AC	170 ns	15 ns
Infineon Technologies IRG8P25N120KD-EPBF	45 A	TO-247-3	150 °C	-40 °C	800 µJ 900 µJ	180 W	40 A	70 ns	2 V	135 nC	10 Ohm 15 A 15 V 600 V		1200 V	Through Hole	TO-247AD		20 ns 170 ns
Infineon Technologies IRG8P60N120KD-EPBF	120 A	TO-247-3	150 °C	-40 °C	2.3 mJ 2.8 mJ	420 W	100 A	210 ns	2 V	345 nC	5 Ohm 15 V 40 A 600 V	40 ns 240 ns	1200 V	Through Hole	TO-247AD
Infineon Technologies IRG8P25N120KD-EPBF	45 A	TO-247-3	150 °C	-40 °C	800 µJ 900 µJ	180 W	40 A	70 ns	2 V	135 nC	10 Ohm 15 A 15 V 600 V		1200 V	Through Hole	TO-247AD		20 ns 170 ns
Infineon Technologies IRG8P60N120KDPBF	120 A	TO-247-3	150 °C	-40 °C	2.3 mJ 2.8 mJ	420 W	100 A	210 ns	2 V	345 nC	5 Ohm 15 V 40 A 600 V	40 ns 240 ns	1200 V	Through Hole	TO-247AC
Infineon Technologies IRG8P25N120KDPBF	45 A	TO-247-3	150 °C	-40 °C	800 µJ 900 µJ	180 W	40 A	70 ns	2 V	135 nC	10 Ohm 15 A 15 V 600 V		1200 V	Through Hole	TO-247AC		20 ns 170 ns
Infineon Technologies IRG8P15N120KDPBF	30 A	TO-247-3	150 °C	-40 °C	600 µJ 600 µJ		30 A	60 ns	2 V	98 nC	10 Ohm 10 A 15 V 600 V		1200 V	Through Hole	TO-247AC	170 ns	15 ns
Infineon Technologies IRG8P40N120KDPBF	75 A	TO-247-3	150 °C	-40 °C	1.6 mJ 1.8 mJ	305 W	60 A	80 ns	2 V	240 nC	10 Ohm 15 V 25 A 600 V	40 ns 245 ns	1200 V	Through Hole	TO-247AC
Infineon Technologies IRG8P25N120KDPBF	45 A	TO-247-3	150 °C	-40 °C	800 µJ 900 µJ	180 W	40 A	70 ns	2 V	135 nC	10 Ohm 15 A 15 V 600 V		1200 V	Through Hole	TO-247AC		20 ns 170 ns

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	59	$ 5.14
		59	$ 5.14

Description

General part information

IRG8P Series

IGBT 1200 V 60 A 305 W Through Hole TO-247AC
