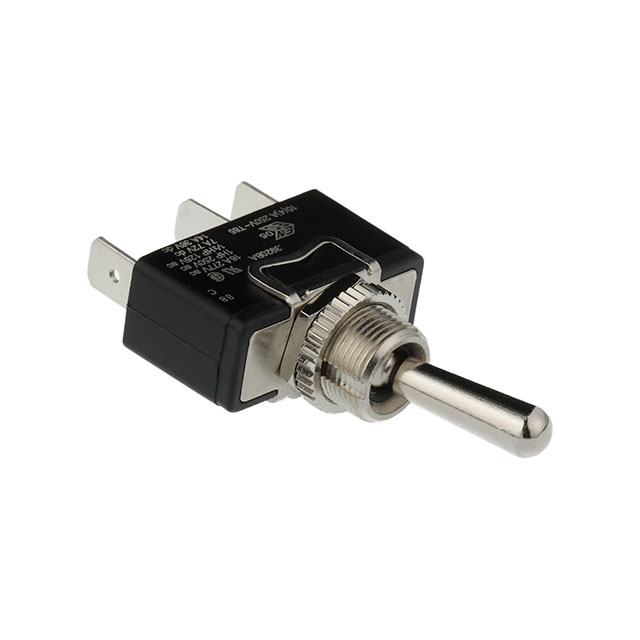

C3920BAAAA

Active

BULGIN LIMITED

SWITCH TOGGLE SPDT 20A 250V

Search across all available documentation for this part.

Active

BULGIN LIMITED

SWITCH TOGGLE SPDT 20A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	C3920BAAAA

Actuator Length [x]	17.5 mm
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	SPDT
Current Rating (Amps)	20 A
Illumination	Non-Illuminated
Panel Cutout Dimensions [diameter]	12.7 mm
Switch Function	On-Off-On
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	250 V

Part	Termination Style	Actuator Length [x]	Switch Function	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Bushing Thread	Illumination	Circuit	Ingress Protection	Actuator Type	Current Rating (Amps)
BULGIN LIMITED C3920BE	Quick Connect - 0.250" (6.3mm)	17.5 mm	On-Off-On	125 V	12.7 mm	36 VDC	15/32-32	Non-Illuminated	SPDT	IP67 - Dust Tight Waterproof	Standard Round
BULGIN LIMITED C3920BAAAA	Quick Connect - 0.250" (6.3mm)	17.5 mm	On-Off-On	250 V	12.7 mm		15/32-32	Non-Illuminated	SPDT		Standard Round	20 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch SPDT Panel Mount
