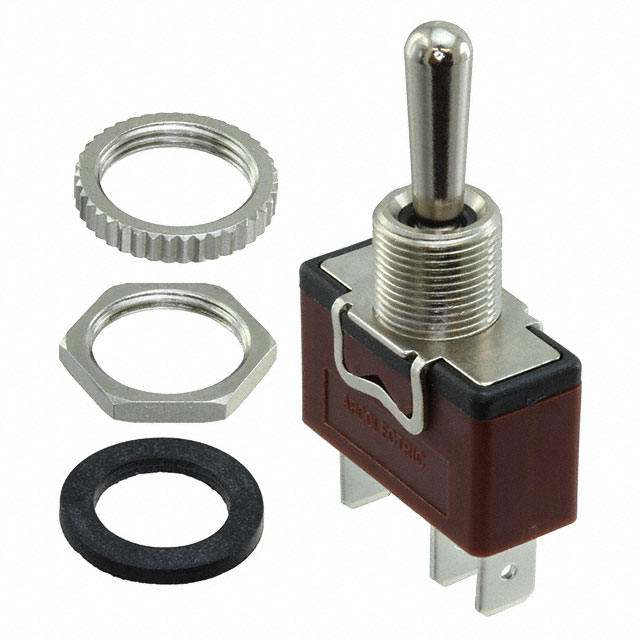

Specification	C3920BE

Actuator Length	17.5 mm
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	SPDT
Current Rating	14 A, 16 A
Illumination	Non-Illuminated
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mounting Type	Panel Mount
Panel Cutout Diameter	12.7 mm
Panel Cutout Shape	Circular
Quick Connect Size (0.250")	0.25 in
Switch Function	On-Off-On
Termination Style	Quick Connect
Voltage Rating - AC	125 V
Voltage Rating - DC	36 VDC

C3920 Series

Part	Circuit	Voltage Rating - AC	Actuator Type	Illumination	Bushing Thread	Current Rating	Actuator Length	Switch Function	Mounting Type	Quick Connect Size (0.250")	Termination Style	Voltage Rating - DC	Panel Cutout Diameter	Panel Cutout Shape	Ingress Protection Description	Ingress Protection IP Rating
BULGIN LIMITED C3920BA	SPDT SPST	125 V	Standard Round	Non-Illuminated	15/32-32	14 A 16 A	17.5 mm	On-Off-On	Panel Mount	0.25 in	Quick Connect	36 VDC	12.7 mm	Circular
BULGIN LIMITED C3920BE	SPDT	125 V	Standard Round	Non-Illuminated	15/32-32	14 A 16 A	17.5 mm	On-Off-On	Panel Mount	0.25 in	Quick Connect	36 VDC	12.7 mm	Circular	Dust Tight Waterproof	IP67
BULGIN LIMITED C3920BAAAA	SPDT	250 V	Standard Round	Non-Illuminated	15/32-32	20 A	17.5 mm	On-Off-On	Panel Mount	0.25 in	Quick Connect		12.7 mm	Circular
