EXP-0911/03/S

Active

BULGIN LIMITED

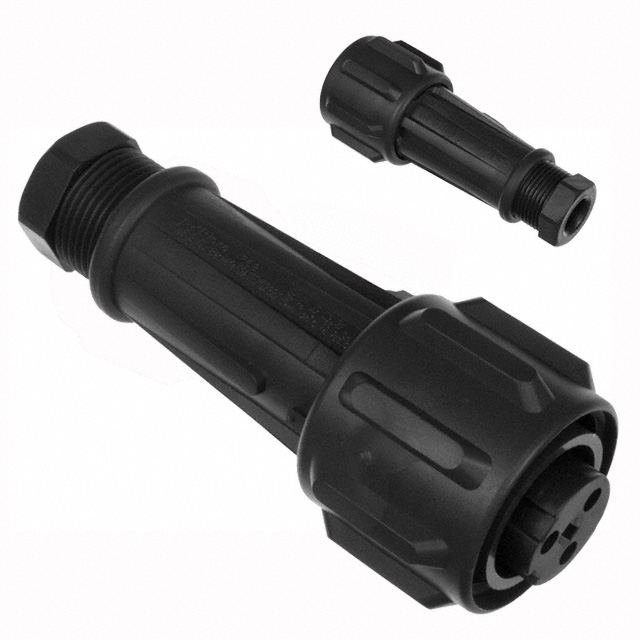

CIRCULAR CONNECTOR, 3 CONTACT(S), POLYESTER, FEMALE, SCREW TERMINAL, SOCKET, ROHS COMPLIANT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EXP-0911/03/S

Active

BULGIN LIMITED

CIRCULAR CONNECTOR, 3 CONTACT(S), POLYESTER, FEMALE, SCREW TERMINAL, SOCKET, ROHS COMPLIANT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EXP-0911/03/S

Applications	Industrial
Backshell Material, Plating	Polyester
Cable Opening [Max] [custom]	15 mm
Cable Opening [Max] [custom]	0.591 in
Cable Opening [Min] [custom]	13 mm
Cable Opening [Min] [custom]	0.512 in
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Nickel
Contact Material	Brass
Current Rating (Amps)	18 A
Features	Coupling Nut, UV Resistant, Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions [custom]	3
Number of Positions [custom]	1
Number of Positions [custom]	2
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polyester
Shielding	Unshielded
Termination	Screw
Voltage Rating	600 VAC

EXP-0911 Series

Part	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Shielding	Termination	Number of Positions	Voltage Rating	Backshell Material, Plating	Mounting Type	Shell Material	Connector Type	Primary Material	Material Flammability Rating	Contact Material	Color	Contact Finish - Mating	Current Rating (Amps)	Features	Orientation	Applications	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
BULGIN LIMITED EXP-0911/02/P	13 mm	15 mm	0.512 in	0.591 in	Unshielded	Screw	2	600 VAC	Polyester	Free Hanging (In-Line)	Polyester	Male Pins Plug	Plastic	UL94 V-0	Brass	Black	Nickel	18 A	Backshell Coupling Nut UV Resistant	Keyed	Industrial	IP68 - Dust Tight Waterproof	55 °C	-20 C
BULGIN LIMITED EXP-0911/03/S	13 mm	15 mm	0.512 in	0.591 in	Unshielded	Screw		600 VAC	Polyester	Free Hanging (In-Line)	Polyester	Female Sockets Plug	Plastic	UL94 V-0	Brass	Black	Nickel	18 A	Backshell Coupling Nut UV Resistant	Keyed	Industrial	IP68 - Dust Tight Waterproof	55 °C	-20 C	3	1	2
BULGIN LIMITED EXP-0911/04/S	13 mm	15 mm	0.512 in	0.591 in	Unshielded	Screw		600 VAC	Polyester	Free Hanging (In-Line)	Polyester	Female Sockets Plug	Plastic	UL94 V-0	Brass	Black	Nickel	18 A	Backshell Coupling Nut UV Resistant	Keyed	Industrial	IP68 - Dust Tight Waterproof	55 °C	-20 C	4		3	1
BULGIN LIMITED EXP-0911/10/P	13 mm	15 mm	0.512 in	0.591 in	Unshielded	Screw	10	250 VAC	Polyester	Free Hanging (In-Line)	Polyester	Male Pins Plug	Plastic	UL94 V-0	Brass	Black	Nickel	10 A	Backshell Coupling Nut UV Resistant	Keyed	Industrial	IP68 - Dust Tight Waterproof	55 °C	-20 C
BULGIN LIMITED EXP-0911/10/S	13 mm	15 mm	0.512 in	0.591 in	Unshielded	Screw	10	250 VAC	Polyester	Free Hanging (In-Line)	Polyester	Female Sockets Plug	Plastic	UL94 V-0	Brass	Black	Nickel	10 A	Backshell Coupling Nut UV Resistant	Keyed	Industrial	IP68 - Dust Tight Waterproof	55 °C	-20 C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 63.98
		10	$ 58.71
		25	$ 56.45
		50	$ 54.57
		100	$ 51.56
Newark	Each	1	$ 96.59

Description

General part information

EXP-0911 Series

3 (2 Power + PE) Position Circular Connector Plug, Female Sockets Screw
