EXP-0911/10/P
ActiveBULGIN LIMITED

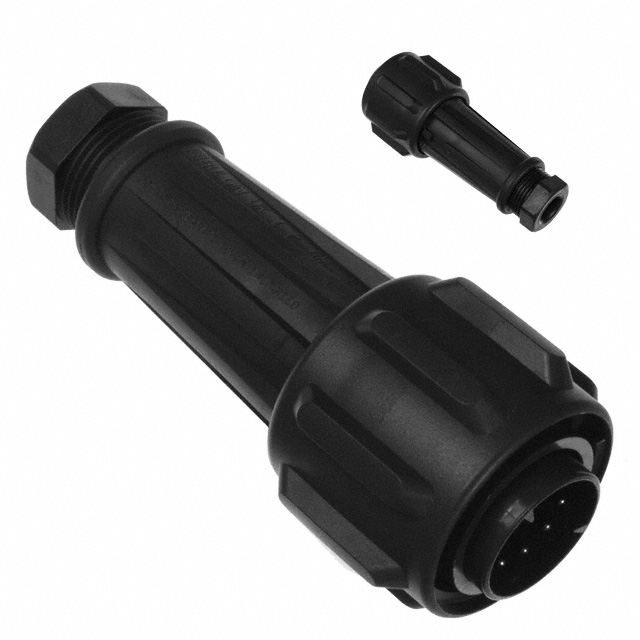

CIRCULAR CONNECTOR, EXPLORA SERIES, CABLE MOUNT PLUG, 10 CONTACTS, SCREW PIN, THREADED
Deep-Dive with AI
Search across all available documentation for this part.
EXP-0911/10/P
ActiveBULGIN LIMITED
CIRCULAR CONNECTOR, EXPLORA SERIES, CABLE MOUNT PLUG, 10 CONTACTS, SCREW PIN, THREADED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EXP-0911/10/P |
|---|---|
| Applications | Industrial |
| Backshell Material, Plating | Polyester |
| Cable Opening [Max] [custom] | 15 mm |
| Cable Opening [Max] [custom] | 0.591 in |
| Cable Opening [Min] [custom] | 13 mm |
| Cable Opening [Min] [custom] | 0.512 in |
| Color | Black |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Nickel |
| Contact Material | Brass |
| Current Rating (Amps) | 10 A |
| Features | Coupling Nut, UV Resistant, Backshell |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 10 |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -20 C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Polyester |
| Shielding | Unshielded |
| Termination | Screw |
| Voltage Rating | 250 VAC |
EXP-0911 Series
| Part | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Shielding | Termination | Number of Positions | Voltage Rating | Backshell Material, Plating | Mounting Type | Shell Material | Connector Type | Primary Material | Material Flammability Rating | Contact Material | Color | Contact Finish - Mating | Current Rating (Amps) | Features | Orientation | Applications | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions [custom] | Number of Positions [custom] | Number of Positions [custom] | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BULGIN LIMITED | 13 mm | 15 mm | 0.512 in | 0.591 in | Unshielded | Screw | 2 | 600 VAC | Polyester | Free Hanging (In-Line) | Polyester | Male Pins Plug | Plastic | UL94 V-0 | Brass | Black | Nickel | 18 A | Backshell Coupling Nut UV Resistant | Keyed | Industrial | IP68 - Dust Tight Waterproof | 55 °C | -20 C | ||||
BULGIN LIMITED | 13 mm | 15 mm | 0.512 in | 0.591 in | Unshielded | Screw | 600 VAC | Polyester | Free Hanging (In-Line) | Polyester | Female Sockets Plug | Plastic | UL94 V-0 | Brass | Black | Nickel | 18 A | Backshell Coupling Nut UV Resistant | Keyed | Industrial | IP68 - Dust Tight Waterproof | 55 °C | -20 C | 3 | 1 | 2 | ||
BULGIN LIMITED | 13 mm | 15 mm | 0.512 in | 0.591 in | Unshielded | Screw | 600 VAC | Polyester | Free Hanging (In-Line) | Polyester | Female Sockets Plug | Plastic | UL94 V-0 | Brass | Black | Nickel | 18 A | Backshell Coupling Nut UV Resistant | Keyed | Industrial | IP68 - Dust Tight Waterproof | 55 °C | -20 C | 4 | 3 | 1 | ||
BULGIN LIMITED | 13 mm | 15 mm | 0.512 in | 0.591 in | Unshielded | Screw | 10 | 250 VAC | Polyester | Free Hanging (In-Line) | Polyester | Male Pins Plug | Plastic | UL94 V-0 | Brass | Black | Nickel | 10 A | Backshell Coupling Nut UV Resistant | Keyed | Industrial | IP68 - Dust Tight Waterproof | 55 °C | -20 C | ||||
BULGIN LIMITED | 13 mm | 15 mm | 0.512 in | 0.591 in | Unshielded | Screw | 10 | 250 VAC | Polyester | Free Hanging (In-Line) | Polyester | Female Sockets Plug | Plastic | UL94 V-0 | Brass | Black | Nickel | 10 A | Backshell Coupling Nut UV Resistant | Keyed | Industrial | IP68 - Dust Tight Waterproof | 55 °C | -20 C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
EXP-0911 Series
10 (Power) Position Circular Connector Plug, Male Pins Screw
