VL-MPEE-V5E

Active

VersaLogic Corporation

MINIPCIE VIDEO EXPAN

Search across all available documentation for this part.

Active

VersaLogic Corporation

MINIPCIE VIDEO EXPAN

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 263.00

General part information

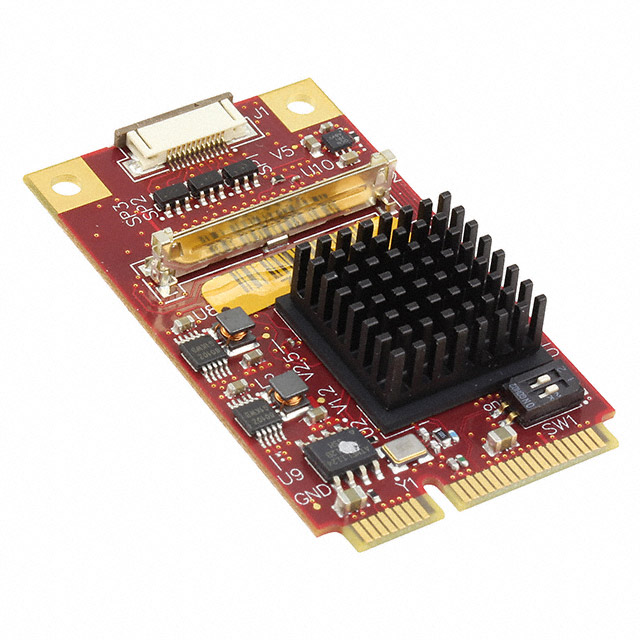

MINIPCIE VIDEO EXPAN

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	VL-MPEE-V5E	VL-MPEE Series

Analog Input:Output	-	8
Analog Input:Output	-	0
Cooling Type	Heat Sink	Heat Sink
Digital I/O Lines	-	3 - 12
Ethernet	-	10 - 1000 Mbps
Expansion Site/Bus	PCI Express	PCI Express
Form Factor	Mini PCIe module (full size)	Mini PCIe module (full size)
Function	Video Card/Module	Ethernet, miniPCIe, Video Card/Module, Ethernet / miniPCIe with POE+, Analog Input, Four serial ports
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Power (Watts)	1.52 W	0.59 - 450 W
RS-232 (422, 485)	-	4
Size / Dimension [x]	30 mm	30 mm
Size / Dimension [x]	1.181 in	1.181 in
Size / Dimension [y]	50.95 mm	50.95 mm
Size / Dimension [y]	2.005 in	2.005 in
Video Core	Silicon Motion SM750 2D Graphic Accelerator	Silicon Motion SM750 2D Graphic Accelerator
Video Outputs	VGA, LVDS	VGA, LVDS

1 GBE ETHERNET MINI PCIE MODULE

Part	Form Factor	Ethernet	Function	Power (Watts)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Expansion Site/Bus	Video Core	Cooling Type	Video Outputs	Analog Input:Output [custom]	Analog Input:Output [custom]	Digital I/O Lines	RS-232 (422, 485)
VersaLogic Corporation VL-MPEE-E6E	Mini PCIe module (full size)	10 Mbps, 100 Mbps, 1000 Mbps	Ethernet, miniPCIe	0.59 W	30 mm	50.95 mm	1.181 in	2.005 in	85 °C	-40 °C	PCI Express
VersaLogic Corporation VL-MPEE-V5E	Mini PCIe module (full size)		Video Card/Module	1.52 W	30 mm	50.95 mm	1.181 in	2.005 in	85 °C	-40 °C	PCI Express	Silicon Motion SM750 2D Graphic Accelerator	Heat Sink	LVDS, VGA
VersaLogic Corporation VL-MPEE-E6E-P	Mini PCIe module (full size)	10 Mbps, 100 Mbps, 1000 Mbps	Ethernet / miniPCIe with POE+	0.59 W	30 mm	50.95 mm	1.181 in	2.005 in	85 °C	-40 °C	PCI Express
VersaLogic Corporation VL-MPEE-A1E	Mini PCIe module (full size)		Analog Input	450 mW	30 mm	50.95 mm	1.181 in	2.005 in	85 °C	-40 °C	PCI Express				8	0	3
VersaLogic Corporation VL-MPEE-A2E	Mini PCIe module (full size)		Analog Input	450 mW	30 mm	50.95 mm	1.181 in	2.005 in	85 °C	-40 °C	PCI Express				8	0	3
VersaLogic Corporation VL-MPEE-U2E	Mini PCIe module (full size)		Four serial ports	250 mW	30 mm	50.95 mm	1.181 in	2.005 in	85 °C	-40 °C	PCI Express						12	4
