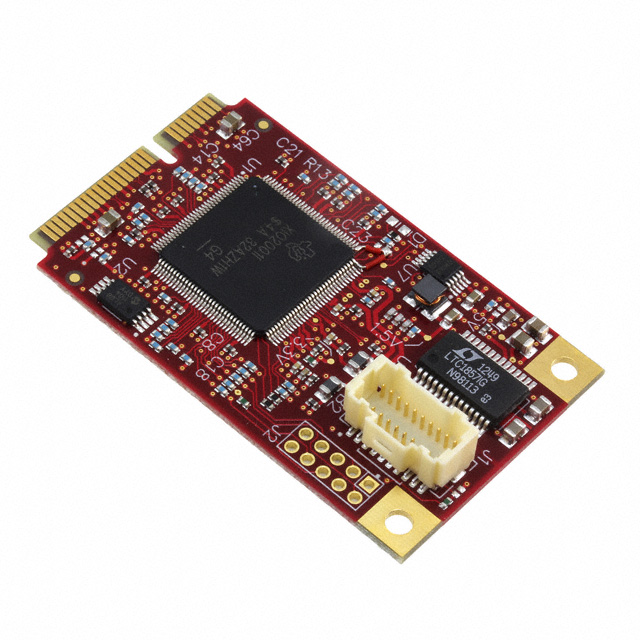

VL-MPEE-A1E

Active

VersaLogic Corporation

MINIPCIE A/D 8X 12-BIT

Search across all available documentation for this part.

Active

VersaLogic Corporation

MINIPCIE A/D 8X 12-BIT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 141.00

General part information

MINIPCIE A/D 8X 12-BIT

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	VL-MPEE-A1E	VL-MPEE Series

Analog Input:Output [custom]	8	8
Analog Input:Output [custom]	0	0
Cooling Type	-	Heat Sink
Digital I/O Lines	3	3 - 12
Ethernet	-	10 - 1000 Mbps
Expansion Site/Bus	PCI Express	PCI Express
Form Factor	Mini PCIe module (full size)	Mini PCIe module (full size)
Function	Analog Input	Ethernet, miniPCIe, Video Card/Module, Ethernet / miniPCIe with POE+, Analog Input, Four serial ports
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Power (Watts)	450 mW	0.59 - 450 W
RS-232 (422, 485)	-	4
Size / Dimension [x]	30 mm	30 mm
Size / Dimension [x]	1.181 in	1.181 in
Size / Dimension [y]	50.95 mm	50.95 mm
Size / Dimension [y]	2.005 in	2.005 in
Video Core	-	Silicon Motion SM750 2D Graphic Accelerator
Video Outputs	-	VGA, LVDS

1 GBE ETHERNET MINI PCIE MODULE

Part	Form Factor	Ethernet	Function	Power (Watts)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Expansion Site/Bus	Video Core	Cooling Type	Video Outputs	Analog Input:Output [custom]	Analog Input:Output [custom]	Digital I/O Lines	RS-232 (422, 485)
VersaLogic Corporation VL-MPEE-E6E	Mini PCIe module (full size)	10 Mbps, 100 Mbps, 1000 Mbps	Ethernet, miniPCIe	0.59 W	30 mm	50.95 mm	1.181 in	2.005 in	85 °C	-40 °C	PCI Express
VersaLogic Corporation VL-MPEE-V5E	Mini PCIe module (full size)		Video Card/Module	1.52 W	30 mm	50.95 mm	1.181 in	2.005 in	85 °C	-40 °C	PCI Express	Silicon Motion SM750 2D Graphic Accelerator	Heat Sink	LVDS, VGA
VersaLogic Corporation VL-MPEE-E6E-P	Mini PCIe module (full size)	10 Mbps, 100 Mbps, 1000 Mbps	Ethernet / miniPCIe with POE+	0.59 W	30 mm	50.95 mm	1.181 in	2.005 in	85 °C	-40 °C	PCI Express
VersaLogic Corporation VL-MPEE-A1E	Mini PCIe module (full size)		Analog Input	450 mW	30 mm	50.95 mm	1.181 in	2.005 in	85 °C	-40 °C	PCI Express				8	0	3
VersaLogic Corporation VL-MPEE-A2E	Mini PCIe module (full size)		Analog Input	450 mW	30 mm	50.95 mm	1.181 in	2.005 in	85 °C	-40 °C	PCI Express				8	0	3
VersaLogic Corporation VL-MPEE-U2E	Mini PCIe module (full size)		Four serial ports	250 mW	30 mm	50.95 mm	1.181 in	2.005 in	85 °C	-40 °C	PCI Express						12	4
