Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MSP430F2417TZQW | MSP430F2417 Series |
|---|---|---|
| Connectivity | IrDA, LINbus, SCI, UART/USART, I2C, SPI | IrDA, LINbus, SCI, UART/USART, I2C, SPI |
| Core Processor | MSP430 CPU16 | MSP430 CPU16 |
| Core Size | 16-Bit | 16-Bit |
| Data Converters | A/D 8x12b | A/D 8x12b, D/A 2x12b |
| Mounting Type | Surface Mount | Surface Mount |
| Number of I/O | 64 | 48 - 64 |
| Operating Temperature [Max] | 105 °C | 105 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Oscillator Type | Internal | Internal |
| Package / Case | 113-VFBGA | 64-LQFP, 113-VFBGA, 80-LQFP |
| Peripherals | Brown-out Detect/Reset, DMA, WDT, POR, PWM | Brown-out Detect/Reset, DMA, WDT, POR, PWM |
| Program Memory Size | 92 KB | 92 KB |
| Program Memory Type | FLASH | FLASH |
| RAM Size | 8K x 8 | 8K x 8 |
| Speed | 16 MHz | 16 MHz |
| Supplier Device Package | 113-BGA Microstar Junior (7x7) | 64-LQFP (10x10), 113-BGA Microstar Junior (7x7), 113-NFBGA (7x7) |
| Voltage - Supply (Vcc/Vdd) [Max] | 3.6 V | 3.6 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 1.8 V | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
MSP430F2417 Series
16 MHZ MCU WITH 92KB FLASH, 8KB SRAM, 12-BIT ADC, COMPARATOR, I2C/SPI/UART, HW MULTIPLIER
| Part | Oscillator Type | Package / Case | Connectivity | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Core Size | Core Processor | Speed | Number of I/O | Data Converters | Peripherals | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Program Memory Size | Mounting Type | RAM Size | Program Memory Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments MSP430F2417TPMR | Internal | 64-LQFP | I2C, IrDA, LINbus, SCI, SPI, UART/USART | 64-LQFP (10x10) | 105 °C | -40 °C | 16-Bit | MSP430 CPU16 | 16 MHz | 48 | A/D 8x12b | Brown-out Detect/Reset, DMA, POR, PWM, WDT | 3.6 V | 1.8 V | 92 KB | Surface Mount | 8K x 8 | FLASH |
Texas Instruments MSP430F2417TZQW | Internal | 113-VFBGA | I2C, IrDA, LINbus, SCI, SPI, UART/USART | 113-BGA Microstar Junior (7x7) | 105 °C | -40 °C | 16-Bit | MSP430 CPU16 | 16 MHz | 64 | A/D 8x12b | Brown-out Detect/Reset, DMA, POR, PWM, WDT | 3.6 V | 1.8 V | 92 KB | Surface Mount | 8K x 8 | FLASH |
Texas Instruments MSP430F2417TZQWR | Internal | 113-VFBGA | I2C, IrDA, LINbus, SCI, SPI, UART/USART | 113-BGA Microstar Junior (7x7) | 105 °C | -40 °C | 16-Bit | MSP430 CPU16 | 16 MHz | 64 | A/D 8x12b | Brown-out Detect/Reset, DMA, POR, PWM, WDT | 3.6 V | 1.8 V | 92 KB | Surface Mount | 8K x 8 | FLASH |
Texas Instruments MSP430F2417TPN | Internal | 80-LQFP | I2C, IrDA, LINbus, SCI, SPI, UART/USART | 105 °C | -40 °C | 16-Bit | MSP430 CPU16 | 16 MHz | 64 | A/D 8x12b | Brown-out Detect/Reset, DMA, POR, PWM, WDT | 3.6 V | 1.8 V | 92 KB | Surface Mount | 8K x 8 | FLASH | |
Texas Instruments MSP430F2417TPNR | Internal | 80-LQFP | I2C, IrDA, LINbus, SCI, SPI, UART/USART | 105 °C | -40 °C | 16-Bit | MSP430 CPU16 | 16 MHz | 64 | A/D 8x12b | Brown-out Detect/Reset, DMA, POR, PWM, WDT | 3.6 V | 1.8 V | 92 KB | Surface Mount | 8K x 8 | FLASH | |
Texas Instruments MSP430F2417TPM | Internal | 64-LQFP | I2C, IrDA, LINbus, SCI, SPI, UART/USART | 64-LQFP (10x10) | 105 °C | -40 °C | 16-Bit | MSP430 CPU16 | 16 MHz | 48 | A/D 8x12b | Brown-out Detect/Reset, DMA, POR, PWM, WDT | 3.6 V | 1.8 V | 92 KB | Surface Mount | 8K x 8 | FLASH |
Texas Instruments MSP430F2417TZCAR | Internal | 113-VFBGA | I2C, IrDA, LINbus, SCI, SPI, UART/USART | 113-NFBGA (7x7) | 105 °C | -40 °C | 16-Bit | MSP430 CPU16 | 16 MHz | 64 | A/D 8x12b, D/A 2x12b | Brown-out Detect/Reset, DMA, POR, PWM, WDT | 3.6 V | 1.8 V | 92 KB | Surface Mount | 8K x 8 | FLASH |
Description
General part information
MSP430F2417 Series

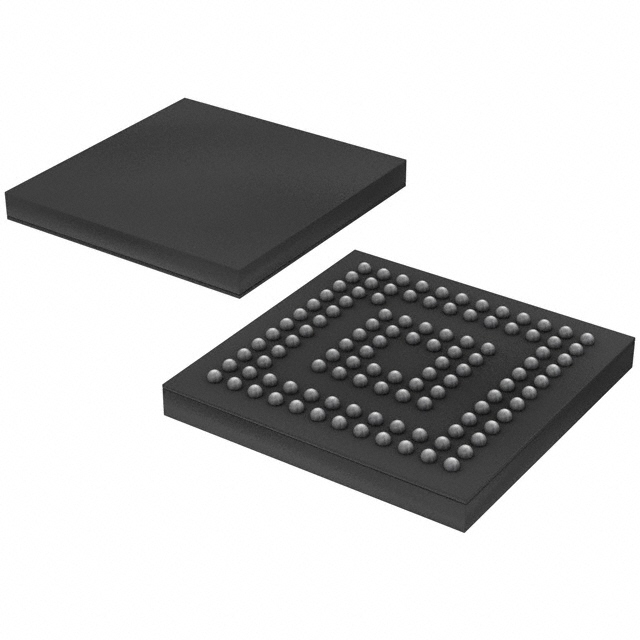

MSP430 CPU16 MSP430F2xx Microcontroller IC 16-Bit 16MHz 92KB (92K x 8 + 256B) FLASH 113-BGA Microstar Junior (7x7)
