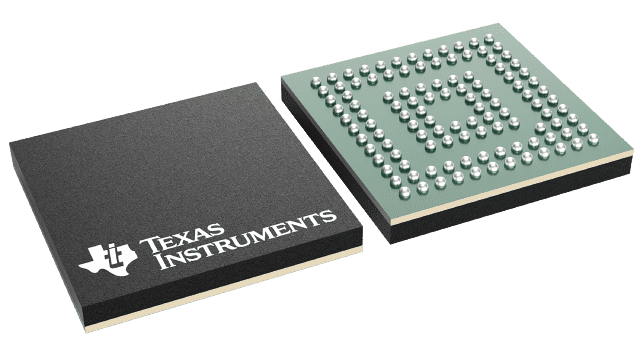

MSP430F2417TZCAR

Active

Texas Instruments

16 MHZ MCU WITH 92KB FLASH, 8KB SRAM, 12-BIT ADC, COMPARATOR, I2C/SPI/UART, HW MULTIPLIER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsLi-Ion Battery Charger Solution Using an MSP430™ MCU (Rev. B)MSP430 LFXT1 Oscillator Accuracy (Rev. A)+33

MSP430F2417TZCAR

Active

Texas Instruments

16 MHZ MCU WITH 92KB FLASH, 8KB SRAM, 12-BIT ADC, COMPARATOR, I2C/SPI/UART, HW MULTIPLIER

Deep-Dive with AI

DocumentsLi-Ion Battery Charger Solution Using an MSP430™ MCU (Rev. B)MSP430 LFXT1 Oscillator Accuracy (Rev. A)+33

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MSP430F2417TZCAR	MSP430F2417 Series

Connectivity	IrDA, LINbus, SCI, UART/USART, I2C, SPI	IrDA, LINbus, SCI, UART/USART, I2C, SPI
Core Processor	MSP430 CPU16	MSP430 CPU16
Core Size	16-Bit	16-Bit
Data Converters	D/A 2x12b, A/D 8x12b	A/D 8x12b, D/A 2x12b
Mounting Type	Surface Mount	Surface Mount
Number of I/O	64	48 - 64
Operating Temperature [Max]	105 °C	105 °C
Operating Temperature [Min]	-40 °C	-40 °C
Oscillator Type	Internal	Internal
Package / Case	113-VFBGA	64-LQFP, 113-VFBGA, 80-LQFP
Peripherals	Brown-out Detect/Reset, DMA, WDT, POR, PWM	Brown-out Detect/Reset, DMA, WDT, POR, PWM
Program Memory Size	92 KB	92 KB
Program Memory Type	FLASH	FLASH
RAM Size	8K x 8	8K x 8
Speed	16 MHz	16 MHz
Supplier Device Package	113-NFBGA (7x7)	64-LQFP (10x10), 113-BGA Microstar Junior (7x7), 113-NFBGA (7x7)
Voltage - Supply (Vcc/Vdd) [Max]	3.6 V	3.6 V
Voltage - Supply (Vcc/Vdd) [Min]	1.8 V	1.8 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2500	$ 5.58
Texas Instruments	LARGE T&R	1	$ 7.83
		100	$ 6.38
		250	$ 5.01
		1000	$ 4.25

MSP430F2417 Series

16 MHZ MCU WITH 92KB FLASH, 8KB SRAM, 12-BIT ADC, COMPARATOR, I2C/SPI/UART, HW MULTIPLIER

Part	Oscillator Type	Package / Case	Connectivity	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Core Size	Core Processor	Speed	Number of I/O	Data Converters	Peripherals	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Program Memory Size	Mounting Type	RAM Size	Program Memory Type
Texas Instruments MSP430F2417TPMR	Internal	64-LQFP	I2C, IrDA, LINbus, SCI, SPI, UART/USART	64-LQFP (10x10)	105 °C	-40 °C	16-Bit	MSP430 CPU16	16 MHz	48	A/D 8x12b	Brown-out Detect/Reset, DMA, POR, PWM, WDT	3.6 V	1.8 V	92 KB	Surface Mount	8K x 8	FLASH
Texas Instruments MSP430F2417TZQW	Internal	113-VFBGA	I2C, IrDA, LINbus, SCI, SPI, UART/USART	113-BGA Microstar Junior (7x7)	105 °C	-40 °C	16-Bit	MSP430 CPU16	16 MHz	64	A/D 8x12b	Brown-out Detect/Reset, DMA, POR, PWM, WDT	3.6 V	1.8 V	92 KB	Surface Mount	8K x 8	FLASH
Texas Instruments MSP430F2417TZQWR	Internal	113-VFBGA	I2C, IrDA, LINbus, SCI, SPI, UART/USART	113-BGA Microstar Junior (7x7)	105 °C	-40 °C	16-Bit	MSP430 CPU16	16 MHz	64	A/D 8x12b	Brown-out Detect/Reset, DMA, POR, PWM, WDT	3.6 V	1.8 V	92 KB	Surface Mount	8K x 8	FLASH
Texas Instruments MSP430F2417TPN	Internal	80-LQFP	I2C, IrDA, LINbus, SCI, SPI, UART/USART		105 °C	-40 °C	16-Bit	MSP430 CPU16	16 MHz	64	A/D 8x12b	Brown-out Detect/Reset, DMA, POR, PWM, WDT	3.6 V	1.8 V	92 KB	Surface Mount	8K x 8	FLASH
Texas Instruments MSP430F2417TPNR	Internal	80-LQFP	I2C, IrDA, LINbus, SCI, SPI, UART/USART		105 °C	-40 °C	16-Bit	MSP430 CPU16	16 MHz	64	A/D 8x12b	Brown-out Detect/Reset, DMA, POR, PWM, WDT	3.6 V	1.8 V	92 KB	Surface Mount	8K x 8	FLASH
Texas Instruments MSP430F2417TPM	Internal	64-LQFP	I2C, IrDA, LINbus, SCI, SPI, UART/USART	64-LQFP (10x10)	105 °C	-40 °C	16-Bit	MSP430 CPU16	16 MHz	48	A/D 8x12b	Brown-out Detect/Reset, DMA, POR, PWM, WDT	3.6 V	1.8 V	92 KB	Surface Mount	8K x 8	FLASH
Texas Instruments MSP430F2417TZCAR	Internal	113-VFBGA	I2C, IrDA, LINbus, SCI, SPI, UART/USART	113-NFBGA (7x7)	105 °C	-40 °C	16-Bit	MSP430 CPU16	16 MHz	64	A/D 8x12b, D/A 2x12b	Brown-out Detect/Reset, DMA, POR, PWM, WDT	3.6 V	1.8 V	92 KB	Surface Mount	8K x 8	FLASH

Description

General part information

MSP430F2417 Series

The Texas Instruments MSP430™ family of ultra-low-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The calibrated digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1 µs.

The MSP430F261x and MSP430F241x series are microcontroller configurations with two built-in 16-bit timers, a fast 12-bit ADC, a comparator, two 12-bit DACs, four USCI modules, DMA, and up to 64 I/O pins. The MSP430F241x devices are identical to the MSP430F261x devices, with the exception that the DAC12 and the DMA modules are not implemented.

The LQFP-64 package is also available as a nonmagnetic package for medical imaging applications.

Documents

Technical documentation and resources

MSP430F2417TZCAR

Deep-Dive with AI

MSP430F2417TZCAR

Deep-Dive with AI

Technical Specifications

Pricing

MSP430F2417 Series

Description

MSP430F2417 Series

Documents

Li-Ion Battery Charger Solution Using an MSP430™ MCU (Rev. B)

MSP430 LFXT1 Oscillator Accuracy (Rev. A)

Migrating from MSP430 F2xx and G2xx families to MSP430 FR4xx and FR2xx family (Rev. G)

1.8V – 5.5V Input, High-Efficiency DCDC Converter Reference Design for MSP430 (Rev. B)

MSP430F2417 Microcontroller Errata (Rev. T)

Migration Guide From MSP430 MCUs to MSPM0 MCUs (Rev. A)

MSP430F261x, MSP430F241x Mixed-Signal Microcontrollers datasheet (Rev. M)

Migrating from the MSP430F2xx Family to the MSP430FR57xx Family (Rev. A)

CRC Implementation with MSP430 MCUs (Rev. A)

Design Considerations When Using the MSP430 Graphics Library

Advanced Debugging Using the Enhanced Emulation Module (EEM) With CCS v6 (Rev. F)

MSP430 System ESD Troubleshooting Guide

Using the TPS3619 With MSP430 Microcontrollers (Rev. B)

Powering the MSP430 from a High Voltage Input using the TPS62122 (Rev. C)

Efficient Multiplication and Division Using MSP430 MCUs (Rev. A)

Software Coding Techniques for MSP430™ MCUs (Rev. B)

MSP430 Flash Memory Characteristics (Rev. B)

General Oversampling of MSP ADCs for Higher Resolution (Rev. A)

Tiny DCDC Converter Reference Design (Rev. A)

Wave Digital Filtering Using an MSP430 MCU (Rev. A)

Migrating from the USCI Module to the eUSCI Module (Rev. A)

Power Management Solutions for Ultra-Low-Power 16-Bit MSP430 MCUs (Rev. D)

Random Number Generation Using MSP430™ MCUs (Rev. A)

ESD Diode Current Specification (Rev. B)

Migrating from the MSP430F2xx,G2xx Family to the MSP430FR58xx/FR59xx/68xx/69xx (Rev. E)

Implementing An Ultra-Low-Power Keypad Interface With MSP430 MCUs (Rev. A)

Programming a Flash-Based MSP430 MCU Using the JTAG Interface (Rev. H)

MSP430 32-kHz Crystal Oscillators (Rev. D)

Mixing C and Assembler With MSP430™ MCUs (Rev. A)

Interfacing the 3-V MSP430 MCU to 5-V Circuits (Rev. A)

MSP Code Protection Features

MSP430 MCUs Development Guide Book (Rev. A)

MSP430F2xx, MSP430G2xx Family User's Guide (Rev. K)

Understanding MSP430 Flash Data Retention (Rev. A)
