0621000101

Active

Molex

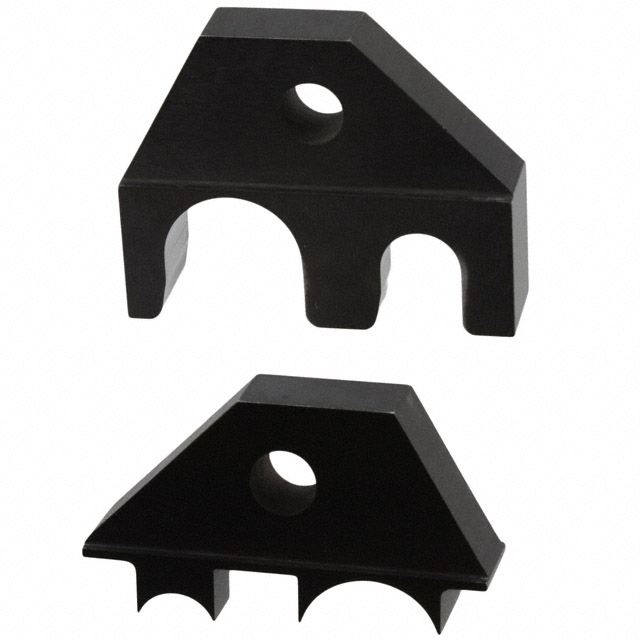

DIE FERRULE CRIMP-621000100 IDT

Search across all available documentation for this part.

Active

Molex

DIE FERRULE CRIMP-621000100 IDT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1666.81

General part information

Tool Die Set For 71256-0001

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	0621000101	062100 Series

	-	-
Accessory Type	-	Adapter Kit
Compatible Tools	62100-0100, 11-31-6379	62100-0900, 62100-4200, 62100-4100, 62100-0100, 11-31-6379, 11-31-1570, 63600-0478, 63800-0478
For Use With/Related Products	71256-0001	D-Sub Backshell Assembly Kits, Backplane Connectors, Card Edge Connectors, Rectangular Connectors, 71256-0001, Rectangular IDC Connectors, Rectangular IDC Connectors, 28 AWG, 76967-0001, 76120-0001, 170305-0001, 170305-0118, 76043-0001, Receptacle Connectors, 78689-0001, Circular Connectors, Memory Card Connectors, 78468-0001, Backplane Contacts, Solid State Lighting Contacts, 78839-1101, 78839-1102, 78839-0200, 78839-0100
For Use With/Related Products	-	22 AWG
For Use With/Related Products	-	24 AWG
Ratcheting	-	Ratchet
Tool Type	Die Set	Die Set - Upper, Insertion Tool, Extraction Tool, Die Set, Die Head, Terminating Head, Hand Crimper, Bench Press, Insertion/Extraction Tool Handle, Die Set - Lower
Tool Type Feature	-	Without Die Set
Wire Entry Location	-	Side Entry, Top Entry
Wire Gauge or Range - AWG	-	28 AWG
Wire Gauge or Range - AWG	-	28 AWG
Wire Gauge or Range - AWG	-	26 AWG

STATIONARY FORM TOOL

Part	Compatible Tools	Tool Type	For Use With/Related Products	For Use With/Related Products [Min]	For Use With/Related Products [Max]
Molex 0621000902	62100-0900, 62100-4100, 62100-4200	Die Set - Upper	D-Sub Backshell Assembly Kits
Molex 0621005110		Insertion Tool	Backplane Connectors
Molex 0621008800		Extraction Tool	Card Edge Connectors
Molex 0621006000		Extraction Tool	Rectangular Connectors
Molex 0621000101	11-31-6379, 62100-0100	Die Set	71256-0001
Molex 0621006600		Extraction Tool	Rectangular Connectors
Molex 0621000700	11-31-1570, 63600-0478	Die Head	Rectangular IDC Connectors	22 AWG	24 AWG
Molex 0621000800		Insertion Tool
Molex 0621002000	63600-0478	Terminating Head	Rectangular IDC Connectors, 28 AWG
Molex 0621009400		Extraction Tool	170305-0001, 170305-0118, 76043-0001, 76120-0001, 76967-0001
