0621000700

Active

Molex

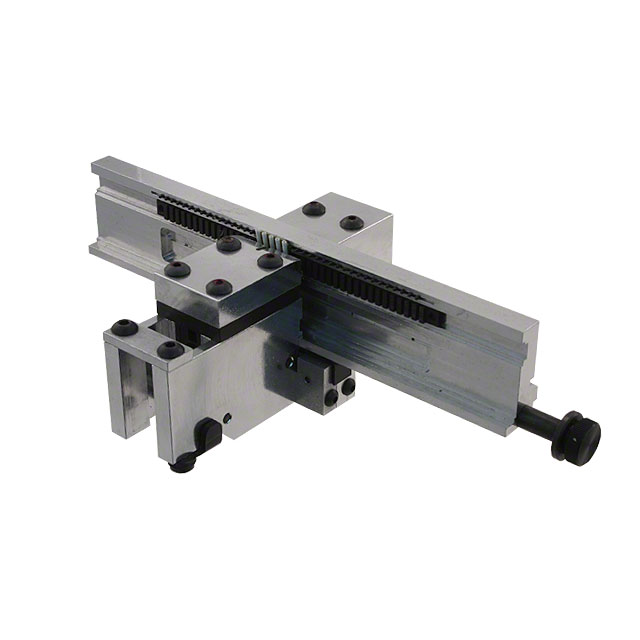

TOOL HAND DIESET MODULE

Search across all available documentation for this part.

Active

Molex

TOOL HAND DIESET MODULE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2355.16

General part information

Tool Die Head For Rectangular IDC Connectors, 22-24 AWG

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	0621000700	062100 Series

	-	-
Accessory Type	-	Adapter Kit
Compatible Tools	11-31-1570, 63600-0478	62100-0900, 62100-4200, 62100-4100, 62100-0100, 11-31-6379, 11-31-1570, 63600-0478, 63800-0478
For Use With/Related Products	Rectangular IDC Connectors	D-Sub Backshell Assembly Kits, Backplane Connectors, Card Edge Connectors, Rectangular Connectors, 71256-0001, Rectangular IDC Connectors, Rectangular IDC Connectors, 28 AWG, 76967-0001, 76120-0001, 170305-0001, 170305-0118, 76043-0001, Receptacle Connectors, 78689-0001, Circular Connectors, Memory Card Connectors, 78468-0001, Backplane Contacts, Solid State Lighting Contacts, 78839-1101, 78839-1102, 78839-0200, 78839-0100
For Use With/Related Products [Max]	24 AWG	24 AWG
For Use With/Related Products [Min]	22 AWG	22 AWG
Ratcheting	-	Ratchet
Tool Type	Die Head	Die Set - Upper, Insertion Tool, Extraction Tool, Die Set, Die Head, Terminating Head, Hand Crimper, Bench Press, Insertion/Extraction Tool Handle, Die Set - Lower
Tool Type Feature	-	Without Die Set
Wire Entry Location	-	Side Entry, Top Entry
Wire Gauge or Range - AWG	-	28 AWG
Wire Gauge or Range - AWG	-	28 AWG
Wire Gauge or Range - AWG	-	26 AWG

STATIONARY FORM TOOL

Part	Compatible Tools	Tool Type	For Use With/Related Products	For Use With/Related Products [Min]	For Use With/Related Products [Max]
Molex 0621000902	62100-0900, 62100-4100, 62100-4200	Die Set - Upper	D-Sub Backshell Assembly Kits
Molex 0621005110		Insertion Tool	Backplane Connectors
Molex 0621008800		Extraction Tool	Card Edge Connectors
Molex 0621006000		Extraction Tool	Rectangular Connectors
Molex 0621000101	11-31-6379, 62100-0100	Die Set	71256-0001
Molex 0621006600		Extraction Tool	Rectangular Connectors
Molex 0621000700	11-31-1570, 63600-0478	Die Head	Rectangular IDC Connectors	22 AWG	24 AWG
Molex 0621000800		Insertion Tool
Molex 0621002000	63600-0478	Terminating Head	Rectangular IDC Connectors, 28 AWG
Molex 0621009400		Extraction Tool	170305-0001, 170305-0118, 76043-0001, 76120-0001, 76967-0001
