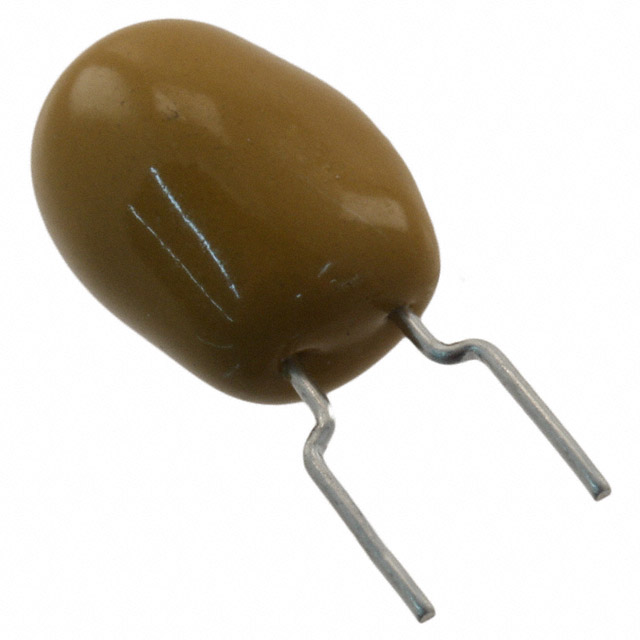

T356M226K050AT

Active

KEMET

TANTALUM CAPACITOR, POLAR, 22 ΜF, 50 V, ± 10%, PC PIN, 5.08 MM, 1 OHM

Search across all available documentation for this part.

Active

KEMET

TANTALUM CAPACITOR, POLAR, 22 ΜF, 50 V, ± 10%, PC PIN, 5.08 MM, 1 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	T356M226K050AT

Capacitance	22 µF
ESR (Equivalent Series Resistance)	1 Ohms
Features	General Purpose
Height - Seated (Max) [Max] [z]	18.6 mm
Height - Seated (Max) [Max] [z]	0.732 in
Lead Spacing	5.08 mm
Lead Spacing	0.2 in
Manufacturer Size Code	M
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [diameter]	0.402 in
Size / Dimension [diameter]	10.2 mm
Tolerance	10 %
Type	Conformal Coated
Voltage - Rated	50 VDC

Part	Features	Tolerance	Lead Spacing	Lead Spacing	Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Manufacturer Size Code	ESR (Equivalent Series Resistance)	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Voltage - Rated	Mounting Type
KEMET T356M226K050AT	General Purpose	10 %	5.08 mm	0.2 in	Conformal Coated	18.6 mm	0.732 in	Radial	M	1 Ohms	-55 °C	125 °C	0.402 in	10.2 mm	22 µF	50 VDC	Through Hole
KEMET T356M226M050AS	General Purpose	20 %	5.08 mm	0.2 in	Conformal Coated			Radial	M	1 Ohm	-55 °C	125 °C	0.402 in	10.2 mm	22 µF	50 VDC	Through Hole
KEMET T356M476K035AS	General Purpose	10 %	5.08 mm	0.2 in	Conformal Coated			Radial	M	800 mOhm	-55 °C	125 °C	0.402 in	10.2 mm	47 µF	35 V	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

22 µF Conformal Coated Tantalum Capacitors 50 V Radial 1Ohm
