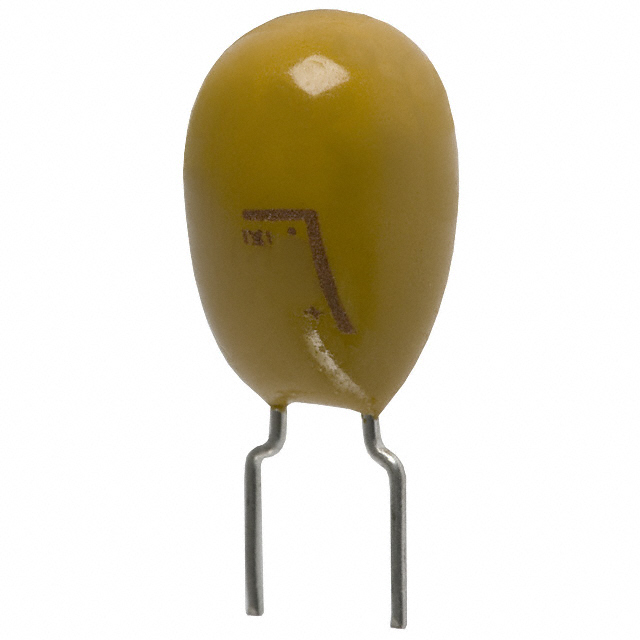

T356M476K035AS

Active

KEMET

CAP TANT 47UF 10% 35V RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP TANT 47UF 10% 35V RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	T356M476K035AS

Capacitance	47 µF
ESR (Equivalent Series Resistance)	800 mOhm
Features	General Purpose
Lead Spacing	5.08 mm
Lead Spacing	0.2 in
Manufacturer Size Code	M
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [diameter]	0.402 in
Size / Dimension [diameter]	10.2 mm
Tolerance	10 %
Type	Conformal Coated
Voltage - Rated	35 V

Part	Features	Tolerance	Lead Spacing	Lead Spacing	Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Manufacturer Size Code	ESR (Equivalent Series Resistance)	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Voltage - Rated	Mounting Type
KEMET T356M226K050AT	General Purpose	10 %	5.08 mm	0.2 in	Conformal Coated	18.6 mm	0.732 in	Radial	M	1 Ohms	-55 °C	125 °C	0.402 in	10.2 mm	22 µF	50 VDC	Through Hole
KEMET T356M226M050AS	General Purpose	20 %	5.08 mm	0.2 in	Conformal Coated			Radial	M	1 Ohm	-55 °C	125 °C	0.402 in	10.2 mm	22 µF	50 VDC	Through Hole
KEMET T356M476K035AS	General Purpose	10 %	5.08 mm	0.2 in	Conformal Coated			Radial	M	800 mOhm	-55 °C	125 °C	0.402 in	10.2 mm	47 µF	35 V	Through Hole
