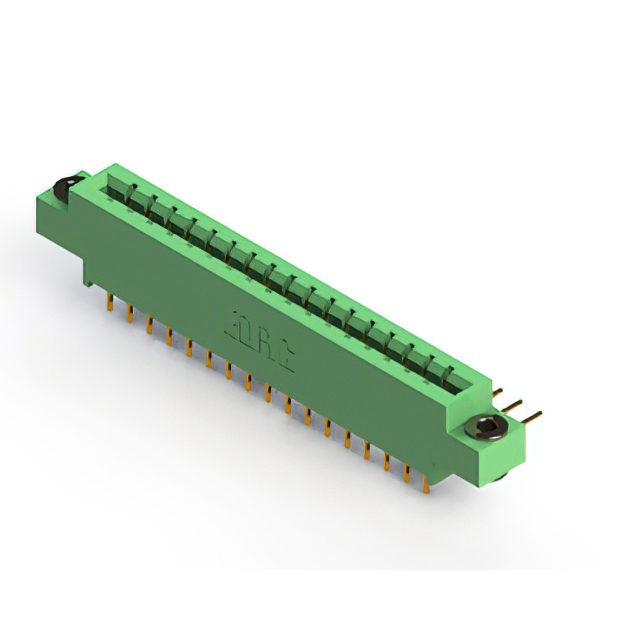

833-034-559-803

Active

EDAC Inc.

CONN EDGE DUAL FMALE 34POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

833-034-559-803

Active

EDAC Inc.

CONN EDGE DUAL FMALE 34POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	833-034-559-803

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Mount Opening, Floating Bobbin
Flange Feature [diameter]	2.95 mm
Flange Feature [diameter]	0.116 in
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole, Right Angle
Number of Positions	34
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

833-034 Series

...

Part	Pitch [x]	Pitch [x]	Number of Positions	Card Type	Color	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Termination	Number of Rows	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Material - Insulation	Read Out	Contact Type	Termination Rows	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Number of Positions/Bay/Row [custom]	Features	Flange Feature	Flange Feature
EDAC Inc. 833-034-524-202	0.156 in	3.96 mm	34	Non Specified - Dual Edge	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	2	Through Hole	125 °C	-40 °C	Female	Diallyl Phthalate (DAP)	Dual	Cantilever	2	Copper Alloy	10 Áin	0.25 Ám	Gold	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded
EDAC Inc. 833-034-544-103	0.156 in	3.96 mm	34	Non Specified - Single Edge	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Wire Wrap	1	Through Hole	125 °C	-40 °C	Female	Diallyl Phthalate (DAP)	Single	Cantilever	1	Copper Alloy	10 Áin	0.25 Ám	Gold	2.95 mm	0.116 in	Floating Bobbin Flush Mount	34
EDAC Inc. 833-034-559-803	0.156 in	3.96 mm	34	Non Specified - Dual Edge	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	2	Through Hole Right Angle	125 °C	-40 °C	Female	Diallyl Phthalate (DAP)	Dual	Cantilever	2	Copper Alloy	10 Áin	0.25 Ám	Gold	2.95 mm	0.116 in	Floating Bobbin Top Mount Opening
EDAC Inc. 833-034-556-204	0.156 in	3.96 mm	34	Non Specified - Dual Edge	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	2	Board Edge Straddle Mount	125 °C	-40 °C	Female	Diallyl Phthalate (DAP)	Dual	Cantilever	2	Copper Alloy	10 Áin	0.25 Ám	Gold	3.96 mm	0.156 in	Flush Mount Top Opening Unthreaded		Card Extender
EDAC Inc. 833-034-542-108	0.156 in	3.96 mm	34	Non Specified - Single Edge	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Wire Wrap	1	Through Hole	125 °C	-40 °C	Female	Diallyl Phthalate (DAP)	Single	Cantilever	1	Copper Alloy	10 Áin	0.25 Ám	Gold			4-40 Flush Mount Threaded Insert Top Opening	34
EDAC Inc. 833-034-556-804	0.156 in	3.96 mm	34	Non Specified - Dual Edge	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	2	Board Edge Straddle Mount	125 °C	-40 °C	Female	Diallyl Phthalate (DAP)	Dual	Cantilever	2	Copper Alloy	10 Áin	0.25 Ám	Gold	3.96 mm	0.156 in	Top Mount Opening Unthreaded		Card Extender
EDAC Inc. 833-034-558-604	0.156 in	3.96 mm	34	Non Specified - Single Edge	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	1	Through Hole Right Angle	125 °C	-40 °C	Female	Diallyl Phthalate (DAP)	Single	Cantilever	1	Copper Alloy	10 Áin	0.25 Ám	Gold	3.96 mm	0.156 in	Top Mount Opening Unthreaded	34
EDAC Inc. 833-034-558-612	0.156 in	3.96 mm	34	Non Specified - Single Edge	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	1	Through Hole Right Angle	125 °C	-40 °C	Female	Diallyl Phthalate (DAP)	Single	Cantilever	1	Copper Alloy	10 Áin	0.25 Ám	Gold			Side Mount Opening Unthreaded	34		3.25 mm	0.128 in
EDAC Inc. 833-034-523-812	0.156 in	3.96 mm	34	Non Specified - Dual Edge	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Solder	2	Through Hole	125 °C	-40 °C	Female	Diallyl Phthalate (DAP)	Dual	Cantilever	2	Copper Alloy	10 Áin	0.25 Ám	Gold			Side Mount Opening Unthreaded			3.25 mm	0.128 in
EDAC Inc. 833-034-541-212	0.156 in	3.96 mm	34	Non Specified - Dual Edge	Green	1.37 mm	0.054 "	1.78 mm	0.07 in	Wire Wrap	2	Through Hole	125 °C	-40 °C	Female	Diallyl Phthalate (DAP)	Dual	Cantilever	2	Copper Alloy	10 Áin	0.25 Ám	Gold			Side Mount Opening Unthreaded			3.25 mm	0.128 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 57.48
Newark	Each	1	$ 78.95
		100	$ 60.27
		250	$ 52.36
		500	$ 47.73
		1000	$ 39.63

Description

General part information

833-034 Series

34 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
