833-034-556-804
ActiveEDAC Inc.

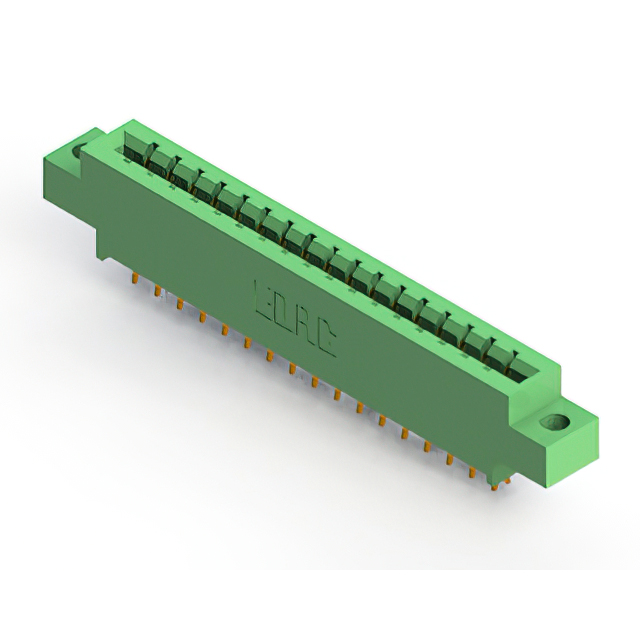

CONN EDGE DUAL FMALE 34POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
833-034-556-804
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 34POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 833-034-556-804 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | Top Mount Opening, Unthreaded |
| Flange Feature [diameter] | 0.156 in |
| Flange Feature [diameter] | 3.96 mm |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 34 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
833-034 Series
...
| Part | Pitch [x] | Pitch [x] | Number of Positions | Card Type | Color | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Termination | Number of Rows | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Gender | Material - Insulation | Read Out | Contact Type | Termination Rows | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Number of Positions/Bay/Row [custom] | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 0.156 in | 3.96 mm | 34 | Non Specified - Dual Edge | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 2 | Through Hole | 125 °C | -40 °C | Female | Diallyl Phthalate (DAP) | Dual | Cantilever | 2 | Copper Alloy | 10 Áin | 0.25 Ám | Gold | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | ||||
EDAC Inc. | 0.156 in | 3.96 mm | 34 | Non Specified - Single Edge | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 1 | Through Hole | 125 °C | -40 °C | Female | Diallyl Phthalate (DAP) | Single | Cantilever | 1 | Copper Alloy | 10 Áin | 0.25 Ám | Gold | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | 34 | |||
EDAC Inc. | 0.156 in | 3.96 mm | 34 | Non Specified - Dual Edge | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 2 | Through Hole Right Angle | 125 °C | -40 °C | Female | Diallyl Phthalate (DAP) | Dual | Cantilever | 2 | Copper Alloy | 10 Áin | 0.25 Ám | Gold | 2.95 mm | 0.116 in | Floating Bobbin Top Mount Opening | ||||
EDAC Inc. | 0.156 in | 3.96 mm | 34 | Non Specified - Dual Edge | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 2 | Board Edge Straddle Mount | 125 °C | -40 °C | Female | Diallyl Phthalate (DAP) | Dual | Cantilever | 2 | Copper Alloy | 10 Áin | 0.25 Ám | Gold | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | Card Extender | |||
EDAC Inc. | 0.156 in | 3.96 mm | 34 | Non Specified - Single Edge | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 1 | Through Hole | 125 °C | -40 °C | Female | Diallyl Phthalate (DAP) | Single | Cantilever | 1 | Copper Alloy | 10 Áin | 0.25 Ám | Gold | 4-40 Flush Mount Threaded Insert Top Opening | 34 | |||||
EDAC Inc. | 0.156 in | 3.96 mm | 34 | Non Specified - Dual Edge | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 2 | Board Edge Straddle Mount | 125 °C | -40 °C | Female | Diallyl Phthalate (DAP) | Dual | Cantilever | 2 | Copper Alloy | 10 Áin | 0.25 Ám | Gold | 3.96 mm | 0.156 in | Top Mount Opening Unthreaded | Card Extender | |||
EDAC Inc. | 0.156 in | 3.96 mm | 34 | Non Specified - Single Edge | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 1 | Through Hole Right Angle | 125 °C | -40 °C | Female | Diallyl Phthalate (DAP) | Single | Cantilever | 1 | Copper Alloy | 10 Áin | 0.25 Ám | Gold | 3.96 mm | 0.156 in | Top Mount Opening Unthreaded | 34 | |||
EDAC Inc. | 0.156 in | 3.96 mm | 34 | Non Specified - Single Edge | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 1 | Through Hole Right Angle | 125 °C | -40 °C | Female | Diallyl Phthalate (DAP) | Single | Cantilever | 1 | Copper Alloy | 10 Áin | 0.25 Ám | Gold | Side Mount Opening Unthreaded | 34 | 3.25 mm | 0.128 in | |||
EDAC Inc. | 0.156 in | 3.96 mm | 34 | Non Specified - Dual Edge | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Solder | 2 | Through Hole | 125 °C | -40 °C | Female | Diallyl Phthalate (DAP) | Dual | Cantilever | 2 | Copper Alloy | 10 Áin | 0.25 Ám | Gold | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | ||||
EDAC Inc. | 0.156 in | 3.96 mm | 34 | Non Specified - Dual Edge | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Wire Wrap | 2 | Through Hole | 125 °C | -40 °C | Female | Diallyl Phthalate (DAP) | Dual | Cantilever | 2 | Copper Alloy | 10 Áin | 0.25 Ám | Gold | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 52.68 | |
Description
General part information
833-034 Series
34 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
