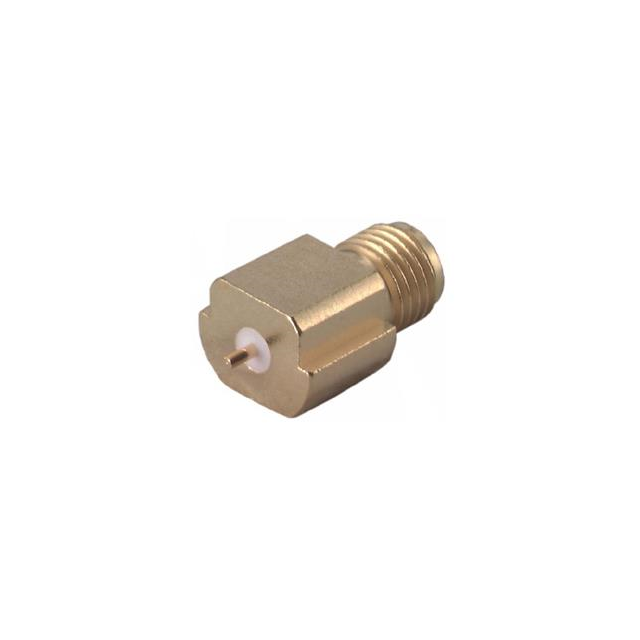

Specification	82_SMA-S50-0-45/111_NE

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Jack, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE), Perfluoroalkoxy (PFA)
Fastening Type	Threaded
Frequency - Max	18 GHz
Housing Color	Gold
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Type	Cutout, Surface Mount, Board Edge
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Solder

SMA Series

Part	Contact Termination	Housing Color	Connector Type	Center Contact Material	Shield Termination	Fastening Type	Impedance	Number of Ports	Mounting Type	Connector Style	Frequency - Max	Cable Group	Operating Temperature (Min)	Operating Temperature (Max)	Body Material	Mating Cycles	Center Contact Plating	Dielectric Material	Body Finish	Mounting Feature	Cable Group Diameter (Semi Rigid)
Huber+Suhner, Inc. 11_SMA-R50-2-113/133_NE	Solder	Silver	Female Socket Plug	Beryllium Copper	Crimp	Threaded	50 Ohm	1	Free Hanging (In-Line)	RP-SMA	18 GHz	RD-316	-65 °C	165 °C	Brass	500 cycles	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	White Bronze
Huber+Suhner, Inc. 82_SMA-S50-0-45/111_NE	Solder	Gold	Female Socket Jack	Beryllium Copper	Solder	Threaded	50 Ohm	1	Board Edge Cutout Surface Mount	SMA	18 GHz		-65 °C	165 °C	Brass	500 cycles	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold
Huber+Suhner, Inc. 23_SMA-50-0-167/199_NE	Solder	Silver	Female Socket Jack	Beryllium Copper	Solder	Threaded	50 Ohm	1	Panel Mount	SMA	18 GHz									Flange
Huber+Suhner, Inc. 23_SMA-50-0-168/199_NE	Solder	Silver	Female Socket Jack	Beryllium Copper	Solder	Threaded	50 Ohm	1	Panel Mount	SMA	18 GHz									Flange
Huber+Suhner, Inc. 24_SMA-50-2-14/111_NE	Solder	Gold	Female Socket Jack	Beryllium Copper	Crimp	Threaded	50 Ohm	1	Panel Mount	SMA	18 GHz	188 316 RG-174	-65 °C	165 °C	Beryllium Copper	500 cycles	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	Bulkhead Front Side Nut
Huber+Suhner, Inc. 11_SMA-50-3-55/199_NE	Solder	Silver	Male Pin Plug	Beryllium Copper	Crimp	Threaded	50 Ohm	1	Free Hanging (In-Line)	SMA	18 GHz	RG-58
Huber+Suhner, Inc. 21_SMA-50-2-15/111_NH	Solder	Gold	Female Socket Jack	Beryllium Copper	Solder	Threaded	50 Ohm	1	Free Hanging (In-Line)	SMA	18 GHz	RG-405	-65 °C	165 °C	Beryllium Copper	500 cycles	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold		0.086 in
Huber+Suhner, Inc. 23_SMA-50-0-41/133_NH	Solder Cup	Silver	Female Socket Jack	Beryllium Copper	Solder	Threaded	50 Ohm	1	Panel Mount	SMA	18 GHz		-65 °C	125 °C	Brass	500 cycles	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	White Bronze	Flange
Huber+Suhner, Inc. 85_SMA-50-0-101/111_NE	Solder	Gold	Female Socket Jack	Beryllium Copper	Solder	Threaded	50 Ohm	1	Right Angle Through Hole	SMA	18 GHz		-65 °C	165 °C	Brass	500 cycles	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold
Huber+Suhner, Inc. 11_SMA-50-3-15/111_NH	Solder	Gold	Male Pin Plug	Beryllium Copper	Solder	Threaded	50 Ohm	1	Free Hanging (In-Line)	SMA	18 GHz	RG-402									0.141 in
