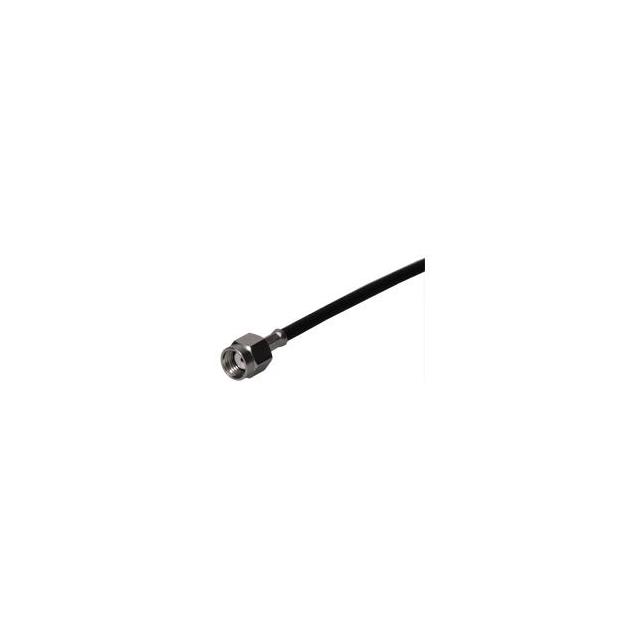

Specification	11_SMA-R50-2-113/133_NE

Body Finish	White Bronze
Body Material	Brass
Cable Group	RD-316
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	RP-SMA
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE), Perfluoroalkoxy (PFA)
Fastening Type	Threaded
Frequency - Max	18 GHz
Housing Color	Silver
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Crimp

SMA Series

Part	Contact Termination	Housing Color	Connector Type	Center Contact Material	Shield Termination	Fastening Type	Impedance	Number of Ports	Mounting Type	Connector Style	Frequency - Max	Cable Group	Operating Temperature (Min)	Operating Temperature (Max)	Body Material	Mating Cycles	Center Contact Plating	Dielectric Material	Body Finish	Mounting Feature	Cable Group Diameter (Semi Rigid)
Huber+Suhner, Inc. 11_SMA-R50-2-113/133_NE	Solder	Silver	Female Socket Plug	Beryllium Copper	Crimp	Threaded	50 Ohm	1	Free Hanging (In-Line)	RP-SMA	18 GHz	RD-316	-65 °C	165 °C	Brass	500 cycles	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	White Bronze
Huber+Suhner, Inc. 82_SMA-S50-0-45/111_NE	Solder	Gold	Female Socket Jack	Beryllium Copper	Solder	Threaded	50 Ohm	1	Board Edge Cutout Surface Mount	SMA	18 GHz		-65 °C	165 °C	Brass	500 cycles	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold
Huber+Suhner, Inc. 23_SMA-50-0-167/199_NE	Solder	Silver	Female Socket Jack	Beryllium Copper	Solder	Threaded	50 Ohm	1	Panel Mount	SMA	18 GHz									Flange
Huber+Suhner, Inc. 23_SMA-50-0-168/199_NE	Solder	Silver	Female Socket Jack	Beryllium Copper	Solder	Threaded	50 Ohm	1	Panel Mount	SMA	18 GHz									Flange
Huber+Suhner, Inc. 24_SMA-50-2-14/111_NE	Solder	Gold	Female Socket Jack	Beryllium Copper	Crimp	Threaded	50 Ohm	1	Panel Mount	SMA	18 GHz	188 316 RG-174	-65 °C	165 °C	Beryllium Copper	500 cycles	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	Bulkhead Front Side Nut
Huber+Suhner, Inc. 11_SMA-50-3-55/199_NE	Solder	Silver	Male Pin Plug	Beryllium Copper	Crimp	Threaded	50 Ohm	1	Free Hanging (In-Line)	SMA	18 GHz	RG-58
Huber+Suhner, Inc. 21_SMA-50-2-15/111_NH	Solder	Gold	Female Socket Jack	Beryllium Copper	Solder	Threaded	50 Ohm	1	Free Hanging (In-Line)	SMA	18 GHz	RG-405	-65 °C	165 °C	Beryllium Copper	500 cycles	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold		0.086 in
Huber+Suhner, Inc. 23_SMA-50-0-41/133_NH	Solder Cup	Silver	Female Socket Jack	Beryllium Copper	Solder	Threaded	50 Ohm	1	Panel Mount	SMA	18 GHz		-65 °C	125 °C	Brass	500 cycles	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	White Bronze	Flange
Huber+Suhner, Inc. 85_SMA-50-0-101/111_NE	Solder	Gold	Female Socket Jack	Beryllium Copper	Solder	Threaded	50 Ohm	1	Right Angle Through Hole	SMA	18 GHz		-65 °C	165 °C	Brass	500 cycles	Gold	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold
Huber+Suhner, Inc. 11_SMA-50-3-15/111_NH	Solder	Gold	Male Pin Plug	Beryllium Copper	Solder	Threaded	50 Ohm	1	Free Hanging (In-Line)	SMA	18 GHz	RG-402									0.141 in
