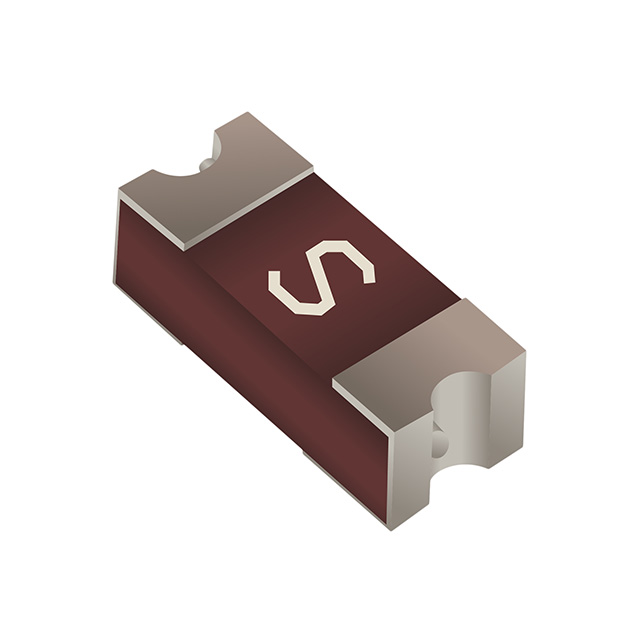

SF-2410FP050W-2

Active

Bourns Inc.

FUSE, SURFACE MOUNT, 500 MA, FAST ACTING, 250 VAC, 125 VDC, 2410 [6125 METRIC]

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

SF-2410FP050W-2

Active

Bourns Inc.

FUSE, SURFACE MOUNT, 500 MA, FAST ACTING, 250 VAC, 125 VDC, 2410 [6125 METRIC]

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SF-2410FP050W-2

Approval Agency	UL
Breaking Capacity @ Rated Voltage	100 A, 50 A
Current Rating (Amps)	0.5 A
DC Cold Resistance	0.231 Ohms
Fuse Type	Board Mount
Melting I˛t	0.1
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	6125 Metric
Package / Case	2410
Response Time	Fast Blow
Size / Dimension [x]	6.1 mm
Size / Dimension [x]	0.24 in
Size / Dimension [y]	2.49 mm
Size / Dimension [y]	0.098 in
Size / Dimension [z]	0.085 "
Size / Dimension [z]	2.16 mm
Voltage Rating - AC	250 V
Voltage Rating - DC	125 VDC

SF-2410 Series

Part	Voltage Rating - AC	DC Cold Resistance	Approval Agency	Mounting Type	Current Rating (Amps)	Package / Case	Package / Case	Response Time	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Voltage Rating - DC	Breaking Capacity @ Rated Voltage	Fuse Type	Melting I²t	Operating Temperature [Min]	Operating Temperature [Max]	Melting I˛t
Bourns Inc. SF-2410F1200W-2	65 V	0.0053 Ohms	UL	Surface Mount	12 A	6125 Metric	2410	Fast Blow	6.1 mm	0.085 "	0.24 in	2.49 mm	0.098 in	2.16 mm	65 VDC	50 A	Board Mount	49.2	-55 °C	125 °C
Bourns Inc. SF-2410FP400W-2	125 V	0.0172 Ohms	UL	Surface Mount	4 A	6125 Metric	2410	Fast Blow	6.1 mm	0.085 "	0.24 in	2.49 mm	0.098 in	2.16 mm	125 VDC	50 A	Board Mount	4.1	-55 °C	125 °C
Bourns Inc. SF-2410FP050W-2	250 V	0.231 Ohms	UL	Surface Mount	0.5 A	6125 Metric	2410	Fast Blow	6.1 mm	0.085 "	0.24 in	2.49 mm	0.098 in	2.16 mm	125 VDC	50 A 100 A	Board Mount		-55 °C	125 °C	0.1
Bourns Inc. SF-2410FP630W-2	125 V	0.01 Ohms	UL	Surface Mount	6.3 A	6125 Metric	2410	Fast Blow	6.1 mm	0.085 "	0.24 in	2.49 mm	0.098 in	2.16 mm	125 VDC	50 A	Board Mount	12.5 I²t	-55 °C	125 °C
Bourns Inc. SF-2410FP800W-2	125 V	0.0086 Ohms	UL	Surface Mount	8 A	6125 Metric	2410	Fast Blow	6.1 mm	0.085 "	0.24 in	2.49 mm	0.098 in	2.16 mm	125 VDC	50 A	Board Mount	20.3	-55 °C	125 °C
Bourns Inc. SF-2410FP100W-2	250 V	0.093 Ohms	UL	Surface Mount	1 A	6125 Metric	2410	Fast Blow	6.1 mm	0.085 "	0.24 in	2.49 mm	0.098 in	2.16 mm	125 VDC	50 A 100 A	Board Mount	0.59	-55 °C	125 °C
Bourns Inc. SF-2410F1500W-2	65 V	0.0038 Ohms	UL	Surface Mount	15 A	6125 Metric	2410	Fast Blow	6.1 mm	0.085 "	0.24 in	2.49 mm	0.098 in	2.16 mm	65 VDC	50 A	Board Mount		-55 °C	125 °C	102.5
Bourns Inc. SF-2410FP063W-2	250 V	0.174 Ohms	UL	Surface Mount	0.63 A	6125 Metric	2410	Fast Blow	6.1 mm	0.085 "	0.24 in	2.49 mm	0.098 in	2.16 mm	125 VDC	50 A 100 A	Board Mount		-55 °C	125 °C	0.16
Bourns Inc. SF-2410FP250W-2	125 V	0.031 Ohms	UL	Surface Mount	2.5 A	6125 Metric	2410	Fast Blow	6.1 mm	0.085 "	0.24 in	2.49 mm	0.098 in	2.16 mm	125 VDC	50 A	Board Mount	1.21	-55 °C	125 °C
Bourns Inc. SF-2410F2000W-2	65 V	3.4 mOhms	UL	Surface Mount	20 A	6125 Metric	2410	Fast Blow	6.1 mm	0.085 "	0.24 in	2.49 mm	0.098 in	2.16 mm	65 VDC	50 A 100 A	Board Mount		-55 °C	125 °C	126.2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.83
		5	$ 0.80
		10	$ 0.75
		50	$ 0.62
		100	$ 0.52
		250	$ 0.51
		500	$ 0.43
		1000	$ 0.38
	Digi-Reel®	1	$ 0.83
		5	$ 0.80
		10	$ 0.75
		50	$ 0.62
		100	$ 0.52
		250	$ 0.51
		500	$ 0.43
		1000	$ 0.38
	Tape & Reel (TR)	2000	$ 0.36
		4000	$ 0.35
		6000	$ 0.34
		10000	$ 0.32
Newark	Each (Supplied on Cut Tape)	1	$ 0.74
		10	$ 0.58
		25	$ 0.54
		50	$ 0.50
		100	$ 0.47

Description

General part information

SF-2410 Series

500 mA 250 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2410 (6125 Metric)
