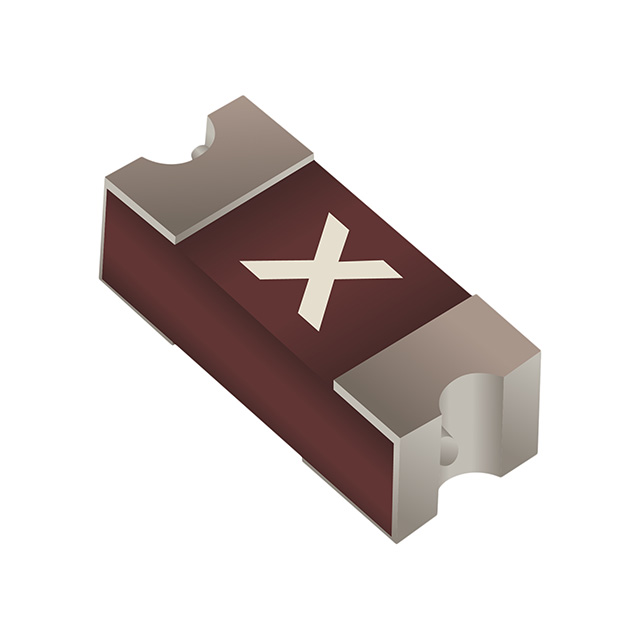

SF-2410F1500W-2
ActiveBourns Inc.
FUSE, SMD, 15A, FAST ACTING, 2410
Deep-Dive with AI
Search across all available documentation for this part.
SF-2410F1500W-2
ActiveBourns Inc.
FUSE, SMD, 15A, FAST ACTING, 2410
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SF-2410F1500W-2 |
|---|---|
| Approval Agency | UL |
| Breaking Capacity @ Rated Voltage | 50 A |
| Current Rating (Amps) | 15 A |
| DC Cold Resistance | 0.0038 Ohms |
| Fuse Type | Board Mount |
| Melting I˛t | 102.5 |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 6125 Metric |
| Package / Case | 2410 |
| Response Time | Fast Blow |
| Size / Dimension [x] | 6.1 mm |
| Size / Dimension [x] | 0.24 in |
| Size / Dimension [y] | 2.49 mm |
| Size / Dimension [y] | 0.098 in |
| Size / Dimension [z] | 0.085 " |
| Size / Dimension [z] | 2.16 mm |
| Voltage Rating - AC | 65 V |
| Voltage Rating - DC | 65 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.07 | |
| 5 | $ 1.03 | |||
| 10 | $ 0.97 | |||
| 50 | $ 0.80 | |||
| 100 | $ 0.67 | |||
| 250 | $ 0.65 | |||
| 500 | $ 0.55 | |||
| 1000 | $ 0.48 | |||
| Digi-Reel® | 1 | $ 1.07 | ||
| 5 | $ 1.03 | |||
| 10 | $ 0.97 | |||
| 50 | $ 0.80 | |||
| 100 | $ 0.67 | |||
| 250 | $ 0.65 | |||
| 500 | $ 0.55 | |||
| 1000 | $ 0.48 | |||
| Tape & Reel (TR) | 2000 | $ 0.46 | ||
| 4000 | $ 0.45 | |||
| 6000 | $ 0.43 | |||
| 10000 | $ 0.42 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 1.08 | |
| 10 | $ 0.89 | |||
| 25 | $ 0.83 | |||
| 50 | $ 0.79 | |||
| 100 | $ 0.73 | |||
Description
General part information
SF-2410 Series
15 A 65 V AC 65 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2410 (6125 Metric)
