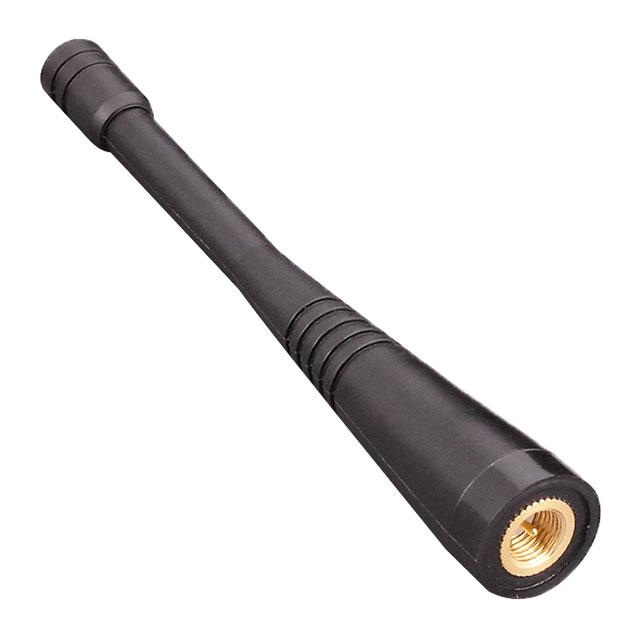

ANT-B14-CW-QW-SMA
ActiveTE Connectivity Linx
RF ANT LTE B14 WHIP STR SMA PLUG
Deep-Dive with AI
Search across all available documentation for this part.
ANT-B14-CW-QW-SMA
ActiveTE Connectivity Linx
RF ANT LTE B14 WHIP STR SMA PLUG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-B14-CW-QW-SMA |
|---|---|
| Antenna Type | Whip, Straight |
| Applications | FirstNet, Public Safety, LTE |
| Features | O-Ring Compatible |
| Frequency (Center/Band) | 750 MHz |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Frequency Range [Max] | 800 MHz |
| Frequency Range [Min] | 750 MHz |
| Gain | 1.9 dBi |
| Height (Max) [Max] | 3.709 in |
| Height (Max) [Max] | 94.2 mm |
| Mounting Type | Connector Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 10 W |
| RF Family/Standard | Cellular |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 200 | $ 6.65 | |
Description
General part information
ANT-B14 Series
RF ANTENNA FirstNet, LTE, Public Safety Whip, Straight SMA Male Connector Mount
Documents
Technical documentation and resources
No documents available
