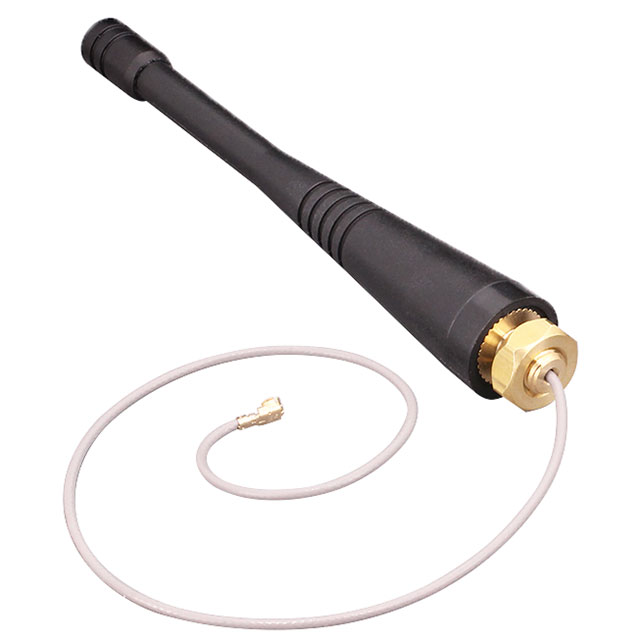

ANT-B14-PW-QW-UFL

Active

TE Connectivity Linx

RF ANT LTE B14 WHIP STR CAB PAN

Search across all available documentation for this part.

Active

TE Connectivity Linx

RF ANT LTE B14 WHIP STR CAB PAN

Technical Specifications

Parameters and characteristics for this part

Part	Number of Bands	RF Family/Standard	Power - Max [Max]	Features	Frequency (Center/Band)	Frequency Range [Min]	Frequency Range [Max]	Gain	Frequency Group [Max]	Frequency Group [Min]	Applications	VSWR	Antenna Type	Termination	Height (Max) [Max]	Height (Max) [Max]	Mounting Type	Features
TE Connectivity Linx ANT-B14-PW-QW-UFL	1	Cellular	10 W	216 mm	778 MHz	750 MHz	800 MHz	1.9 dBi	1 GHz	300 MHz	FirstNet LTE Public Safety
TE Connectivity Linx ANT-B14-PW-QW	1	Cellular	10 W	216 mm	778 MHz	750 MHz	800 MHz	1.9 dBi	1 GHz	300 MHz	FirstNet LTE Public Safety	2	Whip Straight	Solder	3.709 in	94.2 mm
TE Connectivity Linx ANT-B14-CW-QW-SMA	1	Cellular	10 W		750 MHz	750 MHz	800 MHz	1.9 dBi	1 GHz	300 MHz	FirstNet LTE Public Safety	2	Whip Straight		3.709 in	94.2 mm	Connector Mount	O-Ring Compatible

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 9.74

General part information

RF ANTENNA FirstNet, LTE, Public Safety Whip, Straight Panel Mount

Technical documentation and resources
