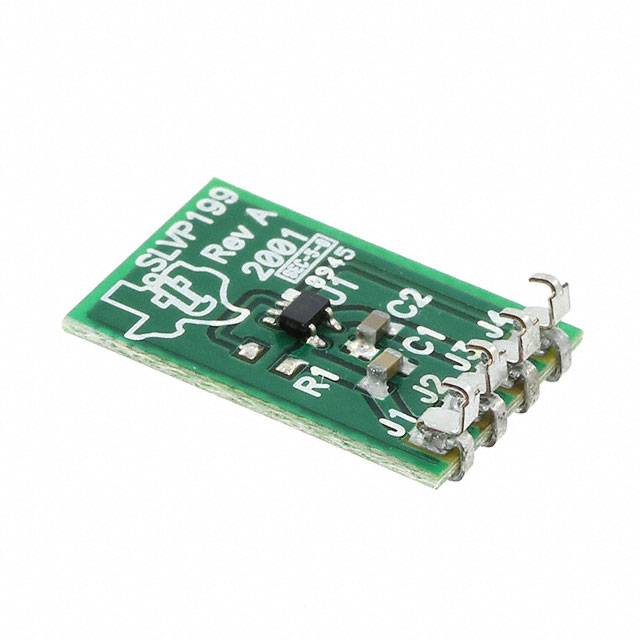

TPS71533EVM
ActiveEVAL MOD FOR TPS71533
Deep-Dive with AI
Search across all available documentation for this part.
TPS71533EVM
ActiveEVAL MOD FOR TPS71533
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TPS71533EVM | TPS71533 Series |
|---|---|---|
| Board Type | Fully Populated | Fully Populated |
| Channels per IC | 1 | 1 |
| Current - Output | 50 mA | 50 mA |
| Current - Quiescent (Iq) | - | 4.2 - 5.8 µA |
| Current - Supply (Max) | - | 5.8 µA |
| Mounting Type | - | Surface Mount |
| Number of Regulators | - | 1 |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Output Configuration | - | Positive |
| Output Type | - | 27.03 °C/W |
| Package / Case | - | 5-TSSOP, SOT-353, SC-70-5 |
| Protection Features | - | Over Current, Short Circuit |
| PSRR | - | 60 dB |
| Regulator Type | Positive Fixed | Positive Fixed |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | SC-70-5 |
| Utilized IC / Part | TPS71533 | TPS71533 |
| Voltage - Input (Max) | - | 24 V |
| Voltage - Input [Max] | 24 V | 24 V |
| Voltage - Input [Min] | 2.5 V | 2.5 V |
| Voltage - Output | 3.3 V | 3.3 V |
| Voltage - Output (Min/Fixed) | - | 3.3 V |
| Voltage Dropout (Max) | - | 0.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
TPS71533 Series
50mA 24V ultra-low-IQ low-dropout (LDO) voltage regulator
| Part | Protection Features | Output Configuration | Number of Regulators | Current - Output | Output Type | PSRR | Voltage - Output (Min/Fixed) | Package / Case | Current - Quiescent (Iq) | Voltage Dropout (Max) | Mounting Type | Supplier Device Package | Voltage - Input (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Supplied Contents | Channels per IC | Voltage - Output | Board Type | Utilized IC / Part | Voltage - Input [Max] | Voltage - Input [Min] | Regulator Type | Current - Supply (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments TPS71533DCKRThe TPS715 low-dropout (LDO) linear voltage regulator is low quiescent current device that offers the benefits of a wide input voltage range and low-power operation in miniaturized packaging. Thus, the TPS715 is designed for battery-powered applications and as a power-management attachment to low-power microcontrollers.
The TPS715 is available in both fixed and adjustable versions. For more flexibility or higher output voltages, the adjustable version uses feedback resistors to set the output voltage from 1.205 V to 15 V. The TPS715 LDOs support a low dropout of typically 415 mV at 50 mA of load current. The low quiescent current (3.2 µA typically) is stable over the entire range of output load current (0 mA to 50 mA). The TPS715 also features an internal soft-start to lower the inrush current. The built-in overcurrent limit helps protect the regulator in the event of a load short or fault.
The TPS715 low-dropout (LDO) linear voltage regulator is low quiescent current device that offers the benefits of a wide input voltage range and low-power operation in miniaturized packaging. Thus, the TPS715 is designed for battery-powered applications and as a power-management attachment to low-power microcontrollers.
The TPS715 is available in both fixed and adjustable versions. For more flexibility or higher output voltages, the adjustable version uses feedback resistors to set the output voltage from 1.205 V to 15 V. The TPS715 LDOs support a low dropout of typically 415 mV at 50 mA of load current. The low quiescent current (3.2 µA typically) is stable over the entire range of output load current (0 mA to 50 mA). The TPS715 also features an internal soft-start to lower the inrush current. The built-in overcurrent limit helps protect the regulator in the event of a load short or fault. | Over Current | Positive | 1 | 50 mA | 27.03 °C/W | 60 dB | 3.3 V | 5-TSSOP, SC-70-5, SOT-353 | 4.2 µA | 0.75 V | Surface Mount | SC-70-5 | 24 V | 125 °C | -40 °C | |||||||||
Over Current | Positive | 1 | 50 mA | 27.03 °C/W | 60 dB | 3.3 V | 5-TSSOP, SC-70-5, SOT-353 | 4.2 µA | 0.75 V | Surface Mount | SC-70-5 | 24 V | 125 °C | -40 °C | ||||||||||
Texas Instruments TPS71533EVMTPS71533 1 - Single Channels per IC Positive Fixed Linear Voltage Regulator Evaluation Board | 50 mA | Board(s) | 1 | 3.3 V | Fully Populated | TPS71533 | 24 V | 2.5 V | Positive Fixed | |||||||||||||||
Texas Instruments TPS71533DCKRM3The TPS715 low-dropout (LDO) linear voltage regulator is low quiescent current device that offers the benefits of a wide input voltage range and low-power operation in miniaturized packaging. Thus, the TPS715 is designed for battery-powered applications and as a power-management attachment to low-power microcontrollers.
The TPS715 is available in both fixed and adjustable versions. For more flexibility or higher output voltages, the adjustable version uses feedback resistors to set the output voltage from 1.205 V to 15 V. The TPS715 LDOs support a low dropout of typically 415 mV at 50 mA of load current. The low quiescent current (3.2 µA typically) is stable over the entire range of output load current (0 mA to 50 mA). The TPS715 also features an internal soft-start to lower the inrush current. The built-in overcurrent limit helps protect the regulator in the event of a load short or fault.
The TPS715 low-dropout (LDO) linear voltage regulator is low quiescent current device that offers the benefits of a wide input voltage range and low-power operation in miniaturized packaging. Thus, the TPS715 is designed for battery-powered applications and as a power-management attachment to low-power microcontrollers.
The TPS715 is available in both fixed and adjustable versions. For more flexibility or higher output voltages, the adjustable version uses feedback resistors to set the output voltage from 1.205 V to 15 V. The TPS715 LDOs support a low dropout of typically 415 mV at 50 mA of load current. The low quiescent current (3.2 µA typically) is stable over the entire range of output load current (0 mA to 50 mA). The TPS715 also features an internal soft-start to lower the inrush current. The built-in overcurrent limit helps protect the regulator in the event of a load short or fault. | Over Current, Short Circuit | Positive | 1 | 50 mA | 27.03 °C/W | 60 dB | 3.3 V | 5-TSSOP, SC-70-5, SOT-353 | 5.8 µA | 0.75 V | Surface Mount | SC-70-5 | 24 V | 125 ¯C | -40 °C | 5.8 µA |
Description
General part information
TPS71533 Series
The TPS715 low-dropout (LDO) linear voltage regulator is low quiescent current device that offers the benefits of a wide input voltage range and low-power operation in miniaturized packaging. Thus, the TPS715 is designed for battery-powered applications and as a power-management attachment to low-power microcontrollers.
The TPS715 is available in both fixed and adjustable versions. For more flexibility or higher output voltages, the adjustable version uses feedback resistors to set the output voltage from 1.205 V to 15 V. The TPS715 LDOs support a low dropout of typically 415 mV at 50 mA of load current. The low quiescent current (3.2 µA typically) is stable over the entire range of output load current (0 mA to 50 mA). The TPS715 also features an internal soft-start to lower the inrush current. The built-in overcurrent limit helps protect the regulator in the event of a load short or fault.
The TPS715 low-dropout (LDO) linear voltage regulator is low quiescent current device that offers the benefits of a wide input voltage range and low-power operation in miniaturized packaging. Thus, the TPS715 is designed for battery-powered applications and as a power-management attachment to low-power microcontrollers.
