2112301-1

Active

TE Connectivity Raychem Cable Protection

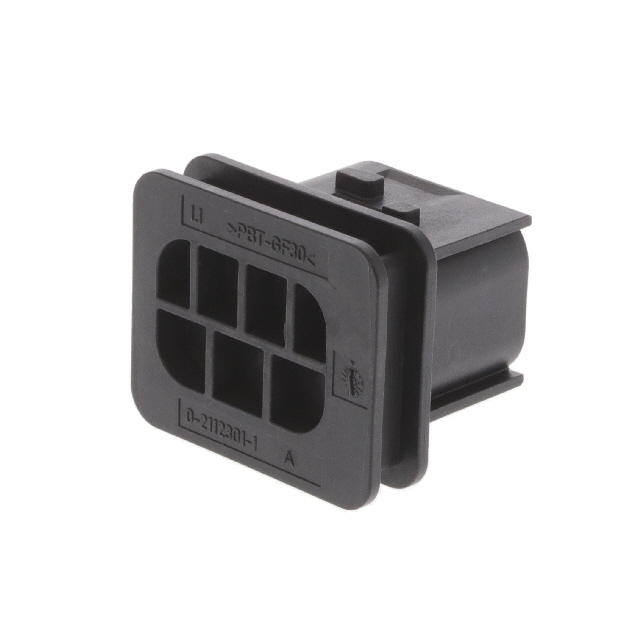

PROTECTION CAP, PBT GF, BLACK, AUTO CONN ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Heavy Duty Sealed Connector Series 2 to 18 Positions for AMP MCP* Contact Systems +6

2112301-1

Active

TE Connectivity Raychem Cable Protection

PROTECTION CAP, PBT GF, BLACK, AUTO CONN ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet Heavy Duty Sealed Connector Series 2 to 18 Positions for AMP MCP* Contact Systems +6

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2112301-1

Accessory Type	Cap (Cover), Protective
Features	Locking
For Use With/Related Products	Heavy Duty Sealed Connector Series

Heavy Duty Sealed Connector Series Series

Automotive Connectors 4POS,TAB 2.8X0 .8,TAB HSG,ASSY

Part	Color	Pitch [x]	Pitch [x]	Features	Note	Contact Type	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Number of Positions	Insulation Material	Contact Termination	Number of Rows	Mounting Type	Row Spacing [Max]	Row Spacing [Max]	Accessory Type	For Use With/Related Products	Number of Positions
TE Connectivity Raychem Cable Protection 2-1564544-1	Gray	9 mm	0.354 in	Sealed	Contacts Not Included	Tab	Slide-On	140 °C	-40 °C	Plug	2	Polybutylene Terephthalate (PBT) Glass Filled	Crimp	1
TE Connectivity Raychem Cable Protection 2-1418469-1	Gray	4 mm	0.157 in	Sealed	Contacts Not Included	Female Socket	Slide-On	140 °C	-40 °C	Receptacle	6	Polybutylene Terephthalate (PBT) Glass Filled	Crimp	2	Free Hanging (In-Line)	0.236 in	6 mm
TE Connectivity Raychem Cable Protection 2-1564512-1	Gray	4 mm	0.157 in	Sealed	Contacts Not Included	Tab	Slide-On	140 °C	-40 °C	Plug	8	Polybutylene Terephthalate (PBT) Glass Filled	Crimp	2	Free Hanging (In-Line)	0.236 in	6 mm
TE Connectivity Raychem Cable Protection 3-1564512-1	Green	4 mm	0.157 in	Sealed	Contacts Not Included	Tab	Slide-On	140 °C	-40 °C	Plug	8	Polybutylene Terephthalate (PBT) Glass Filled	Crimp	2	Free Hanging (In-Line)	0.236 in	6 mm
TE Connectivity Raychem Cable Protection 4-1418480-1	Blue			Sealed	Contacts Not Included	Female Socket	Slide-On	140 °C	-40 °C	Receptacle	7	Polybutylene Terephthalate (PBT) Glass Filled	Crimp	2	Free Hanging (In-Line)	0.236 in	6 mm
TE Connectivity Raychem Cable Protection 2112301-1				Locking														Cap (Cover) Protective	Heavy Duty Sealed Connector Series
TE Connectivity Raychem Cable Protection 1564411-1																		Slide Lock	Heavy Duty Sealed Connector Series
TE Connectivity Raychem Cable Protection 2-1564412-1	Gray	4 mm	0.157 in	Sealed	Contacts Not Included	Tab	Slide-On	140 °C	-40 °C	Plug	18	Polybutylene Terephthalate (PBT) Glass Filled	Crimp	2		0.236 in	6 mm
TE Connectivity Raychem Cable Protection 4-1564414-1	Blue	4 mm	0.157 in	Sealed	Contacts Not Included	Tab	Slide-On	140 °C	-40 °C	Plug	12	Polybutylene Terephthalate (PBT) Glass Filled	Crimp	2		0.236 in	6 mm
TE Connectivity Raychem Cable Protection 3-1564407-1	Green			Mounting Flange Sealed	Contacts Not Included	Tab	Slide-On	140 °C	-40 °C	Plug		Polybutylene Terephthalate (PBT) Glass Filled	Crimp	2		0.236 in	6 mm			16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1.73
		10	$ 1.58
		25	$ 1.53
		50	$ 1.52
		100	$ 1.41
		250	$ 1.39
		500	$ 1.26
		1000	$ 1.13
		2500	$ 1.04
Newark	Each	1	$ 2.18
		10	$ 1.70
		25	$ 1.62
		50	$ 1.55
		100	$ 1.48
		500	$ 1.38

Description

General part information

Heavy Duty Sealed Connector Series Series

Automotive Connectors 4POS,TAB 2.8X0 .8,TAB HSG,ASSY

Documents

Technical documentation and resources

Datasheet

Heavy Duty Sealed Connector Series 2 to 18 Positions for AMP MCP* Contact Systems
