2-1564512-1

Active

TE Connectivity Raychem Cable Protection

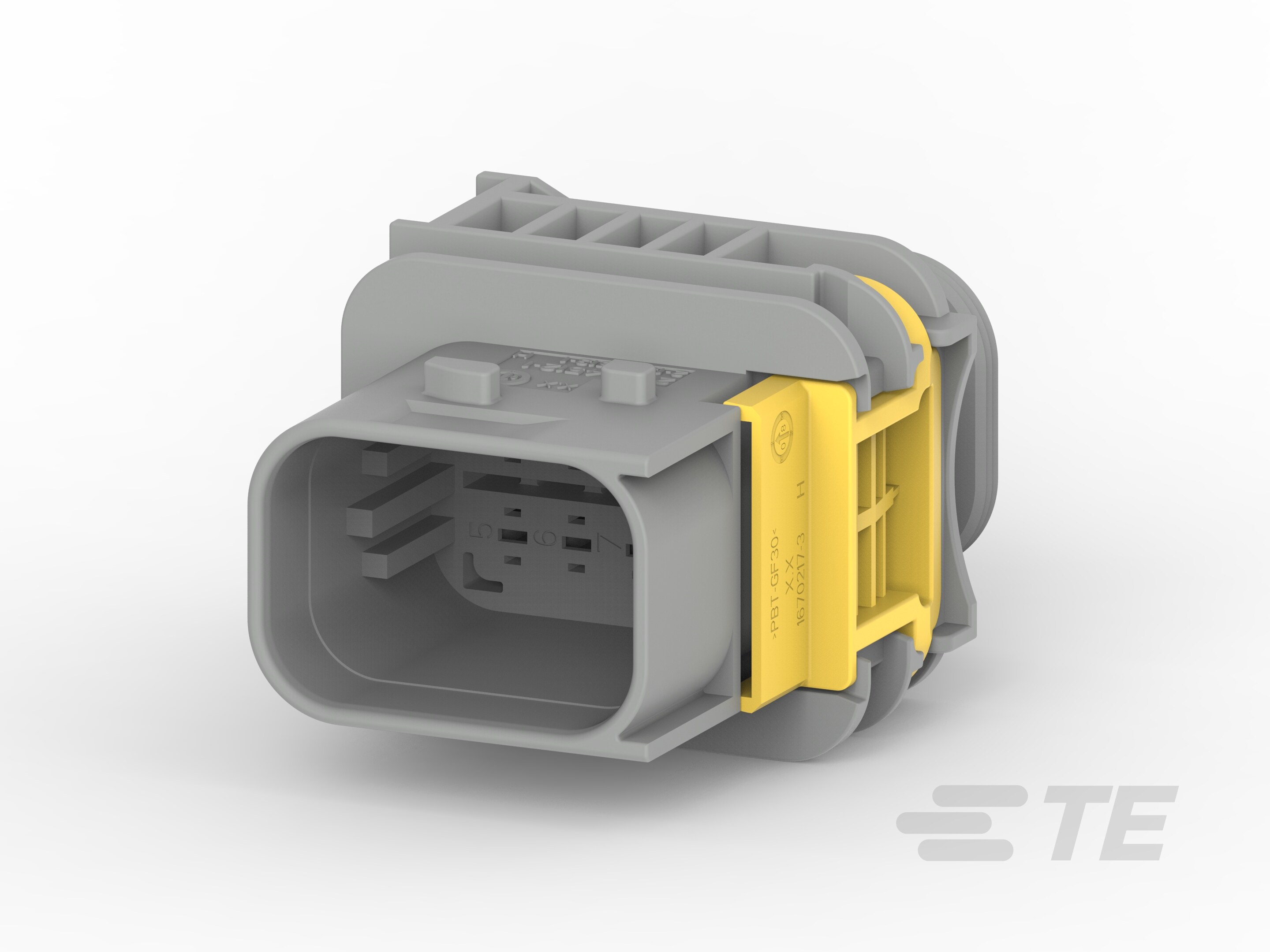

COMBINATION LINE CONNECTOR, 8 CONTACT(S), MALE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2-1564512-1

Color	Gray
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Tab
Fastening Type	Slide-On
Features	Sealed
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	8
Number of Rows	2
Operating Temperature [Max]	140 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	4 mm
Pitch [x]	0.157 in
Row Spacing [Max]	0.236 in
Row Spacing [Max]	6 mm

Heavy Duty Sealed Connector Series Series

Automotive Connectors 4POS,TAB 2.8X0 .8,TAB HSG,ASSY

Part	Color	Pitch [x]	Pitch [x]	Features	Note	Contact Type	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Number of Positions	Insulation Material	Contact Termination	Number of Rows	Mounting Type	Row Spacing [Max]	Row Spacing [Max]	Accessory Type	For Use With/Related Products	Number of Positions
TE Connectivity Raychem Cable Protection 2-1564544-1	Gray	9 mm	0.354 in	Sealed	Contacts Not Included	Tab	Slide-On	140 °C	-40 °C	Plug	2	Polybutylene Terephthalate (PBT) Glass Filled	Crimp	1
TE Connectivity Raychem Cable Protection 2-1418469-1	Gray	4 mm	0.157 in	Sealed	Contacts Not Included	Female Socket	Slide-On	140 °C	-40 °C	Receptacle	6	Polybutylene Terephthalate (PBT) Glass Filled	Crimp	2	Free Hanging (In-Line)	0.236 in	6 mm
TE Connectivity Raychem Cable Protection 2-1564512-1	Gray	4 mm	0.157 in	Sealed	Contacts Not Included	Tab	Slide-On	140 °C	-40 °C	Plug	8	Polybutylene Terephthalate (PBT) Glass Filled	Crimp	2	Free Hanging (In-Line)	0.236 in	6 mm
TE Connectivity Raychem Cable Protection 3-1564512-1	Green	4 mm	0.157 in	Sealed	Contacts Not Included	Tab	Slide-On	140 °C	-40 °C	Plug	8	Polybutylene Terephthalate (PBT) Glass Filled	Crimp	2	Free Hanging (In-Line)	0.236 in	6 mm
TE Connectivity Raychem Cable Protection 4-1418480-1	Blue			Sealed	Contacts Not Included	Female Socket	Slide-On	140 °C	-40 °C	Receptacle	7	Polybutylene Terephthalate (PBT) Glass Filled	Crimp	2	Free Hanging (In-Line)	0.236 in	6 mm
TE Connectivity Raychem Cable Protection 2112301-1				Locking														Cap (Cover) Protective	Heavy Duty Sealed Connector Series
TE Connectivity Raychem Cable Protection 1564411-1																		Slide Lock	Heavy Duty Sealed Connector Series
TE Connectivity Raychem Cable Protection 2-1564412-1	Gray	4 mm	0.157 in	Sealed	Contacts Not Included	Tab	Slide-On	140 °C	-40 °C	Plug	18	Polybutylene Terephthalate (PBT) Glass Filled	Crimp	2		0.236 in	6 mm
TE Connectivity Raychem Cable Protection 4-1564414-1	Blue	4 mm	0.157 in	Sealed	Contacts Not Included	Tab	Slide-On	140 °C	-40 °C	Plug	12	Polybutylene Terephthalate (PBT) Glass Filled	Crimp	2		0.236 in	6 mm
TE Connectivity Raychem Cable Protection 3-1564407-1	Green			Mounting Flange Sealed	Contacts Not Included	Tab	Slide-On	140 °C	-40 °C	Plug		Polybutylene Terephthalate (PBT) Glass Filled	Crimp	2		0.236 in	6 mm			16
