09120022701

Active

HARTING

HAN BRID-FEMALE-C CU-BUS-MODULE(G) ROHS COMPLIANT: NA

Search across all available documentation for this part.

Active

HARTING

HAN BRID-FEMALE-C CU-BUS-MODULE(G) ROHS COMPLIANT: NA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

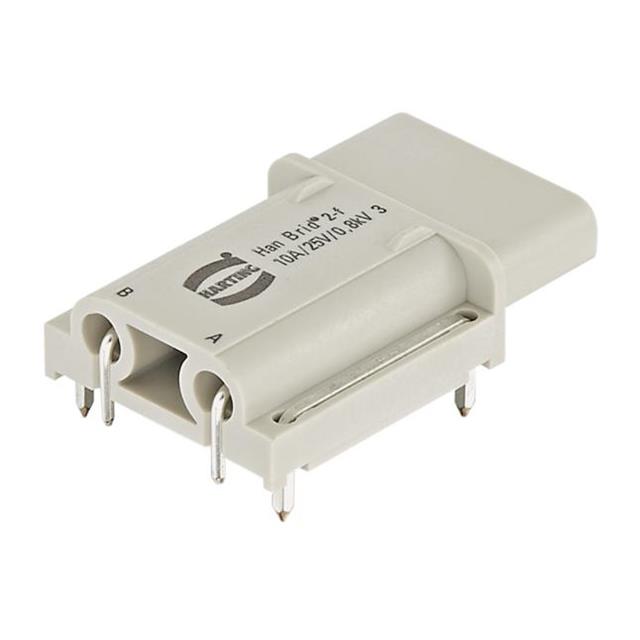

Female Module Gray 2 Position Crimp

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	09120022701	09120022 Series

Color	Gray	Gray
Connector Type	Module	Module
Contact Finish	-	Silver
Contact Material	-	Copper Alloy
Contact Type	Han® D	Han® D
Current Rating (Amps)	10 A	10 - 40 A
Gender	Female	Female, Male
Housing Material	Polycarbonate (PC)	Polycarbonate (PC)
Material Flammability Rating	-	UL94 V-0
Number of Positions	2	2
Number of Positions	-	Ground
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Size	3 A	3 A
Termination Style	Crimp	Screw, Crimp
Voltage Rating	50 V	50 - 830 V

HEAVY DUTY CONNECTOR, 2/0+PE, HAN Q SERIES, INSERT, 3 CONTACTS, 3A, RECEPTACLE, SCREW SOCKET

Part	Gender	Housing Material	Voltage Rating	Contact Finish	Material Flammability Rating	Current Rating (Amps)	Number of Positions	Termination Style	Color	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Size	Number of Positions	Contact Type	Connector Type
HARTING 09120022755	Female	Polycarbonate (PC)	400 V	Silver	UL94 V-0	40 A	2	Screw	Gray	Copper Alloy	125 °C	-40 °C	3 A
HARTING 09120022652	Male	Polycarbonate (PC)	600 V	Silver	UL94 V-0	40 A	2	Screw	Gray	Copper Alloy	125 °C	-40 °C	3 A	Ground
HARTING 09120022654	Male	Polycarbonate (PC)	600 V	Silver	UL94 V-0	40 A	2	Screw	Gray	Copper Alloy	125 °C	-40 °C	3 A
HARTING 09120022656	Male	Polycarbonate (PC)	830 V	Silver	UL94 V-0	40 A	2	Screw	Gray	Copper Alloy	125 °C	-40 °C	3 A
HARTING 09120022753	Female	Polycarbonate (PC)	400 V	Silver	UL94 V-0	40 A	2	Screw	Gray	Copper Alloy	125 °C	-40 °C	3 A
HARTING 09120022653	Male	Polycarbonate (PC)	400 V	Silver	UL94 V-0	40 A	2	Screw	Gray	Copper Alloy	125 °C	-40 °C	3 A
HARTING 09120022756	Female	Polycarbonate (PC)	830 V	Silver	UL94 V-0	40 A	2	Screw	Gray	Copper Alloy	125 °C	-40 °C	3 A
HARTING 09120022701	Female	Polycarbonate (PC)	50 V			10 A	2	Crimp	Gray		125 °C	-40 °C	3 A		Han® D	Module
HARTING 09120022611	Male	Polycarbonate (PC)	50 V			10 A	2	Crimp	Gray		125 °C	-40 °C	3 A		Han® D	Module
HARTING 09120022751	Female	Polycarbonate (PC)	400 V	Silver	UL94 V-0	40 A	2	Screw	Gray	Copper Alloy	125 °C	-40 °C	3 A	Ground
