09120022753

Active

HARTING

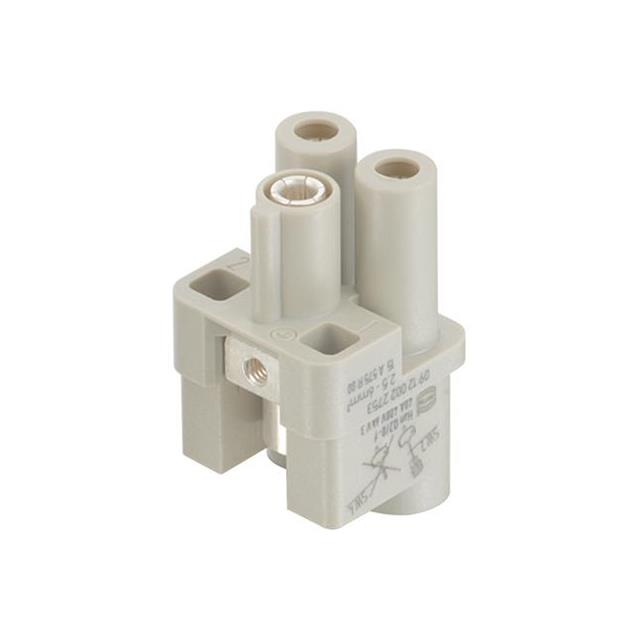

HEAVY DUTY CONNECTOR, HAN Q SERIES, INSERT, 2+PE CONTACTS, 3A, RECEPTACLE, SCREW SOCKET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN +1

09120022753

Active

HARTING

HEAVY DUTY CONNECTOR, HAN Q SERIES, INSERT, 2+PE CONTACTS, 3A, RECEPTACLE, SCREW SOCKET

Deep-Dive with AI

DocumentsDatasheet Drawing EN +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 53.72
		10	$ 40.04
		25	$ 36.09
		50	$ 33.53
		100	$ 31.28
		250	$ 28.72
Newark	Each	1	$ 40.27
		5	$ 38.34
		10	$ 36.40
		25	$ 32.49
		50	$ 31.79

Description

General part information

09120022 Series

The 09120022753 from Harting is a Han® Q 2/0 female insert with 2 contacts. The insert material is polycarbonate, colour of insert is RAL 7032 (pebble grey), contact material is copper alloy and contact surface is silver plated. The contact specifications are according to IEC 61984 and EN 60664-1 standards. It is approved by UL 1977 ECBT2.E235076 and CSA-C22.2 No. 182.3 ECBT8.E235076 standards.

Documents

Technical documentation and resources

Datasheet

Drawing EN

Datasheet

Technical Data Sheet EN

Datasheet

Specification	09120022753	09120022 Series

Color	Gray	Gray
Connector Type	-	Module
Contact Finish	Silver	Silver
Contact Material	Copper Alloy	Copper Alloy
Contact Type	-	Han® D
Current Rating (Amps)	40 A	10 - 40 A
Gender	Female	Female, Male
Housing Material	Polycarbonate (PC)	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0	UL94 V-0
Number of Positions	2	2
Number of Positions	-	Ground
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Size	3 A	3 A
Termination Style	Screw	Screw, Crimp
Voltage Rating	400 V	50 - 830 V

Part	Gender	Housing Material	Voltage Rating	Contact Finish	Material Flammability Rating	Current Rating (Amps)	Number of Positions	Termination Style	Color	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Size	Number of Positions	Contact Type	Connector Type
HARTING 09120022755	Female	Polycarbonate (PC)	400 V	Silver	UL94 V-0	40 A	2	Screw	Gray	Copper Alloy	125 °C	-40 °C	3 A
HARTING 09120022652	Male	Polycarbonate (PC)	600 V	Silver	UL94 V-0	40 A	2	Screw	Gray	Copper Alloy	125 °C	-40 °C	3 A	Ground
HARTING 09120022654	Male	Polycarbonate (PC)	600 V	Silver	UL94 V-0	40 A	2	Screw	Gray	Copper Alloy	125 °C	-40 °C	3 A
HARTING 09120022656	Male	Polycarbonate (PC)	830 V	Silver	UL94 V-0	40 A	2	Screw	Gray	Copper Alloy	125 °C	-40 °C	3 A
HARTING 09120022753	Female	Polycarbonate (PC)	400 V	Silver	UL94 V-0	40 A	2	Screw	Gray	Copper Alloy	125 °C	-40 °C	3 A
HARTING 09120022653	Male	Polycarbonate (PC)	400 V	Silver	UL94 V-0	40 A	2	Screw	Gray	Copper Alloy	125 °C	-40 °C	3 A
HARTING 09120022756	Female	Polycarbonate (PC)	830 V	Silver	UL94 V-0	40 A	2	Screw	Gray	Copper Alloy	125 °C	-40 °C	3 A
HARTING 09120022701	Female	Polycarbonate (PC)	50 V			10 A	2	Crimp	Gray		125 °C	-40 °C	3 A		Han® D	Module
HARTING 09120022611	Male	Polycarbonate (PC)	50 V			10 A	2	Crimp	Gray		125 °C	-40 °C	3 A		Han® D	Module
HARTING 09120022751	Female	Polycarbonate (PC)	400 V	Silver	UL94 V-0	40 A	2	Screw	Gray	Copper Alloy	125 °C	-40 °C	3 A	Ground
