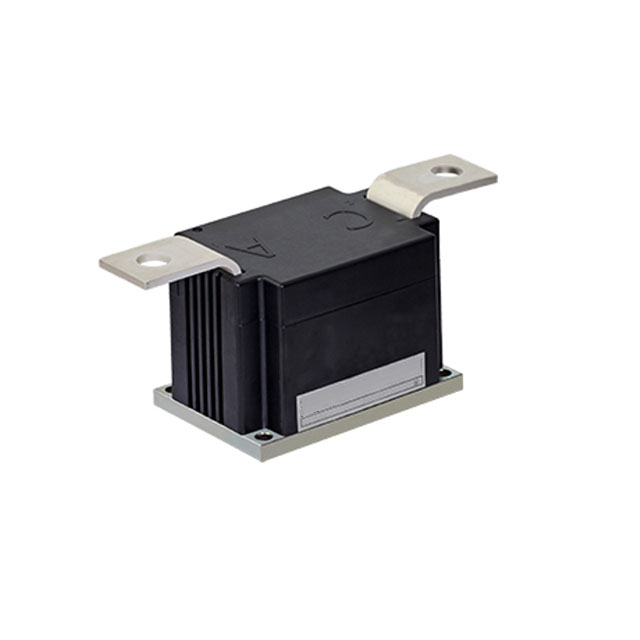

DZ1070N18KHPSA3

Active

Infineon Technologies

1800 V, 1100 A POWER BLOCK 70 MM SINGLE RECTIFIER DIODE MODULES

Search across all available documentation for this part.

Active

Infineon Technologies

1800 V, 1100 A POWER BLOCK 70 MM SINGLE RECTIFIER DIODE MODULES

Technical Specifications

Parameters and characteristics for this part

Specification	DZ1070N18KHPSA3

Current - Average Rectified (Io)	1100 A
Current - Reverse Leakage @ Vr	150 mA
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	Module
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	Module
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1800 V
Voltage - Forward (Vf) (Max) @ If	1.11 V

Part	Voltage - Forward (Vf) (Max) @ If	Package / Case	Current - Average Rectified (Io)	Supplier Device Package	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Mounting Type	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Speed	Technology
Infineon Technologies DZ1070N18KHPSA3	1.11 V	Module	1100 A	Module	150 °C	-40 °C	Chassis Mount	150 mA	1800 V	Standard Recovery >500ns	200 mA	Standard
Infineon Technologies DZ1070N22KHPSA3	1.11 V	Module	1100 A	Module	150 °C	-40 °C	Chassis Mount	150 mA	2200 V	Standard Recovery >500ns	200 mA	Standard
Infineon Technologies DZ1070N26KHPSA1	1.52 V	Module	1070 A	Module	150 °C	-40 °C	Chassis Mount		2600 V	Standard Recovery >500ns	200 mA	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 448.36
Newark	Each	1	$ 466.29

General part information

Single Rectifier Diode 70 mm Power Block 1800 V, 1070 A module with high reliablepressure contact technologyusing an isolated copper base plate.
