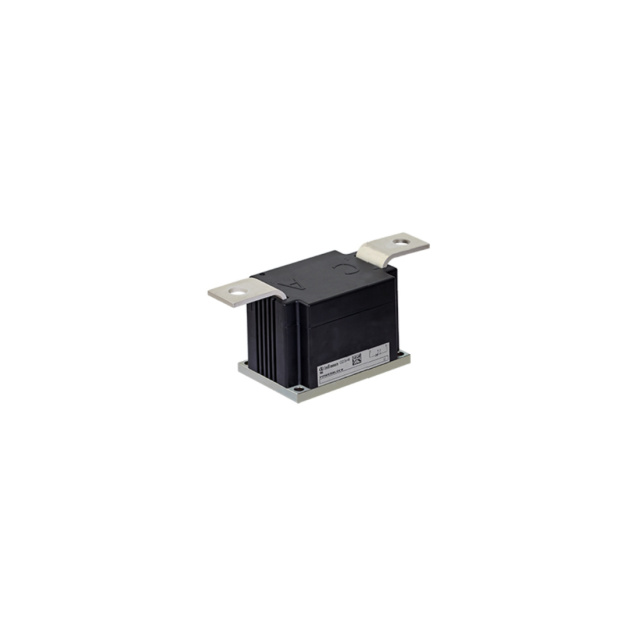

DZ1070N26KHPSA1

Active

Infineon Technologies

2600 V, 1070 A POWER BLOCK 70 MM SINGLE RECTIFIER DIODE MODULES

Search across all available documentation for this part.

Active

Infineon Technologies

2600 V, 1070 A POWER BLOCK 70 MM SINGLE RECTIFIER DIODE MODULES

Technical Specifications

Parameters and characteristics for this part

Specification	DZ1070N26KHPSA1

Current - Average Rectified (Io)	1070 A
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	Module
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	Module
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	2600 V
Voltage - Forward (Vf) (Max) @ If	1.52 V

Part	Voltage - Forward (Vf) (Max) @ If	Package / Case	Current - Average Rectified (Io)	Supplier Device Package	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Mounting Type	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Speed	Technology
Infineon Technologies DZ1070N18KHPSA3	1.11 V	Module	1100 A	Module	150 °C	-40 °C	Chassis Mount	150 mA	1800 V	Standard Recovery >500ns	200 mA	Standard
Infineon Technologies DZ1070N22KHPSA3	1.11 V	Module	1100 A	Module	150 °C	-40 °C	Chassis Mount	150 mA	2200 V	Standard Recovery >500ns	200 mA	Standard
Infineon Technologies DZ1070N26KHPSA1	1.52 V	Module	1070 A	Module	150 °C	-40 °C	Chassis Mount		2600 V	Standard Recovery >500ns	200 mA	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Single Rectifier Module 70 mm Power Block 2600 V, 1070 A modules with high reliablepressure contact technologyusing an isolated copper base plate.
