C102-F9R-0

Obsolete

u-blox

EVAL BOARD FOR ZED-F9R

Search across all available documentation for this part.

Obsolete

u-blox

EVAL BOARD FOR ZED-F9R

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	C102-F9R-0	ZED-F9 Series

Applications	-	GPS, General Purpose
Data Interface	-	UART, SPI, I2C, USB
Data Rate (Max)	-	921.6 kbps
For Use With/Related Products	ZED-F9R	ZED-F9R
Frequency	-	1.207 - 1.602 GHz
Frequency	-	1.2276 GHz
Frequency	-	1.575 GHz
Modulation or Protocol	-	GNSS, Galileo, BeiDou, GLONASS, GPS
Mounting Type	-	Surface Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Package / Case	-	54-SMD Module
Sensitivity	-	-167 - -160 dBm
Supplied Contents	Board(s), Accessories, Cable(s)	Board(s), Accessories, Cable(s)
Supplier Device Package	-	54-LGA (22x17)
Type	GNSS	GNSS
Voltage - Supply	-	2.7 V
Voltage - Supply	-	3.6 V

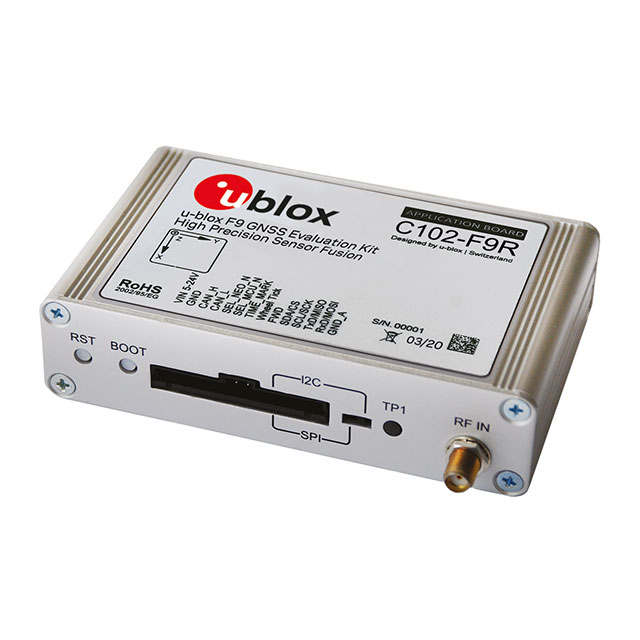

EVAL BOARD FOR ZED-F9R

Part	For Use With/Related Products	Type	Supplied Contents	Modulation or Protocol	Mounting Type	Data Interface	Data Rate (Max)	Frequency	Sensitivity	Supplier Device Package	Applications	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Frequency [Min]	Frequency [Max]
u-blox C102-F9R-0	ZED-F9R	GNSS	Accessories, Board(s), Cable(s)
u-blox ZED-F9R-00B				BeiDou, Galileo, GLONASS, GNSS, GPS	Surface Mount	I2C, SPI, UART, USB	921.6 kbps	1.207 GHz, 1.227 GHz, 1.246 GHz, 1.561 GHz, 1.575 GHz, 1.602 GHz	-160 dBm	54-LGA (22x17)	GPS	54-SMD Module	85 °C	-40 °C	2.7 V	3.6 V
u-blox ZED-F9P-02B				BeiDou, Galileo, GLONASS, GNSS, GPS	Surface Mount	I2C, SPI, UART, USB	921.6 kbps		-167 dBm	54-LGA (22x17)	General Purpose	54-SMD Module	85 °C	-40 °C	2.7 V	3.6 V	1.2276 GHz	1.575 GHz
u-blox ZED-F9R-01B				BeiDou, Galileo, GLONASS, GNSS, GPS	Surface Mount	I2C, SPI, UART, USB	921.6 kbps	1.207 GHz, 1.227 GHz, 1.246 GHz, 1.561 GHz, 1.575 GHz, 1.602 GHz	-160 dBm	54-LGA (22x17)	GPS	54-SMD Module	85 °C	-40 °C	2.7 V	3.6 V
