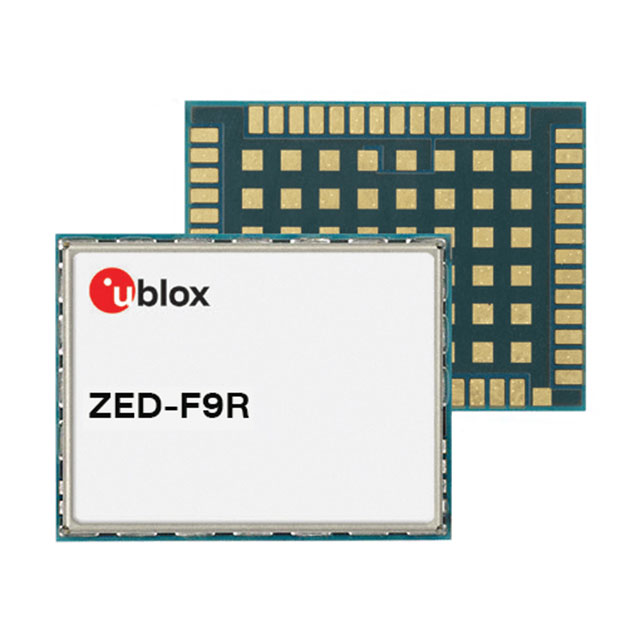

ZED-F9R-00B

Obsolete

u-blox

MOD RF SENSOR FUSION GNSS RTK

Search across all available documentation for this part.

Obsolete

u-blox

MOD RF SENSOR FUSION GNSS RTK

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

- RF Receiver BeiDou, Galileo, GLONASS, GNSS, GPS 1.207GHz, 1.227GHz, 1.246GHz, 1.561GHz, 1.575GHz, 1.602GHz -160dBm 921.6kbps 54-LGA (22x17)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	ZED-F9R-00B	ZED-F9 Series

Applications	GPS	GPS, General Purpose
Data Interface	UART, SPI, I2C, USB	UART, SPI, I2C, USB
Data Rate (Max)	921.6 kbps	921.6 kbps
For Use With/Related Products	-	ZED-F9R
Frequency	1.227 GHz, 1.246 GHz, 1.602 GHz, 1.561 GHz, 1.207 GHz, 1.575 GHz	1.207 - 1.602 GHz
Frequency	-	1.2276 GHz
Frequency	-	1.575 GHz
Modulation or Protocol	GNSS, Galileo, BeiDou, GLONASS, GPS	GNSS, Galileo, BeiDou, GLONASS, GPS
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	54-SMD Module	54-SMD Module
Sensitivity	-160 dBm	-167 - -160 dBm
Supplied Contents	-	Board(s), Accessories, Cable(s)
Supplier Device Package	54-LGA (22x17)	54-LGA (22x17)
Type	-	GNSS
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	2.7 V	2.7 V

EVAL BOARD FOR ZED-F9R

Part	For Use With/Related Products	Type	Supplied Contents	Modulation or Protocol	Mounting Type	Data Interface	Data Rate (Max)	Frequency	Sensitivity	Supplier Device Package	Applications	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Frequency [Min]	Frequency [Max]
u-blox C102-F9R-0	ZED-F9R	GNSS	Accessories, Board(s), Cable(s)
u-blox ZED-F9R-00B				BeiDou, Galileo, GLONASS, GNSS, GPS	Surface Mount	I2C, SPI, UART, USB	921.6 kbps	1.207 GHz, 1.227 GHz, 1.246 GHz, 1.561 GHz, 1.575 GHz, 1.602 GHz	-160 dBm	54-LGA (22x17)	GPS	54-SMD Module	85 °C	-40 °C	2.7 V	3.6 V
u-blox ZED-F9P-02B				BeiDou, Galileo, GLONASS, GNSS, GPS	Surface Mount	I2C, SPI, UART, USB	921.6 kbps		-167 dBm	54-LGA (22x17)	General Purpose	54-SMD Module	85 °C	-40 °C	2.7 V	3.6 V	1.2276 GHz	1.575 GHz
u-blox ZED-F9R-01B				BeiDou, Galileo, GLONASS, GNSS, GPS	Surface Mount	I2C, SPI, UART, USB	921.6 kbps	1.207 GHz, 1.227 GHz, 1.246 GHz, 1.561 GHz, 1.575 GHz, 1.602 GHz	-160 dBm	54-LGA (22x17)	GPS	54-SMD Module	85 °C	-40 °C	2.7 V	3.6 V
