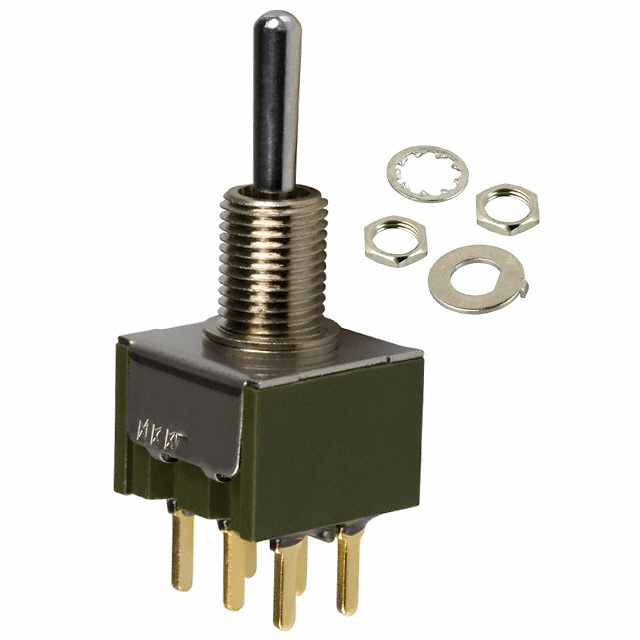

28V 28V TRIPLE-POLE/SINGLE-THROW STRAIGHT TOGGLE SWITCHES ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M2024SS1G03

Obsolete

NKK Switches

28V 28V TRIPLE-POLE/SINGLE-THROW STRAIGHT TOGGLE SWITCHES ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M2024SS1G03

Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	1/4-40
Circuit	SP3T
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Jumper needed to achieve triple throw
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-On-On
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

M2024SS Series

Part	Actuator Material	Voltage Rating - AC	Circuit	Voltage Rating - DC	Illumination	Panel Cutout Dimensions [diameter]	Switch Function	Electrical Life	Bushing Thread	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Features	Actuator Type	Mounting Type
NKK Switches M2024SS1W03	Brass Chrome Plated	125 V	SP3T	30 V	Non-Illuminated	6.5 mm	On-On-On	25000 Steps	1/4-40	PC Pin	-30 ░C	85 °C	3 A 6 A	Jumper needed to achieve triple throw	Standard Round
NKK Switches M2024SS1G03	Brass Chrome Plated	28 V	SP3T	28 V	Non-Illuminated	6.5 mm	On-On-On	50000 Cycles	1/4-40	PC Pin	-30 ░C	85 °C	0.4 VA	Jumper needed to achieve triple throw	Standard Round
NKK Switches M2024SS1G06	Brass Chrome Plated	28 V	SP3T	28 V	Non-Illuminated	6.5 mm	On-On-On	50000 Cycles	1/4-40	Wire Wrap	-30 ░C	85 °C	0.4 VA	Jumper needed to achieve triple throw	Standard Round
NKK Switches M2024SS4W01	Brass Chrome Plated	125 V	SP3T	30 V	Non-Illuminated	6.5 mm	On-On-On	25000 Steps	M6 x 0.75	Solder Lug	-30 ░C	85 °C	4 A 6 A	Jumper needed to achieve triple throw	Standard Round
NKK Switches M2024SS1G01	Brass Chrome Plated	28 V	SP3T	28 V	Non-Illuminated	6.5 mm	On-On-On	50000 Cycles	1/4-40	Solder Lug	-30 ░C	85 °C	0.4 VA	Jumper needed to achieve triple throw	Standard Round
NKK Switches M2024SS1W40	Brass Chrome Plated	125 V	SP3T	30 V	Non-Illuminated	6.5 mm	On-On-On	50000 Cycles	1/4-40	PC Pin	-30 ░C	85 °C	3 A 6 A	Jumper needed to achieve triple throw	Standard Round	Panel Mount Right Angle Vertical
NKK Switches M2024SS1G01/CUL	Brass Chrome Plated	28 V	SP3T	28 V	Non-Illuminated	6.5 mm	On-On-On	25000 Steps	1/4-40	Solder Lug	-30 ░C	85 °C	0.4 VA	Jumper needed to achieve triple throw	Standard Round
NKK Switches M2024SS1W01	Brass Chrome Plated	125 V	SP3T	30 V	Non-Illuminated	6.5 mm	On-On-On	25000 Steps	1/4-40	Solder Lug	-30 ░C	85 °C	3 A 6 A	Jumper needed to achieve triple throw	Standard Round
NKK Switches M2024SS2W13	Brass Chrome Plated	125 V	SP3T	30 V	Non-Illuminated	6.5 mm	On-On-On	25000 Steps	Unthreaded	PC Pin	-30 ░C	85 °C	3 A 6 A	Jumper needed to achieve triple throw	Standard Round	Through Hole
NKK Switches M2024SS2G45	Brass Chrome Plated	28 V	SP3T	28 V	Non-Illuminated	6.5 mm	On-On-On	50000 Cycles	Unthreaded	PC Pin	-30 ░C	85 °C	0.4 VA	Jumper needed to achieve triple throw	Standard Round	Right Angle Through Hole Vertical
