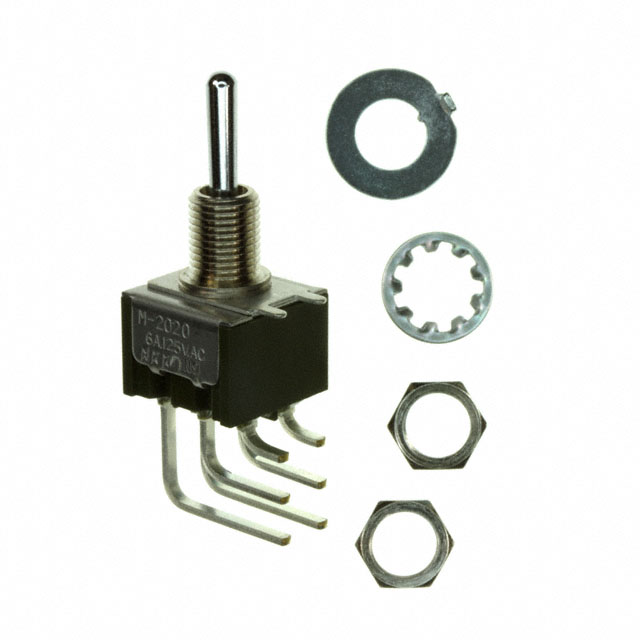

SWITCH TOGGLE SP3T 6A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM Series Bushing Mnt Mini Toggle Datasheet Datasheet

M2024SS1W40

Obsolete

NKK Switches

SWITCH TOGGLE SP3T 6A 125V

Deep-Dive with AI

DocumentsM Series Bushing Mnt Mini Toggle Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M2024SS1W40

Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	1/4-40
Circuit	SP3T
Current Rating (Amps)	3 A, 6 A
Electrical Life	50000 Cycles
Features	Jumper needed to achieve triple throw
Illumination	Non-Illuminated
Mounting Type	Panel Mount, Right Angle, Vertical
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-On-On
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

M2024SS Series

Part	Actuator Material	Voltage Rating - AC	Circuit	Voltage Rating - DC	Illumination	Panel Cutout Dimensions [diameter]	Switch Function	Electrical Life	Bushing Thread	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Features	Actuator Type	Mounting Type
NKK Switches M2024SS1W03	Brass Chrome Plated	125 V	SP3T	30 V	Non-Illuminated	6.5 mm	On-On-On	25000 Steps	1/4-40	PC Pin	-30 ░C	85 °C	3 A 6 A	Jumper needed to achieve triple throw	Standard Round
NKK Switches M2024SS1G03	Brass Chrome Plated	28 V	SP3T	28 V	Non-Illuminated	6.5 mm	On-On-On	50000 Cycles	1/4-40	PC Pin	-30 ░C	85 °C	0.4 VA	Jumper needed to achieve triple throw	Standard Round
NKK Switches M2024SS1G06	Brass Chrome Plated	28 V	SP3T	28 V	Non-Illuminated	6.5 mm	On-On-On	50000 Cycles	1/4-40	Wire Wrap	-30 ░C	85 °C	0.4 VA	Jumper needed to achieve triple throw	Standard Round
NKK Switches M2024SS4W01	Brass Chrome Plated	125 V	SP3T	30 V	Non-Illuminated	6.5 mm	On-On-On	25000 Steps	M6 x 0.75	Solder Lug	-30 ░C	85 °C	4 A 6 A	Jumper needed to achieve triple throw	Standard Round
NKK Switches M2024SS1G01	Brass Chrome Plated	28 V	SP3T	28 V	Non-Illuminated	6.5 mm	On-On-On	50000 Cycles	1/4-40	Solder Lug	-30 ░C	85 °C	0.4 VA	Jumper needed to achieve triple throw	Standard Round
NKK Switches M2024SS1W40	Brass Chrome Plated	125 V	SP3T	30 V	Non-Illuminated	6.5 mm	On-On-On	50000 Cycles	1/4-40	PC Pin	-30 ░C	85 °C	3 A 6 A	Jumper needed to achieve triple throw	Standard Round	Panel Mount Right Angle Vertical
NKK Switches M2024SS1G01/CUL	Brass Chrome Plated	28 V	SP3T	28 V	Non-Illuminated	6.5 mm	On-On-On	25000 Steps	1/4-40	Solder Lug	-30 ░C	85 °C	0.4 VA	Jumper needed to achieve triple throw	Standard Round
NKK Switches M2024SS1W01	Brass Chrome Plated	125 V	SP3T	30 V	Non-Illuminated	6.5 mm	On-On-On	25000 Steps	1/4-40	Solder Lug	-30 ░C	85 °C	3 A 6 A	Jumper needed to achieve triple throw	Standard Round
NKK Switches M2024SS2W13	Brass Chrome Plated	125 V	SP3T	30 V	Non-Illuminated	6.5 mm	On-On-On	25000 Steps	Unthreaded	PC Pin	-30 ░C	85 °C	3 A 6 A	Jumper needed to achieve triple throw	Standard Round	Through Hole
NKK Switches M2024SS2G45	Brass Chrome Plated	28 V	SP3T	28 V	Non-Illuminated	6.5 mm	On-On-On	50000 Cycles	Unthreaded	PC Pin	-30 ░C	85 °C	0.4 VA	Jumper needed to achieve triple throw	Standard Round	Right Angle Through Hole Vertical
