27MP00250

Active

Essentra Access Solutions

PCB SUPPORT POST, .156/.156 HOLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

27MP00250

Active

Essentra Access Solutions

PCB SUPPORT POST, .156/.156 HOLE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	27MP00250

Between Board Height	6.35 mm
Between Board Height	0.25 in
Between Board Height	0.25 in
Holding Type	Snap Lock
Length - Overall [x]	0.53 in
Length - Overall [x]	13.46 mm
Material	Nylon
Mounting Hole Diameter [diameter]	3.96 mm
Mounting Hole Diameter [diameter]	0.15625 in
Mounting Hole Diameter [diameter]	0.156 in
Mounting Panel Thickness	0.063 in
Mounting Panel Thickness	1.59 mm
Mounting Type	Snap Lock
Support Hole Diameter [diameter]	0.156 in
Support Hole Diameter [diameter]	3.96 mm
Support Panel Thickness	1.59 mm
Support Panel Thickness	0.063 in

27MP Series

Part	Between Board Height [z]	Between Board Height [z]	Material	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Mounting Panel Thickness	Mounting Panel Thickness	Holding Type	Length - Overall [x]	Length - Overall [x]	Support Panel Thickness	Support Panel Thickness	Mounting Type	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Between Board Height	Between Board Height	Length - Overall	Length - Overall	Between Board Height
Essentra Access Solutions 27MP01950	1.95 "	49.53 mm	Nylon	0.156 in	3.96 mm	0.063 in	1.59 mm	Snap Lock	2.23 in	56.64 mm	1.59 mm	0.063 in	Snap Lock	3.96 mm	0.15625 in	0.156 in
Essentra Access Solutions 27MP00437S			Nylon	0.156 in	3.96 mm	0.063 in	1.59 mm	Snap Lock	0.717 "	18.21 mm	1.59 mm	0.063 in	Snap Lock	3.96 mm	0.15625 in	0.156 in	0.437 in	11.1 mm
Essentra Access Solutions 27MP00500			Nylon	0.156 in	3.96 mm	0.063 in	1.59 mm	Snap Lock	0.78 in	19.81 mm	1.59 mm	0.063 in	Snap Lock	3.96 mm	0.15625 in	0.156 in	0.5 in	12.7 mm
Essentra Access Solutions 27MP00625			Nylon	0.156 in	3.96 mm	0.063 in	1.59 mm	Snap Lock			1.59 mm	0.063 in	Snap Lock	3.96 mm	0.15625 in	0.156 in	0.625 in	15.88 mm	0.905 in	22.99 mm	0.625 in
Essentra Access Solutions 27MP00375			Nylon	0.156 in	3.96 mm	0.063 in	1.59 mm	Snap Lock	0.655 in	16.64 mm	1.59 mm	0.063 in	Snap Lock	3.96 mm	0.15625 in	0.156 in	0.375 in	9.53 mm			0.375 in
Essentra Access Solutions 27MP00197			Nylon	0.156 in	3.96 mm	0.063 in	1.59 mm	Snap Lock	0.477 in	12.12 mm	1.59 mm	0.063 in	Snap Lock	3.96 mm	0.15625 in	0.156 in	0.197 in	5 mm
Essentra Access Solutions 27MP00437			Nylon	0.156 in	3.96 mm	0.063 in	1.59 mm	Snap Lock	0.717 "	18.21 mm	1.59 mm	0.063 in	Snap Lock	3.96 mm	0.15625 in	0.156 in	0.437 in	11.1 mm
Essentra Access Solutions 27MP00250			Nylon	0.156 in	3.96 mm	0.063 in	1.59 mm	Snap Lock	0.53 in	13.46 mm	1.59 mm	0.063 in	Snap Lock	3.96 mm	0.15625 in	0.156 in	0.25 in	6.35 mm			0.25 in
Essentra Access Solutions 27MP00312			Nylon	0.156 in	3.96 mm	0.063 in	1.59 mm	Snap Lock	0.592 in	15.04 mm	1.59 mm	0.063 in	Snap Lock	3.96 mm	0.15625 in	0.156 in	0.312 in	7.93 mm
Essentra Access Solutions 27MP00125			Nylon	0.156 in	3.96 mm	0.063 in	1.59 mm	Snap Lock	0.405 in		1.59 mm	0.063 in	Snap Lock	3.96 mm	0.15625 in	0.156 in	0.125 in	3.18 mm		10.29 mm	0.125 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.26
		5	$ 0.22
		10	$ 0.18
		25	$ 0.17
		50	$ 0.16
		100	$ 0.15
		250	$ 0.14
		500	$ 0.13
		1000	$ 0.12

Description

General part information

27MP Series

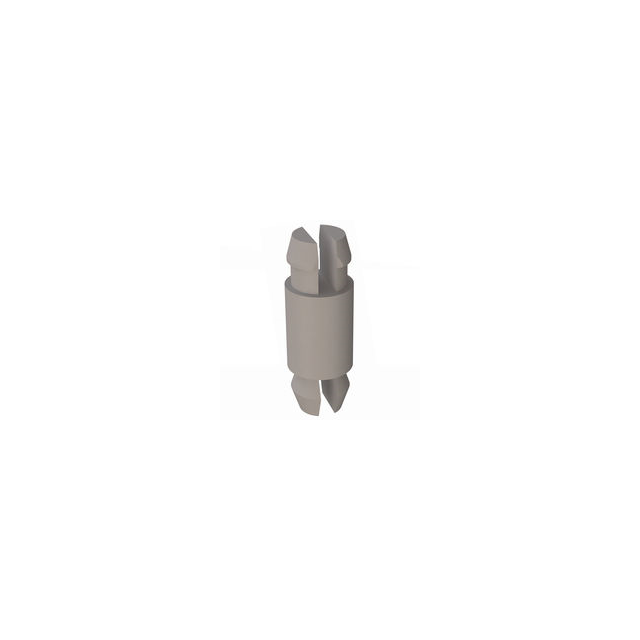

Board Support Snap Lock / Snap Lock Nylon 0.250" (6.35mm) 1/4"
